Product series
MODUS SPMS
Square downlight with edge-lid technology
MODUS SPMS
Standard price from:
On request
Body:
White painted (RAL 9003) metal sheet
LED:
Mid Power LED
CRI 80 (CRI 90 on request)
3...warm white 3000K
4...cold white 4000K
Wiring:

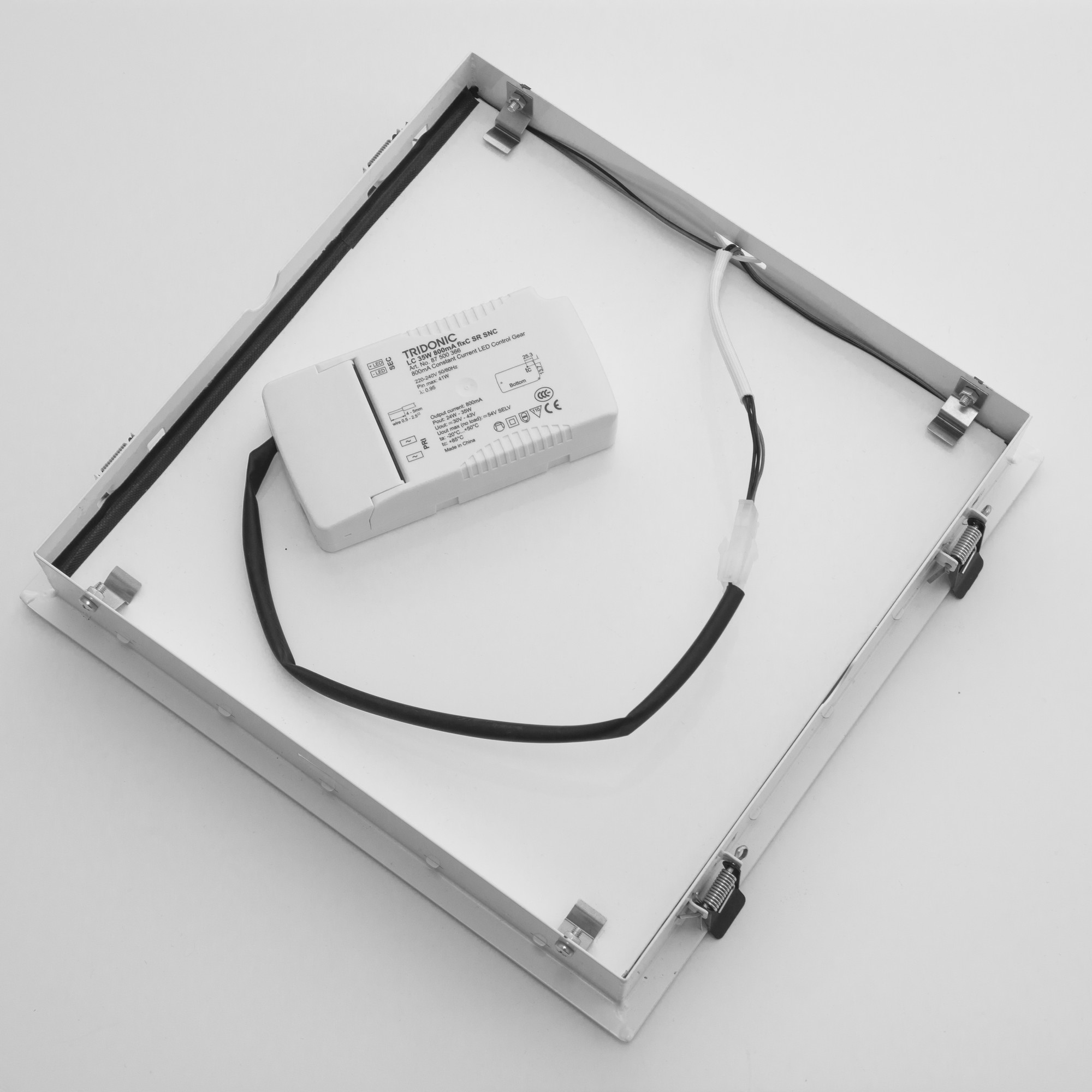

LED driver (constant current)
ND – not dimmable (standard)
DALI – digital dimmable DALI
DIM - analogue dimmable 1-10V
Application:

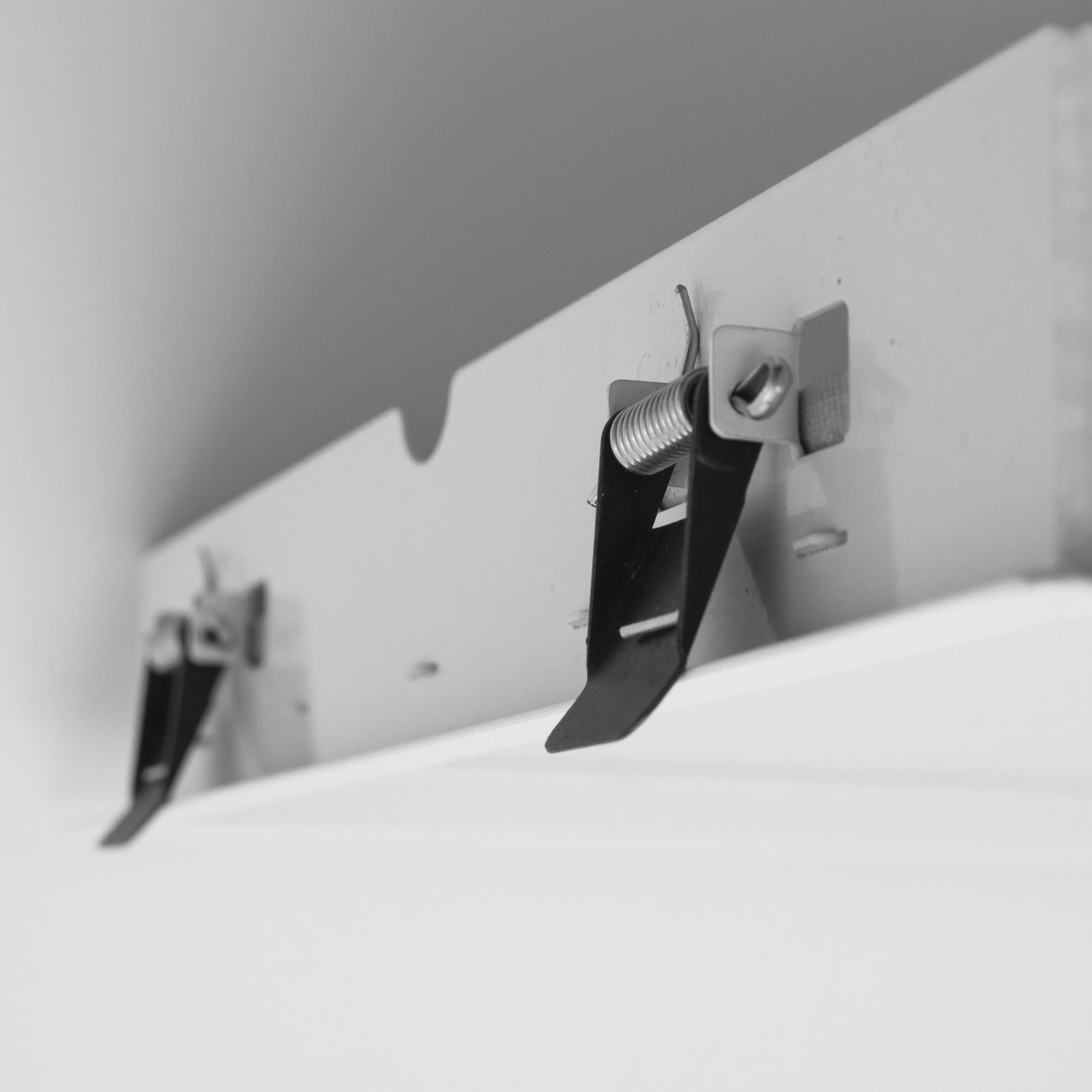

Recessed installation into gypsum or raster ceiling
| Body material: | White painted steel | Mounting method: | Built-in | Protection class: | II | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 |
| Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Optical system: | KN nanoprizmatic cover | Made in Czech republic: | Yes | Without Chinese components: | Ano | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
System power (W)
Product name
System power (W)
Color temperature (K)
Length (mm)
SPMS1000KN4/300/ND
System power (W): 12
Color temperature (K): 4000
Length (mm): 296
SPMS1000KN5/300/ND
System power (W): 12
Color temperature (K): 5700
Length (mm): 296
SPMS2000KN3/300/DALI
System power (W): 17
Color temperature (K): 3000
Length (mm): 296
SPMS2000KN3/300/ND
System power (W): 17
Color temperature (K): 3000
Length (mm): 296
SPMS2000KN4/300/DALI
System power (W): 17
Color temperature (K): 4000
Length (mm): 296
SPMS2000KN4/300/ND
System power (W): 17
Color temperature (K): 4000
Length (mm): 296
SPMS3000KN3/300/DALI
System power (W): 23
Color temperature (K): 3000
Length (mm): 296
SPMS3000KN3/300/DIM
System power (W): 23
Color temperature (K): 3000
Length (mm): 296
SPMS3000KN3/300/ND
System power (W): 23
Color temperature (K): 3000
Length (mm): 296
SPMS3000KN4/300/DALI
System power (W): 23
Color temperature (K): 4000
Length (mm): 296
SPMS3000KN4/300/DIM
System power (W): 23
Color temperature (K): 4000
Length (mm): 296
SPMS3000KN4/300/ND
System power (W): 23
Color temperature (K): 4000
Length (mm): 296
SPMS3000KN5/300/DALI
System power (W): 23
Color temperature (K): 5700
Length (mm): 296
SPMS3000KN5/300/ND
System power (W): 23
Color temperature (K): 5700
Length (mm): 296
SPMS3000KN5/300/ND/EU
System power (W): 23
Color temperature (K): 5700
Length (mm): 296
Product page - PDF
CE declaration

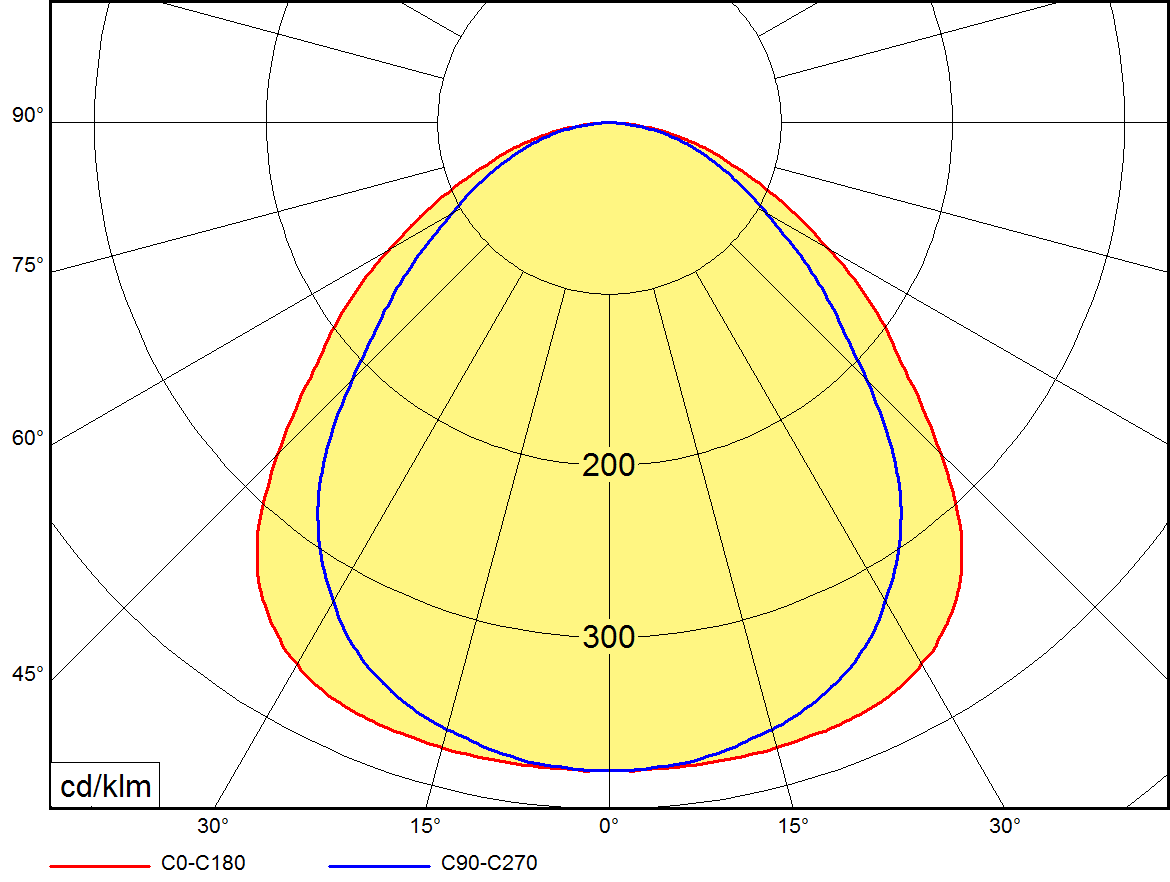

LDT files
SPMS.PNGProjekty realizované se svítidly MODUS:
