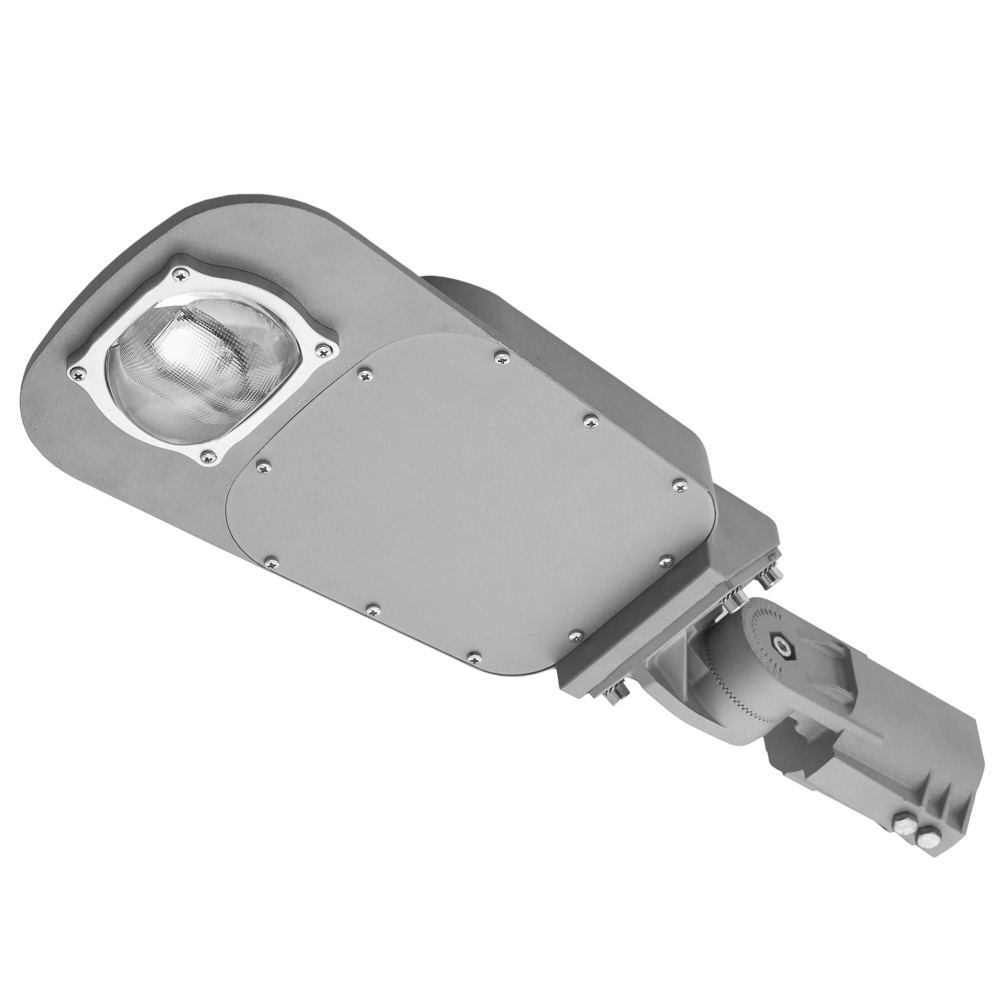

MODUS STL4000, 750, AL body, glass optic

Street lighting with COB technology

Code: STL4000C/ND
EAN: 8595073718270

Vlastnosti svítidla

Product category:Luminaire for streets and placesDegree of protection (IP):IP65
Mounting method:Post-top/side-entryColor housing:Grey
Surface protection:Powder coatingMaterial housing:Aluminium
With connection cable:Yes

Světelný zdroj

Lamp type:LED not exchangeableEffective luminous flux (lm):4000
System power (W):27Luminaire efficacy (lm/W):148
Color temperature (K):5000Color rendering index CRI:70-79
Rated life time L70/B50 (h):100000With lamp:Yes
Energy efficiency class of the built-in lamp:A++, A+, A (LED)

Optický systém

Optical system:STL CMaterial cover:Glass transparent

Rozměry

Length (mm):431Width (mm):159
Height/depth (mm):74Cable length (m):0,2
Suitable for top end size (mm):60Size version:S
Weight (kg):4,8

Elektrické vlastnosti

Protection class:IIVoltage type:AC
Type of control gear:LED operating device current-controlledNumber of poles:1
Nominal voltage (V):220...240Control gear included:Yes
Type of wiring:EndingNo dim function:Yes
LoadingLoading

Filters

Effective luminous flux (lm)

4000
8800

System power (W)

27
60
Product name
STL4000C/4DIM
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL C
STL4000C/4DIM/ASTRO
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL C
STL4000C/ND
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL C
STL4000C3/4DIM
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL C
STL4000C3/ND
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL C
STL4000P/4DIM
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL P
STL4000P/ND
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL P
STL4000P/ND/S129
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL P
STL4000P3/ND
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL P
STL8000C/4DIM
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5000
Optical system: STL C
STL8000C/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5000
Optical system: STL C
STL8000C/ND/5019
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5000
Optical system: STL C
STL8000C3/4DIM
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: STL C
STL8000C3/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: STL C
STL8000P/ND
Effective luminous flux (lm): 8800
System power (W): 60
Color temperature (K): 5000
Optical system: STL P
STL8000P3/4DIM
Effective luminous flux (lm): 8800
System power (W): 60
Color temperature (K): 3000
Optical system: STL P
STL8000P3/ND
Effective luminous flux (lm): 8800
System power (W): 60
Color temperature (K): 3000
Optical system: STL P
