MODUS TIP
Industrial luminaire with IP23
Standard price from:
On request

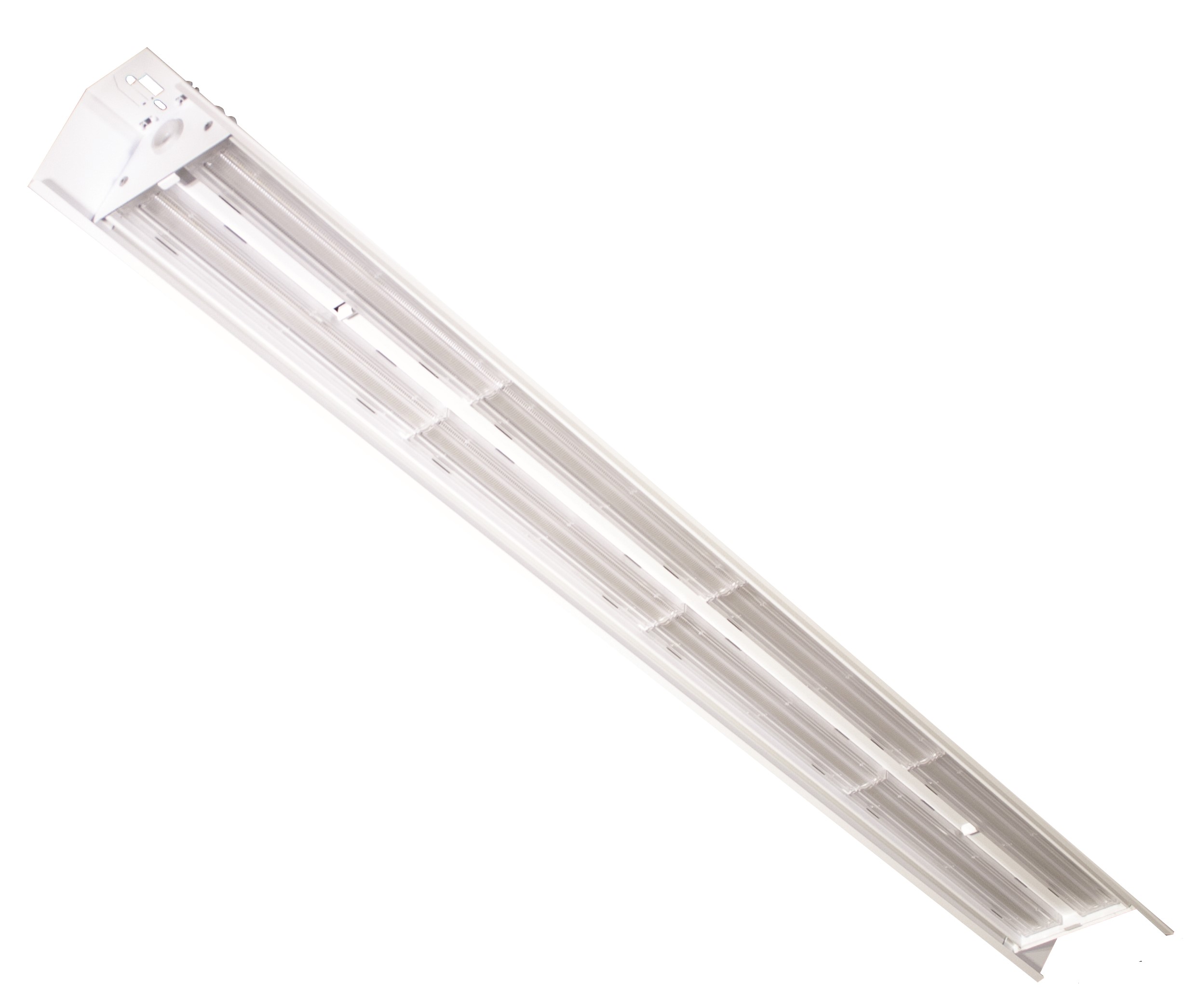

Linear luminaire for use in industrial places - with IP23 protection.

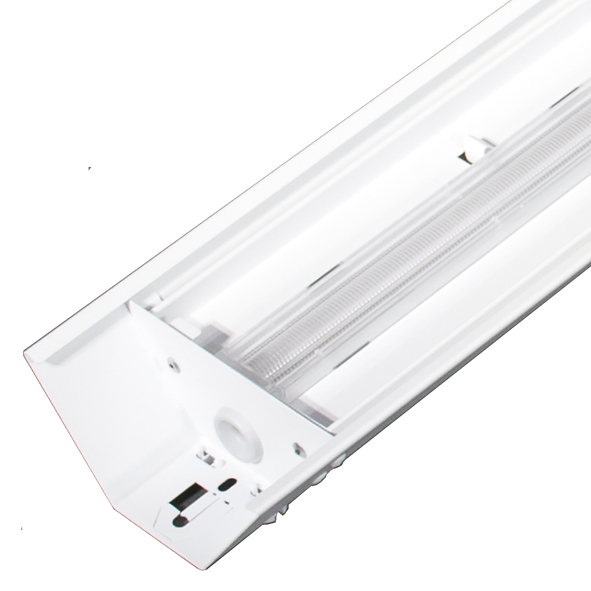

Metal body has integrated holder for pendant installation on wire.

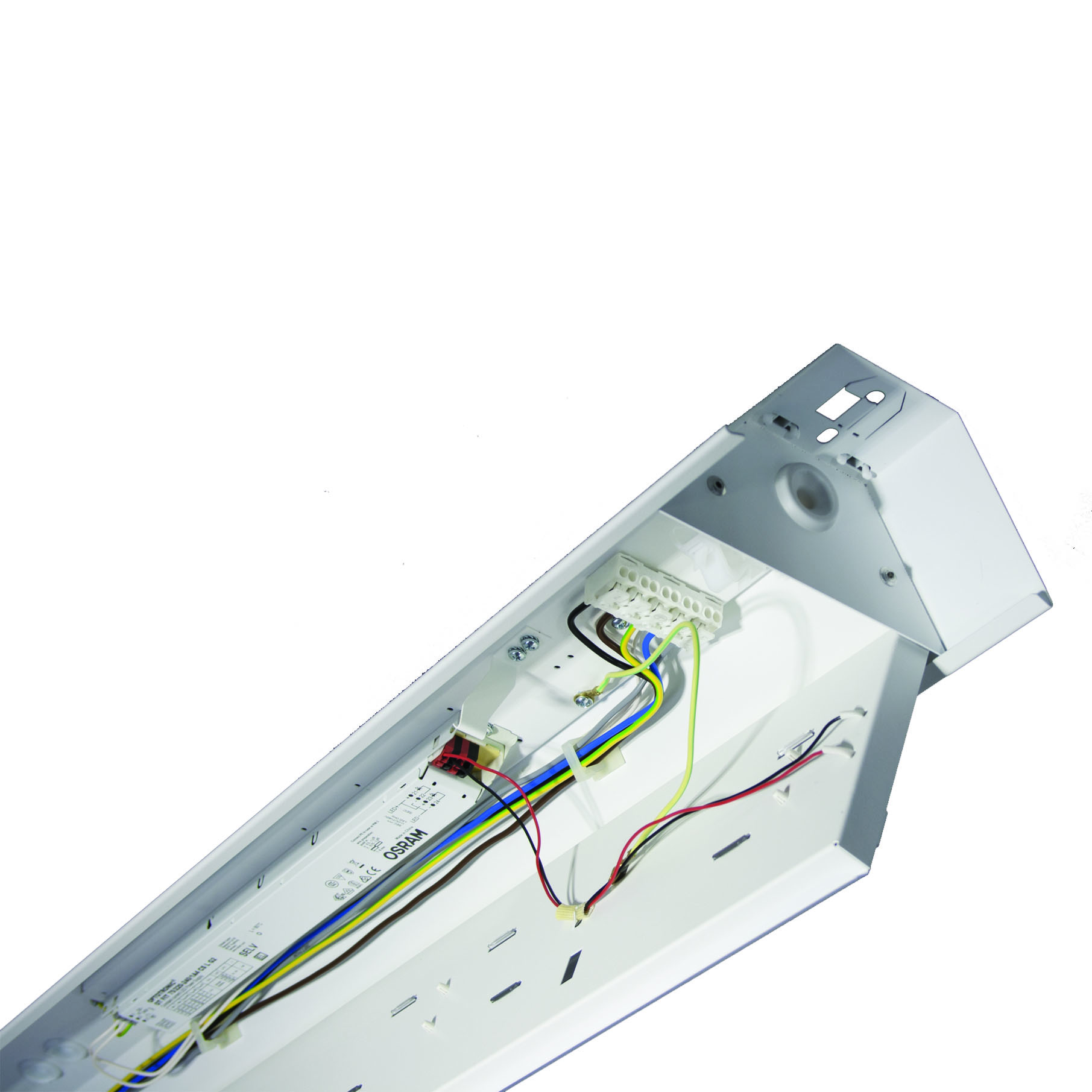

Electical cable entry is possible from back side and also on both short sides - standartly wired for throughtwirring use.

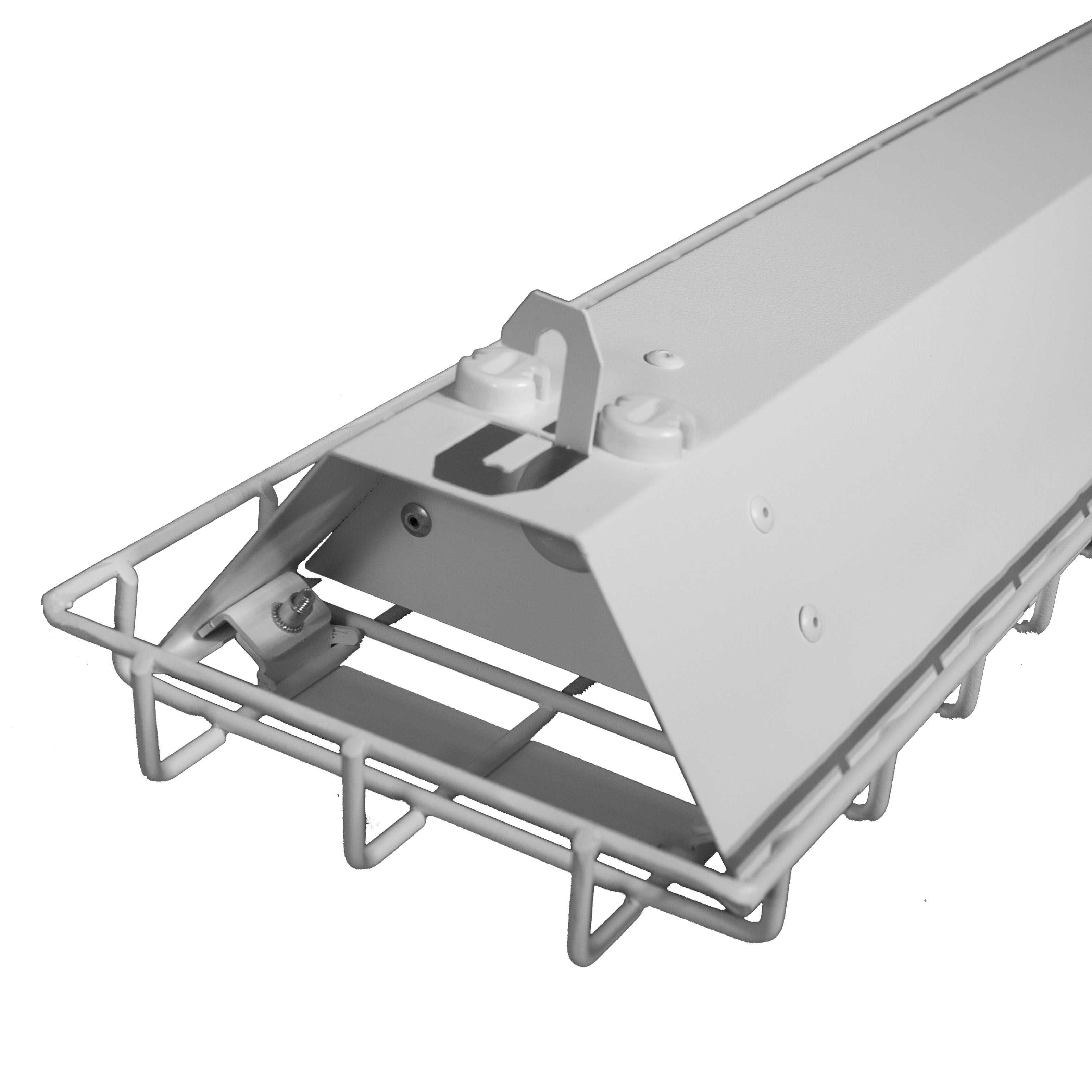

Luminaire can be installed together with protection grid - ideal for sporthalls...
| Size version: | L 1500 mm M 1200 mm | Body material: | White painted steel | Mounting method: | Pendant, Surface mounting | Protection class: | I | With movement sensor: | No, Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Suitable for light line configuration: | Yes | Light outlet: | Direct | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP23 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Product category: | Batten luminaire | Optical system: | CEW Extra wide 90° CRA Retail asymetric optics CHR High rack CW Wide | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Length (mm)
TIP10000L4CW1/DALI
Effective luminous flux (lm): 10000
System power (W): 69
Length (mm): 1584
TIP10000L4CW1/ND
Effective luminous flux (lm): 10000
System power (W): 69
Length (mm): 1584
TIP10000L4CW2/ND
Effective luminous flux (lm): 10500
System power (W): 70
Length (mm): 1584
TIP12000L4CN2/ND
Effective luminous flux (lm): 11500
System power (W): 82
Length (mm): 1584
TIP12000L4CW2/ND
Effective luminous flux (lm): 12200
System power (W): 82
Length (mm): 1584
TIP12000M3CW2/ND
Effective luminous flux (lm): 11000
System power (W): 74
Length (mm): 1584
TIP12000M4CEW2/ND
Effective luminous flux (lm): 11000
System power (W): 74
Length (mm): 1584
TIP12000M4CN2/ND
Effective luminous flux (lm): 10400
System power (W): 74
Length (mm): 1284
TIP12000M4CW2/ND
Effective luminous flux (lm): 11000
System power (W): 74
Length (mm): 1284
TIP12000M6CW2/ND
Effective luminous flux (lm): 11000
System power (W): 74
TIP14000L4CN2/ND
Effective luminous flux (lm): 13900
System power (W): 99
Length (mm): 1584
TIP14000L4CW2/ND
Effective luminous flux (lm): 13900
System power (W): 99
Length (mm): 1584
TIP16000L3CW2/ND
Effective luminous flux (lm): 16100
System power (W): 114
Length (mm): 1584
TIP16000L4CHR2/ND/P
Effective luminous flux (lm): 16100
System power (W): 114
Length (mm): 1584
TIP16000L4CN2/DALI
Effective luminous flux (lm): 15300
System power (W): 114
Length (mm): 1584
TIP16000L4CN2/ND
Effective luminous flux (lm): 15300
System power (W): 114
Length (mm): 1584
TIP16000L4CW2/DALI
Effective luminous flux (lm): 16100
System power (W): 114
Length (mm): 1584
TIP16000L4CW2/ND
Effective luminous flux (lm): 16100
System power (W): 114
Length (mm): 1584
TIP16000L4CW2/ND/P
Effective luminous flux (lm): 16100
System power (W): 114
Length (mm): 1584
TIP16000L6CW2/ND
Effective luminous flux (lm): 16100
System power (W): 114
Length (mm): 1584
TIP6000M3CW1/ND
Effective luminous flux (lm): 5600
System power (W): 38
Length (mm): 1284
TIP6000M4CW1/DALI
Effective luminous flux (lm): 5600
System power (W): 38
Length (mm): 1284
TIP6000M4CW1/ND
Effective luminous flux (lm): 5600
System power (W): 38
Length (mm): 1284
TIP8000L3CW1/ND
Effective luminous flux (lm): 8200
System power (W): 57
Length (mm): 1584
TIP8000L4CN1/DALI
Effective luminous flux (lm): 7800
System power (W): 57
Length (mm): 1584
TIP8000L4CN1/ND
Effective luminous flux (lm): 7800
System power (W): 57
Length (mm): 1584
TIP8000L4CW1/DALI
Effective luminous flux (lm): 8200
System power (W): 57
Length (mm): 1584
TIP8000L4CW1/DALI/2F5E/S76
Effective luminous flux (lm): 8200
System power (W): 57
Length (mm): 1584
TIP8000L4CW1/ND
Effective luminous flux (lm): 8200
System power (W): 57
Length (mm): 1584
