Product series New
MODUS TN
High-efficiency linear LED luminaire
Standard price from:
On request

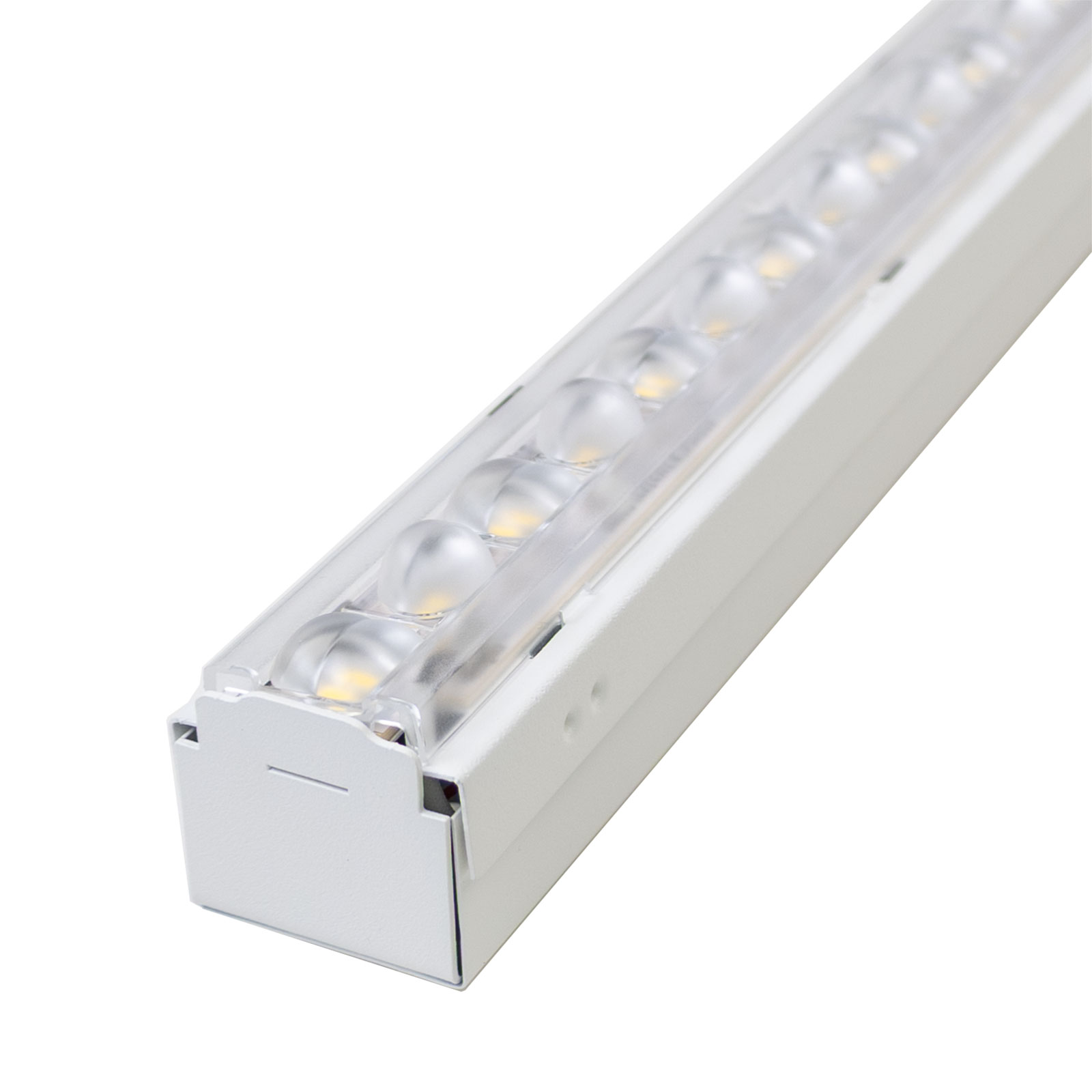

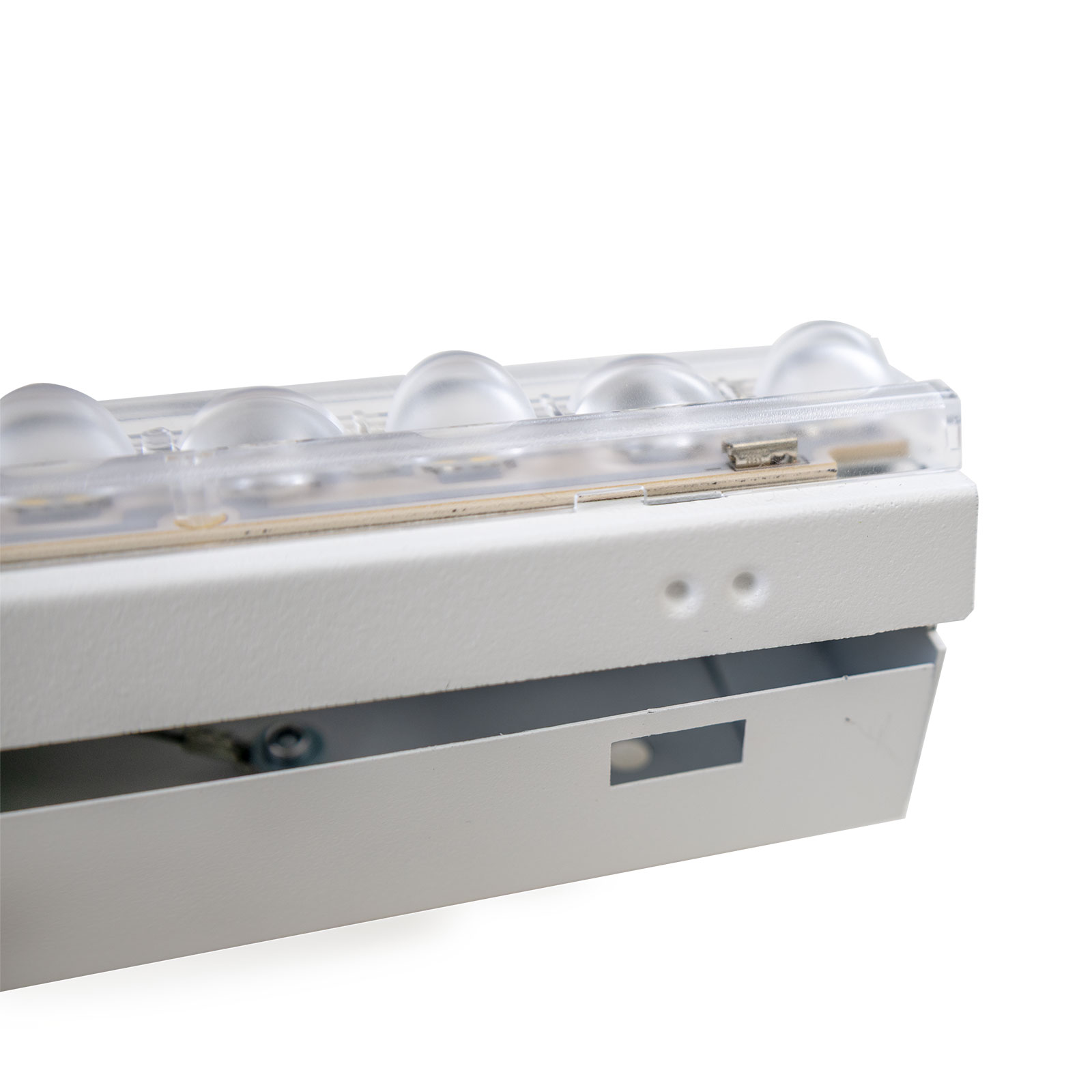

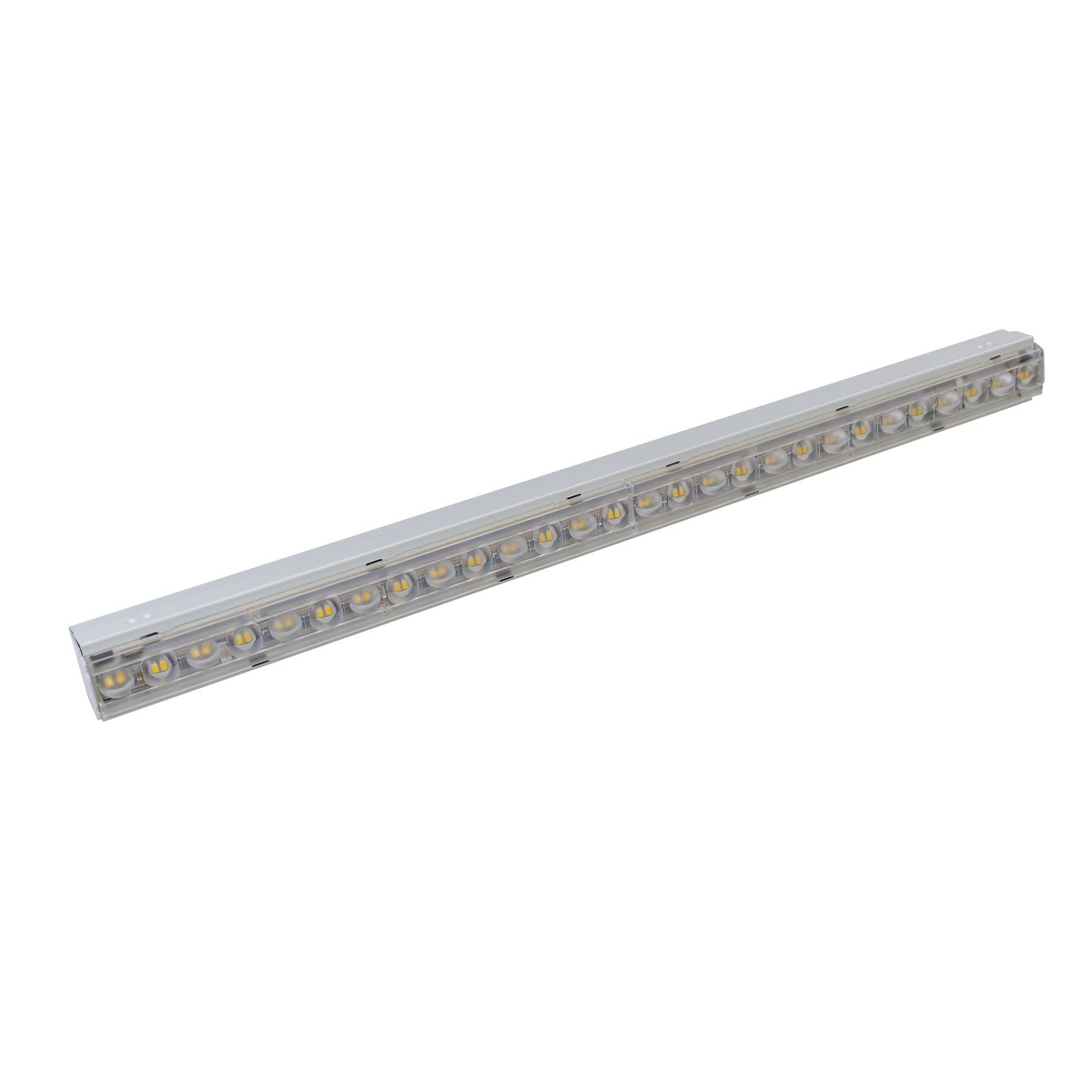

TN is a high-efficiency linear LED luminaire designed for industrial, technical, and commercial applications.
The powder-coated steel housing in RAL 9003 ensures high mechanical durability.
The luminaire is available with various optical systems, including wide beam, deep beam, and double asymmetric optics.
Both suspended and surface-mounted installation are possible, with 1–10 V or DALI dimming options.
Typical applications include production halls, warehouses, parking facilities, and technical areas.
| Body material: | White painted steel | Mounting method: | Surface mounting, Suspended | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L70/B50 (h): | 100000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Product category: | Batten luminaire | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 | MODUS SMART: | Bluetooth Bluetooth |
