MODUS TS SOLO

Aluminium luminaire with high effectivity

MODUS TS SOLO
přisazené asymetrické.PNG
závěesné asymetrické.PNG
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

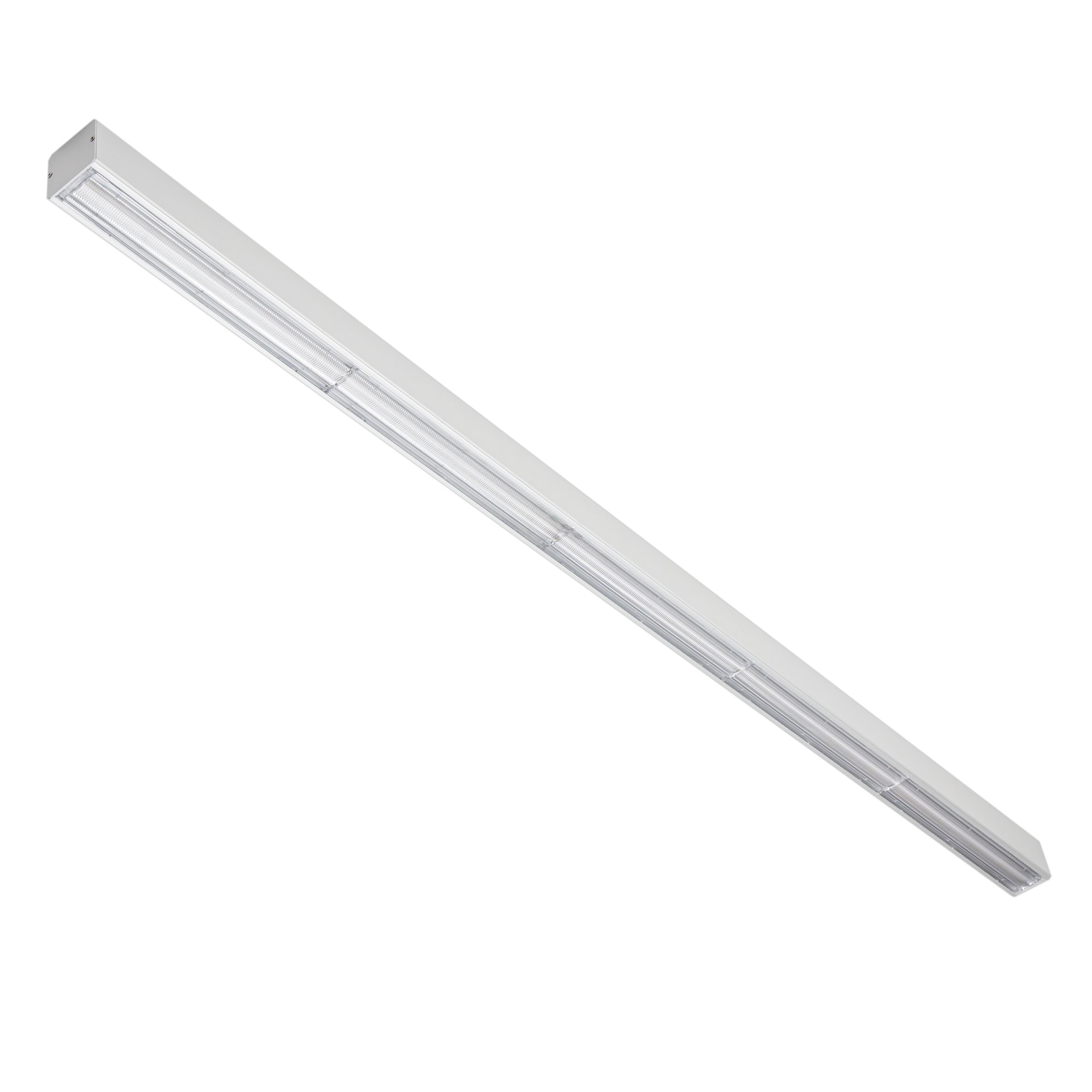

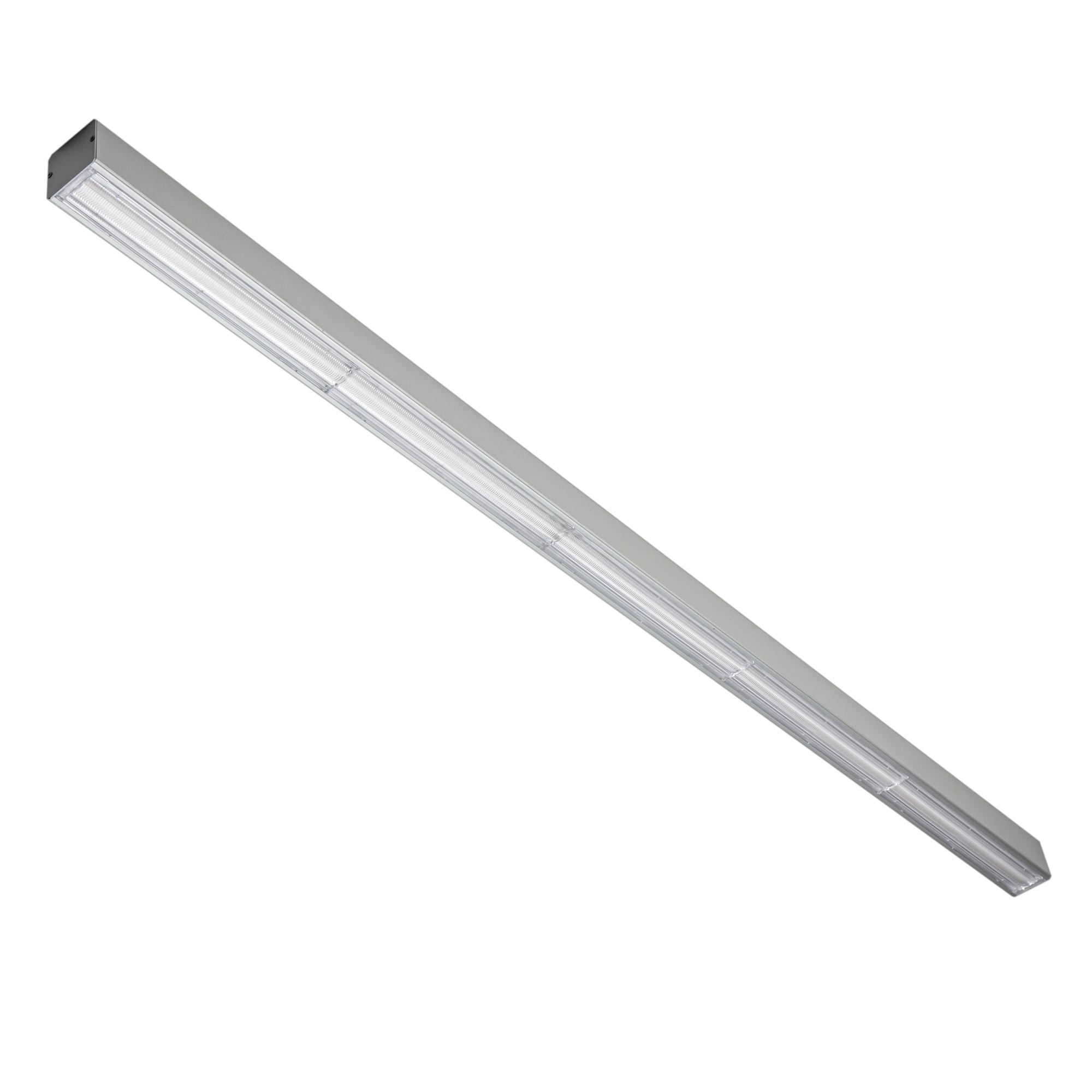

Group of luminaire with aluminium body and high effectivity a wide offer of optical system.

In offer we have two models:

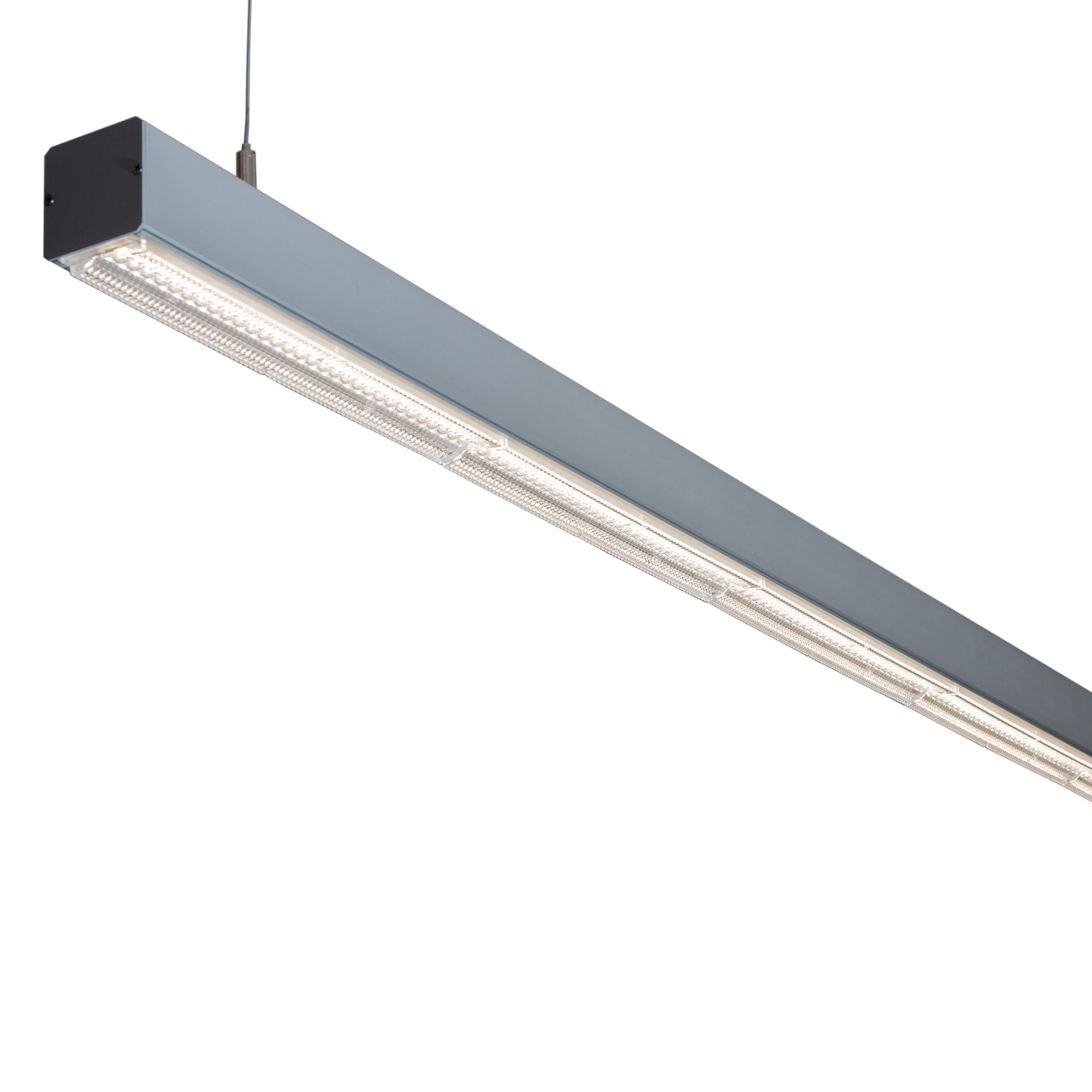

TS - for pendant installation (pendand wire set included)

TSP - for surface installation



Size version:L
1500 mm
M
1200 mm
S
600 mm
XM
800 mm
Body material:Eloxal aluminium profile
Mounting method:Surface mounting, Suspended, Surface mounting asymmetric, Pendant asymmetricProtection class:I
Type of control gear:ND
non-dimm
DALI
DALI dimm
Color rendering index CRI:80-89
Light source type:LEDLight outlet:Direct
Nominal voltage (V):220...240Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700Rated lifetime L80/B50 (h):80000
Dimming DALI:YesProduct category:Batten luminaire
Optical system:CRA
Retail asymetric optics
CHR
High rack
CW
Wide
CN
Narrow beam
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1900
9700

System power (W)

14
65
Product name
TS10000L4CW/E/ND
Effective luminous flux (lm): 9700
System power (W): 65
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS2000L4KN/B/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS2000L4KN/E/DALI
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS2000S4CW/E/ND
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 4000
Length (mm): 576
Suitable for suspended mounting: Yes
TS2000S4KO/C/ND
Effective luminous flux (lm): 1900
System power (W): 16
Color temperature (K): 4000
Length (mm): 576
Suitable for suspended mounting: Yes
TS3000M3KO/E/ND
Effective luminous flux (lm): 2800
System power (W): 22
Color temperature (K): 3000
Length (mm): 1140
Suitable for surface mounting: Yes
TS3000XM3CW/E/ND
Effective luminous flux (lm): 3100
System power (W): 21
Color temperature (K): 3000
Length (mm): 858
Suitable for suspended mounting: Yes
TS3000XM4CEN/E/ND
Effective luminous flux (lm): 2800
System power (W): 21
Color temperature (K): 4000
Length (mm): 858
Suitable for suspended mounting: Yes
TS3000XM4CRA/E/ND
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Length (mm): 858
Suitable for suspended mounting: Yes
TS3000XM4CW/E/ND
Effective luminous flux (lm): 3100
System power (W): 21
Color temperature (K): 4000
Length (mm): 858
Suitable for suspended mounting: Yes
TS3000XM4KN/C/ND
Effective luminous flux (lm): 2800
System power (W): 21
Color temperature (K): 4000
Length (mm): 858
Suitable for suspended mounting: Yes
TS4000L3CW/C/ND
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 3000
Length (mm): 1425
Suitable for suspended mounting: Yes
TS4000L3CW/E/ND
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 3000
Length (mm): 1425
Suitable for suspended mounting: Yes
TS4000L3KO/E/DALI
Effective luminous flux (lm): 2800
System power (W): 22
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4CN/E/ND
Effective luminous flux (lm): 3200
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4CN/E/NDNZ
Effective luminous flux (lm): 3200
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4CW/C/DALI
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4CW/C/ND
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4CW/E/DALI
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4CW/E/ND
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4KN/E/DALI
Effective luminous flux (lm): 2900
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4KO/C/ND
Effective luminous flux (lm): 2800
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000L4KO/E/ND
Effective luminous flux (lm): 2800
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000M3CW/B/DALI
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 3000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS4000M3CW/C/DALI
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 3000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS4000M3CW/E/ND
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 3000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS4000M3KN/B/ND
Effective luminous flux (lm): 3700
System power (W): 30
Color temperature (K): 3000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS4000M3KN/B/ND/PIR
Effective luminous flux (lm): 3700
System power (W): 30
Color temperature (K): 3000
Length (mm): 1143
Suitable for suspended mounting: Yes
TS4000M3KN/C/ND
Effective luminous flux (lm): 3700
System power (W): 30
Color temperature (K): 3000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS4000M3KO/B/ND
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 3000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS4000M3KO/C/ND
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 3000
Length (mm): 1143
Suitable for suspended mounting: Yes
TS4000M3KO/E/ND
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS4000M4CRA/E/ND
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Length (mm): 1143
Suitable for suspended mounting: Yes
TS4000M4CW/C/DALI
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS4000M4CW/C/ND
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS4000M4CW/E/ND
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Length (mm): 1140
Suitable for suspended mounting: Yes
TS6000L3CN/B/ND
Effective luminous flux (lm): 5200
System power (W): 39
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L3CW/B/DALI
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 3000
Length (mm): 1425
Suitable for suspended mounting: Yes
TS6000L3CW/B/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 3000
Length (mm): 1425
Suitable for suspended mounting: Yes
TS6000L3CW/E/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L3KN/B/ND
Effective luminous flux (lm): 4600
System power (W): 39
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L3KO/B/DALI
Effective luminous flux (lm): 4600
System power (W): 39
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L3KO/B/ND
Effective luminous flux (lm): 4600
System power (W): 39
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L3KO/E/ND
Effective luminous flux (lm): 4600
System power (W): 39
Color temperature (K): 3000
Length (mm): 1425
Suitable for suspended mounting: Yes
TS6000L4CEN/E/ND
Effective luminous flux (lm): 5200
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L4CN/C/ND
Effective luminous flux (lm): 5200
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L4CN/E/ND
Effective luminous flux (lm): 5200
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L4CN/E/NDNZ
Effective luminous flux (lm): 5200
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L4CRA/E/ND
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 1425
Suitable for suspended mounting: Yes
TS6000L4CW/E/DALI
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L4CW/E/DALIBTC
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L4CW/E/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS6000L5CRA/E/ND
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 5700
Length (mm): 1425
Suitable for suspended mounting: Yes
TS8000L3KO/B/ND
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L3KO/E/DALI
Effective luminous flux (lm): 6300
System power (W): 59
Color temperature (K): 3000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4CHR/C/DALI
Effective luminous flux (lm): 7000
System power (W): 59
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4CN/E/ND
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4CW/C/DALI
Effective luminous flux (lm): 7700
System power (W): 59
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4CW/C/ND
Effective luminous flux (lm): 7700
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4CW/E/DALI
Effective luminous flux (lm): 7700
System power (W): 59
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4CW/E/ND
Effective luminous flux (lm): 7700
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4KN/E/DALI
Effective luminous flux (lm): 6700
System power (W): 59
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4KN/E/ND
Effective luminous flux (lm): 6700
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4KO/B/ND
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TS8000L4KO/E/ND
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 4000
Length (mm): 1425
Suitable for suspended mounting: Yes
TSP10000L4KN/7024/ND
Effective luminous flux (lm): 8400
System power (W): 65
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP2000L4KN/B/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP2000L4KN/E/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP2000S3CW/C/ND
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 3000
Length (mm): 576
Suitable for surface mounting: Yes
TSP2000S4CW/E/ND
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 4000
Length (mm): 576
Suitable for surface mounting: Yes
TSP2000S4KN/E/DALI
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Length (mm): 576
Suitable for surface mounting: Yes
TSP2000S5CN/C/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 5700
Length (mm): 576
Suitable for surface mounting: Yes
TSP3000M3CW/9016/ND
Effective luminous flux (lm): 3000
System power (W): 22
Color temperature (K): 3000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP3000M4KN/E/DALI
Effective luminous flux (lm): 3000
System power (W): 22
Color temperature (K): 4000
Length (mm): 1140
Suitable for surface mounting: Yes
TSP3000XM3CN/B/ND
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 3000
Length (mm): 858
Suitable for surface mounting: Yes
TSP3000XM4CN/E/DALI
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Length (mm): 858
Suitable for surface mounting: Yes
TSP3000XM4KO/E/ND
Effective luminous flux (lm): 2800
System power (W): 21
Color temperature (K): 4000
Length (mm): 858
Suitable for surface mounting: Yes
TSP3000XM5CHR/C/ND
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 5700
Length (mm): 858
Suitable for surface mounting: Yes
TSP3000XM5CHR/E/ND
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 5700
Length (mm): 858
Suitable for surface mounting: Yes
TSP3000XM5CN/C/ND
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 5700
Length (mm): 858
Suitable for surface mounting: Yes
TSP4000L3CW/B/ND
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 3000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP4000L3CW/E/ND
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 3000
Length (mm): 1425
Suitable for surface mounting: Yes
TSP4000L4CHR/E/ND
Effective luminous flux (lm): 3100
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP4000L4CN/E/ND
Effective luminous flux (lm): 3200
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP4000L4CW/E/ND
Effective luminous flux (lm): 3500
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP4000L4KN/E/ND
Effective luminous flux (lm): 2900
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP4000L4KO/E/ND
Effective luminous flux (lm): 2800
System power (W): 22
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP4000M3KO/B/ND
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 3000
Length (mm): 1140
Suitable for surface mounting: Yes
TSP4000M4CW/B/ND
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Length (mm): 1140
Suitable for surface mounting: Yes
TSP4000M4CW/E/DALI
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Length (mm): 1140
Suitable for surface mounting: Yes
TSP4000M4CW/E/ND
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Length (mm): 1140
Suitable for surface mounting: Yes
TSP4000M4KN/E/DALI
Effective luminous flux (lm): 3700
System power (W): 30
Color temperature (K): 4000
Length (mm): 1140
Suitable for surface mounting: Yes
TSP4000M4KN/E/ND
Effective luminous flux (lm): 3700
System power (W): 30
Color temperature (K): 4000
Length (mm): 1140
Suitable for surface mounting: Yes
TSP6000L3CW/E/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 3000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP6000L3KO/B/ND
Effective luminous flux (lm): 5200
System power (W): 39
Color temperature (K): 3000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP6000L4CN/E/ND
Effective luminous flux (lm): 5200
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for suspended mounting: Yes
TSP6000L4CW/E/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP7000M4KN/7024/ND
Effective luminous flux (lm): 5500
System power (W): 46
Color temperature (K): 4000
Length (mm): 1140
Suitable for surface mounting: Yes
TSP8000L3CW/C/ND
Effective luminous flux (lm): 7700
System power (W): 57
Color temperature (K): 3000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP8000L3KO/B/ND
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 3000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP8000L4CHR/E/ND
Effective luminous flux (lm): 7000
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP8000L4CN/E/ND
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP8000L4CW/B/ND
Effective luminous flux (lm): 7700
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP8000L4CW/B/ND/NZ
Effective luminous flux (lm): 7700
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP8000L4CW/B/ND/NZ3
Effective luminous flux (lm): 7700
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP8000L4CW/E/DALI
Effective luminous flux (lm): 7700
System power (W): 59
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
TSP8000L4KO/E/ND
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 4000
Length (mm): 1422
Suitable for surface mounting: Yes
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
