Product series

MODUS UL

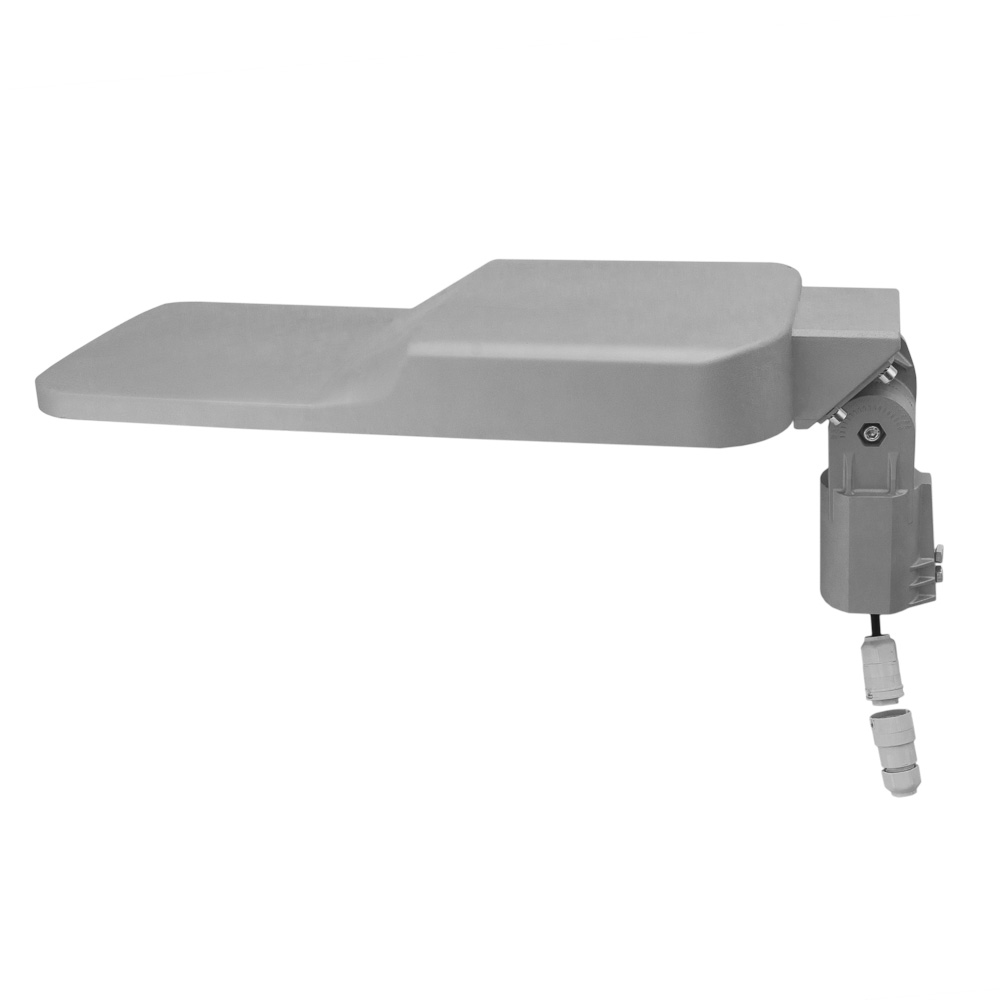

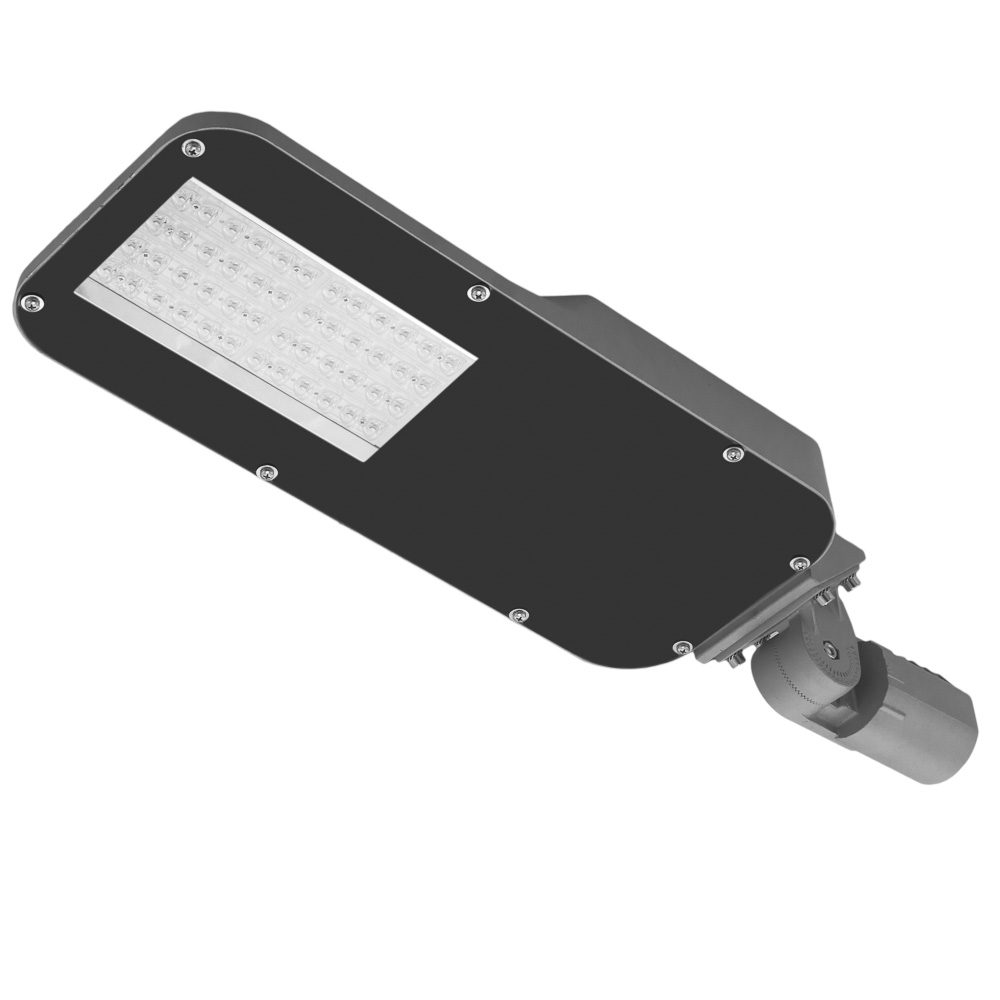

LED street light fitting

MODUS UL
1 M21_ulicni_sadovka.jpg
11 L70_100000_H.jpg

Price from:

4 600 Kč
( 5 566 Kč including VAT )

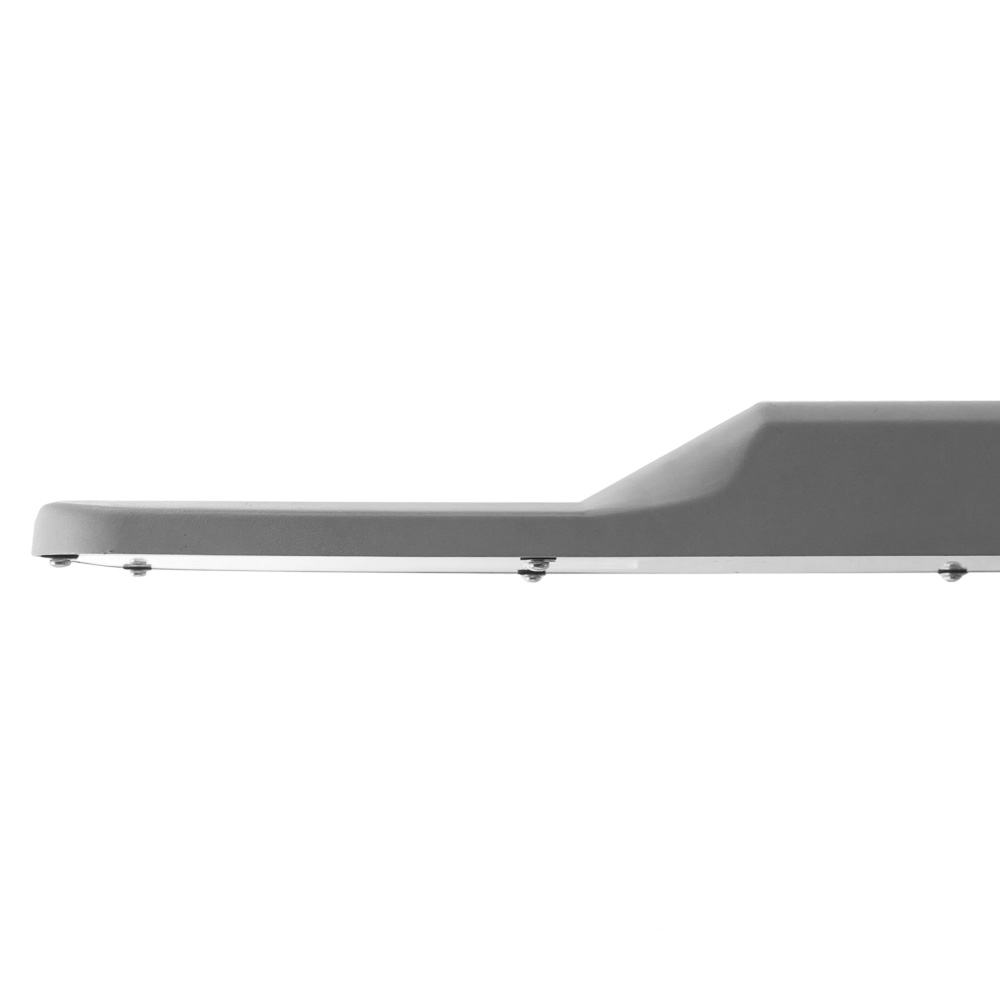

Body:

Polyester powder painted non-corressive high-pressure die-cast aluminium



Tempered glass cover



LED:

High Power LED

CRI 70

standard - daylight 4000K

optional - 2700/3000/5000 kelvin



Wiring:

LED current driver

ND – not dimmable

3DIM – dimmable driver OSRAM 4DIM

More information without about dimmable possibility you can see on special PDF in download section.



Application:

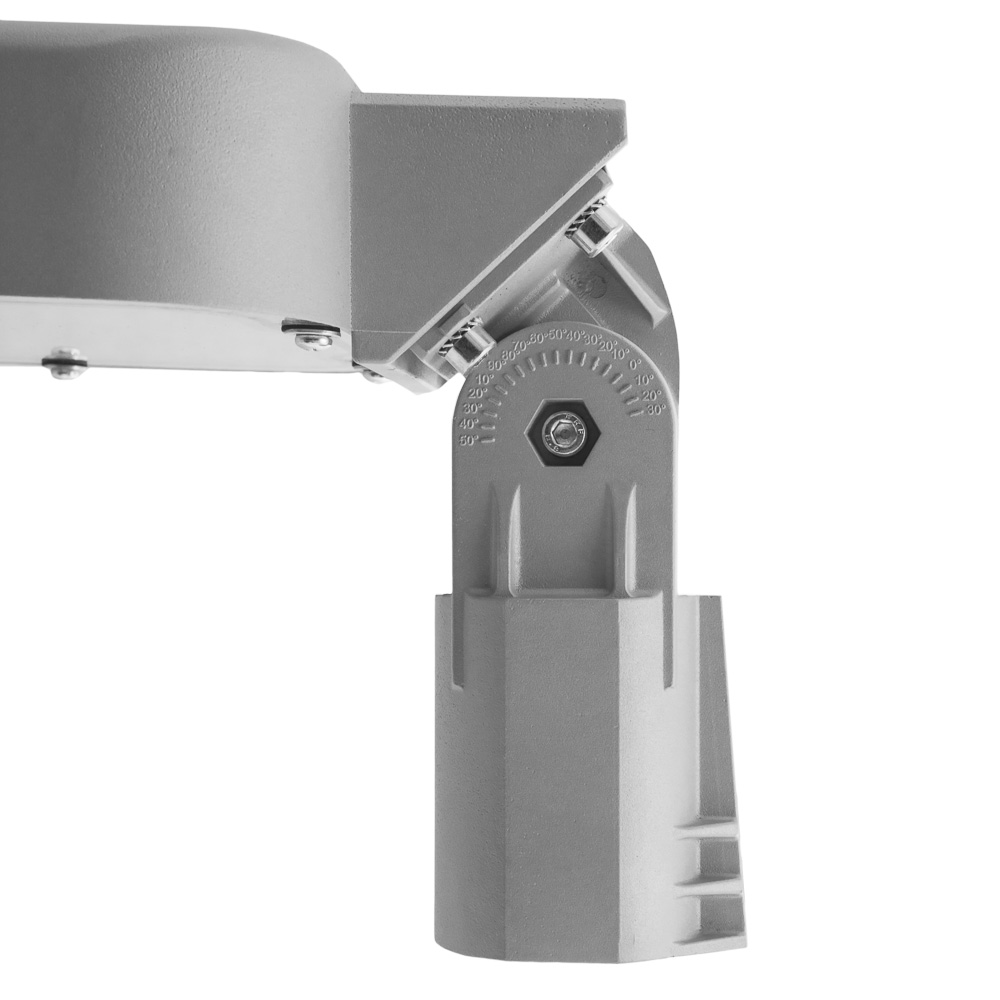

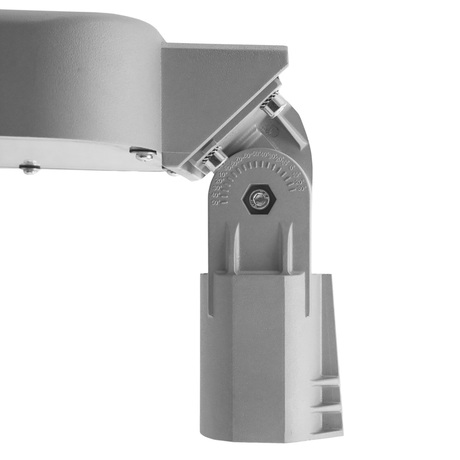

Mounting module is fixed to any post top 42 to 60 mm or side entry spigot from 42 to 60 mm.

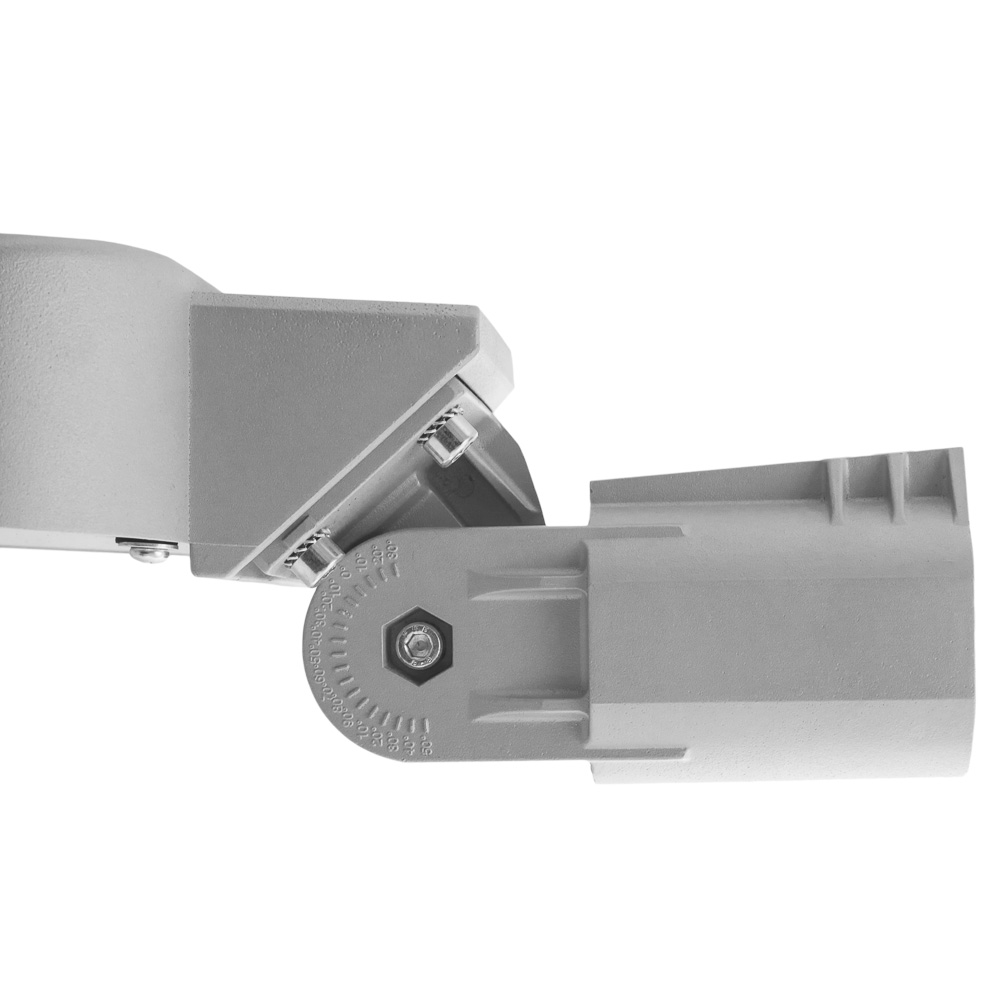

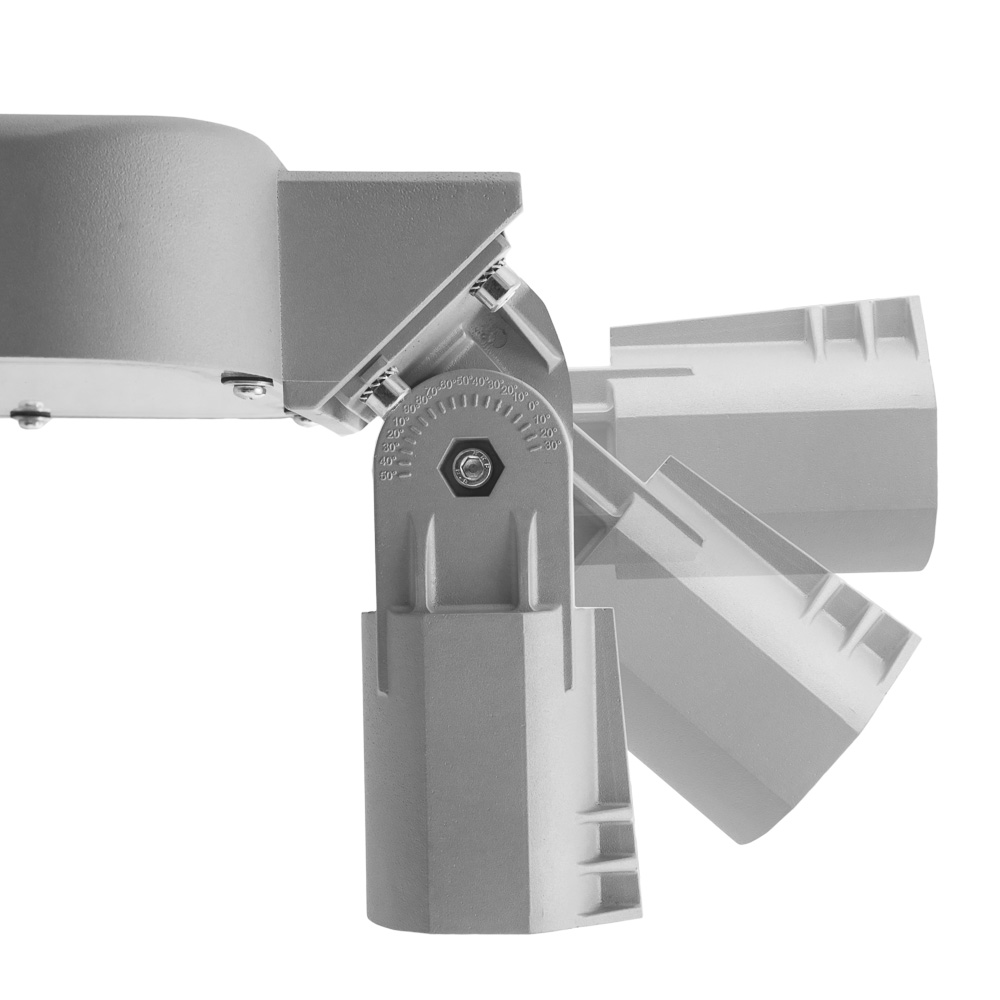

Adjusting angle from -30° to +90°.

Recommended height of installation 6-14m.

Body material:Aluminium die-castMounting method:Side-entry, Post-top
Protection class:IIType of control gear:LED operating device current-controlled
Color rendering index CRI:70-79Lamp type:LED
Degree of protection (IP):IP65Color temperature (K):4000, 3000, 2700, 5000
Rated life time L70/B50 (h):100000Dimming DALI:Yes

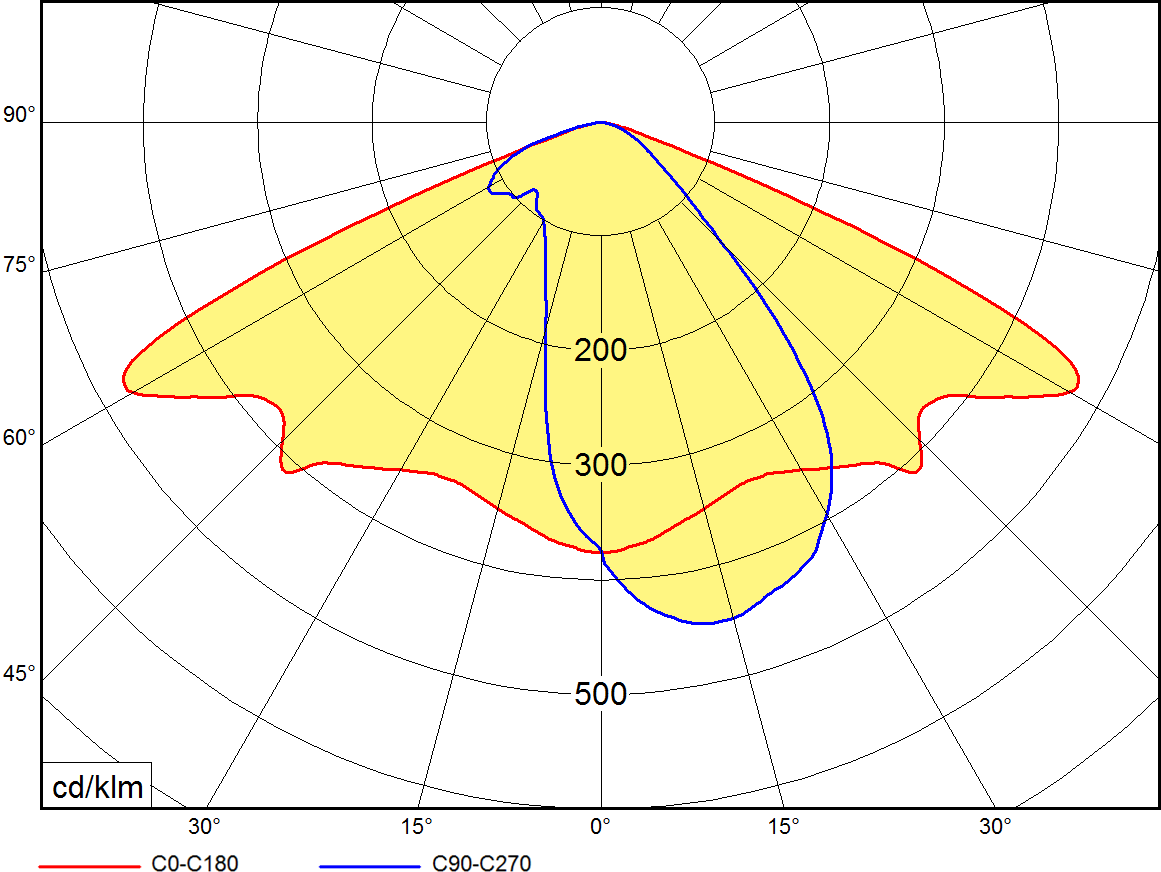

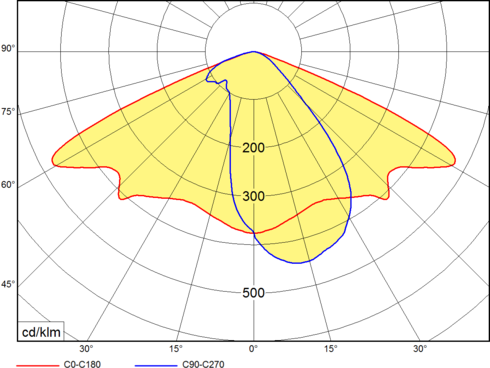

Optical system:LENS
Asymetric PMMA lenses
OS AS
asymetrické PMMA čočky pro osvětlení přechodů
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1880
7700

System power (W)

14
144
Product name
UL11500V13/3DIM
Effective luminous flux (lm): 12800
System power (W): 103
Color temperature (K): 3000
Optical system: LENS
UL11500V14/ND
Effective luminous flux (lm): 13100
System power (W): 103
Color temperature (K): 4000
Optical system: LENS
UL11500V15/3DIM
Effective luminous flux (lm): 13200
System power (W): 103
Color temperature (K): 5000
Optical system: LENS
UL11500V15/3DIM/7016
Effective luminous flux (lm): 13200
System power (W): 103
Color temperature (K): 5000
Optical system: LENS
UL11500V15/ND
Effective luminous flux (lm): 13200
System power (W): 103
Color temperature (K): 5000
Optical system: LENS
UL14000V13/ND
Effective luminous flux (lm): 16200
System power (W): 144
Color temperature (K): 3000
Optical system: LENS
UL14000V14/ND
Effective luminous flux (lm): 16550
System power (W): 144
Color temperature (K): 4000
Optical system: LENS
UL14000V15/3DIM
Effective luminous flux (lm): 16700
System power (W): 144
Color temperature (K): 5000
Optical system: LENS
UL14000V15/ND
Effective luminous flux (lm): 16700
System power (W): 144
Color temperature (K): 5000
Optical system: LENS
UL2000V12/3DIM
Effective luminous flux (lm): 1880
System power (W): 14
Color temperature (K): 2700
Optical system: LENS
UL3500V12/3DIM
Effective luminous flux (lm): 3740
System power (W): 30
Color temperature (K): 2700
Optical system: LENS
UL3500V13/3DIM
Effective luminous flux (lm): 3780
System power (W): 30
Color temperature (K): 3000
Optical system: LENS
UL3500V15/3DIM
Effective luminous flux (lm): 3900
System power (W): 30
Color temperature (K): 5000
Optical system: LENS
UL3500V15/ND
Effective luminous flux (lm): 3200
System power (W): 28
Color temperature (K): 5000
Optical system: LENS
UL5000V12/3DIM
Effective luminous flux (lm): 5470
System power (W): 47
Color temperature (K): 2700
Optical system: LENS
UL5000V13/3DIM
Effective luminous flux (lm): 5530
System power (W): 47
Color temperature (K): 3000
Optical system: LENS
UL5000V13/ND
Effective luminous flux (lm): 4850
System power (W): 38
Color temperature (K): 3000
Optical system: LENS
UL5000V14/3DIM
Effective luminous flux (lm): 5650
System power (W): 47
Color temperature (K): 4000
Optical system: LENS
UL5000V14/ND
Effective luminous flux (lm): 4950
System power (W): 38
Color temperature (K): 4000
Optical system: LENS
UL5000V15/3DIM
Effective luminous flux (lm): 5700
System power (W): 47
Color temperature (K): 5000
Optical system: LENS
UL5000V15/ND
Effective luminous flux (lm): 5000
System power (W): 38
Color temperature (K): 5000
Optical system: LENS
UL7500V13/ND
Effective luminous flux (lm): 7400
System power (W): 56
Color temperature (K): 3000
Optical system: LENS
UL7500V14/ND
Effective luminous flux (lm): 7400
System power (W): 56
Color temperature (K): 4000
Optical system: LENS
UL7500V15/3DIM
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 5000
Optical system: LENS
UL7500V15/3DIM/7016
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 5000
Optical system: LENS
UL7500V15/ND
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 5000
Optical system: LENS
UL9000V12/3DIM
Effective luminous flux (lm): 10750
System power (W): 87
Color temperature (K): 2700
Optical system: LENS
UL9000V13/3DIM
Effective luminous flux (lm): 10860
System power (W): 87
Color temperature (K): 3000
Optical system: LENS
UL9000V14/3DIM
Effective luminous flux (lm): 11080
System power (W): 87
Color temperature (K): 4000
Optical system: LENS
UL9000V14/ND
Effective luminous flux (lm): 11080
System power (W): 87
Color temperature (K): 4000
Optical system: LENS
UL9000V15/3DIM
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 5000
Optical system: LENS
UL9000V15/ND
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 5000
Optical system: LENS

Product page - PDF

CE declaration

Assembly instruction

Other files
