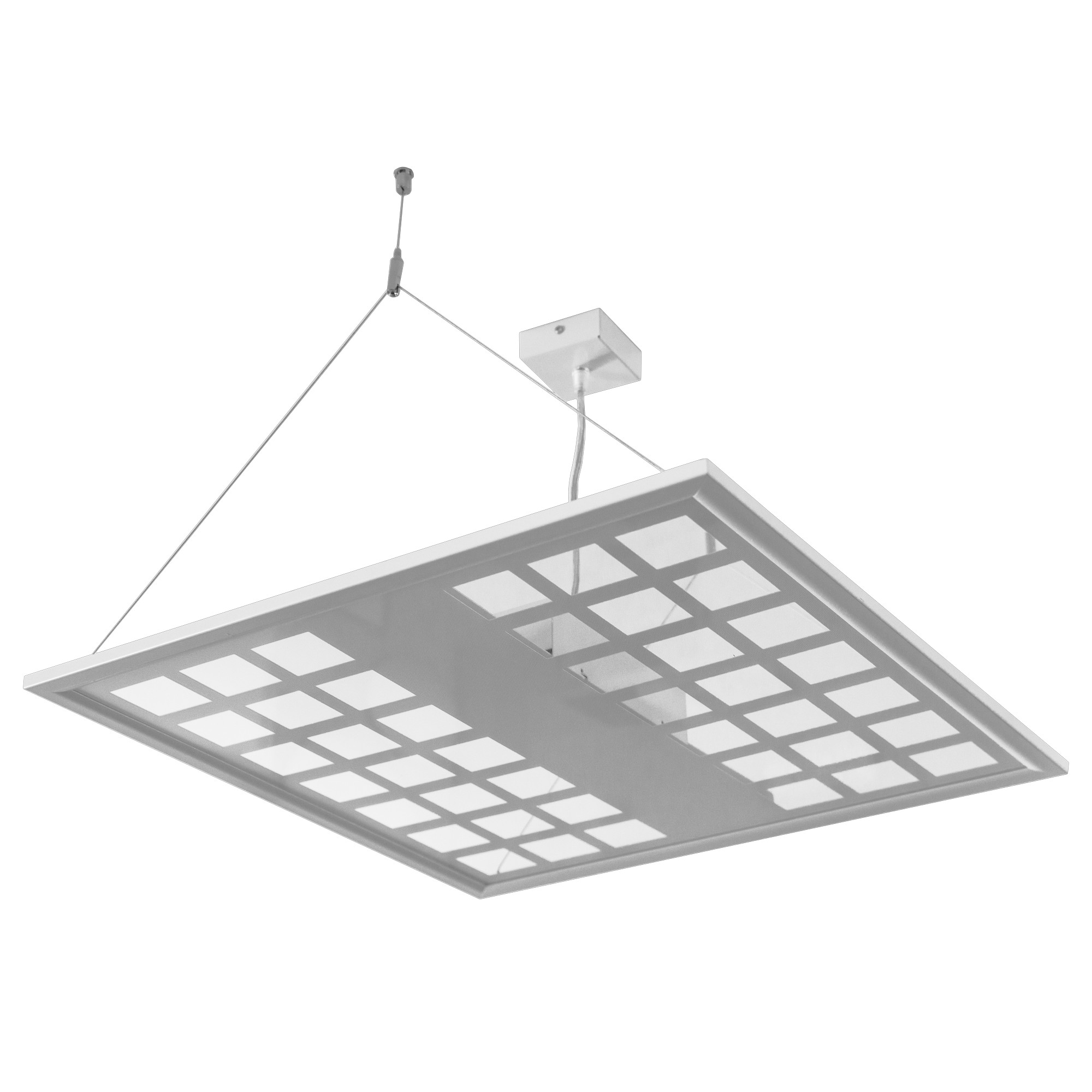

MODUS UQY
Pendant LED panel with direct/indirect illumination

11 L80_80000_h.jpg

Body:

White painted (RAL9003) aluminium frame



Optic:

Translucent acrylic layer



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4…cold white 4000K

5…daylight 5700K



Wiring:

LED current driver

ND – not dimmable (standard)

DALI – dimmable DALI

DIM - dimmable 1-10V DC

Luminaire can be supplied with wireless Bluetooth control - more information here.



Version (body shape):

UQY...A - square 600x600 mm

UQY...C - rectangle 1200x300 mm



Note:

Cord suspension set include transparent power supply cable (2m length) is standardly included in a packing

Show more...

Main features

Lamp type:LED
Color temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20
Optical system:UQY - high translucent acrylic + indirect light output
Light outlet:Direct/indirect
Size version:A - 600x600 mm or 625x625 mm
C - 1200x300 mm
Body material:White painted aluminium frame
Mounting method:Pendant
Protection class:I
Type of control gear:LED operating device current-controlled
Dimming 1-10 V:Yes
Dimming DALI:Yes

Download

  • MODUS UQYMODUS UQY

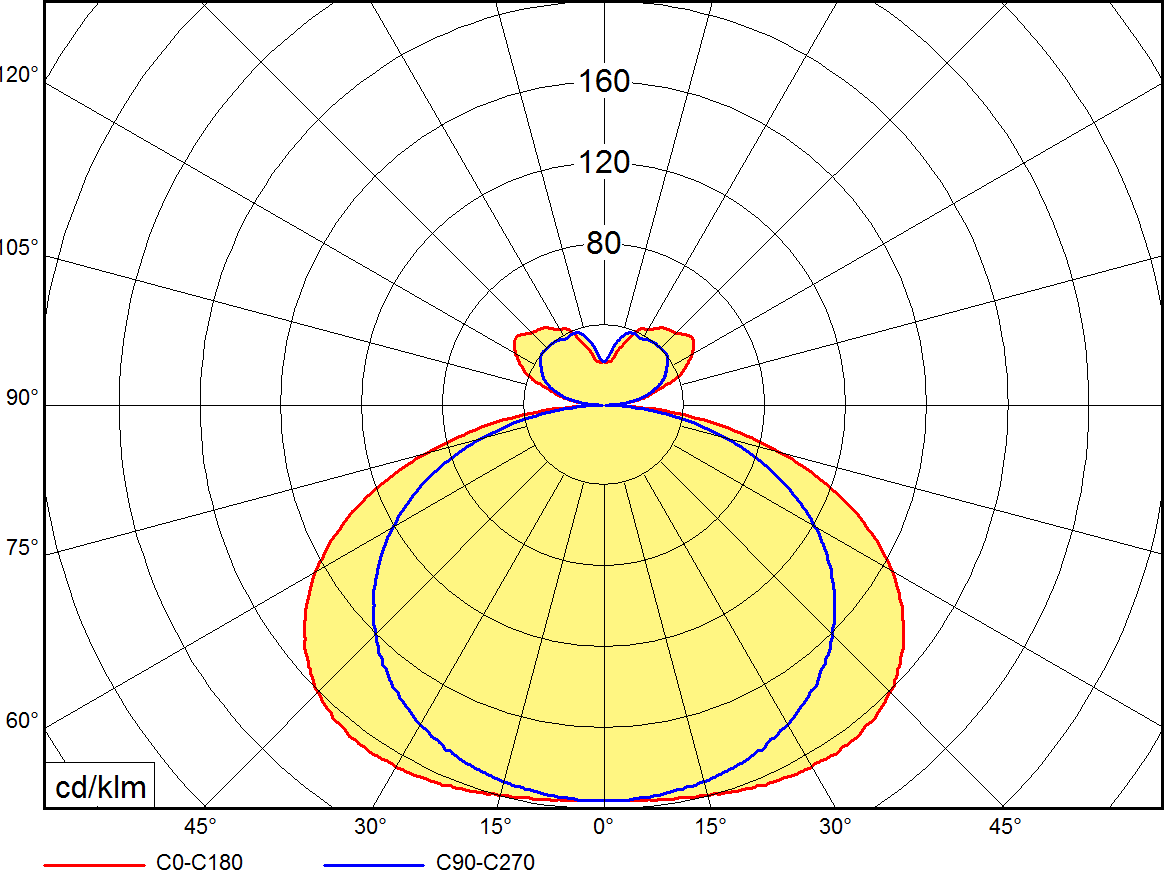

Light distribution


Versions

Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 3000
Length (mm): 596
Width (mm): 596
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3000
Length (mm): 596
Width (mm): 596
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 3000
Dimming DALI: Yes
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 3000
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 3000
Length (mm): 1196
Width (mm): 296
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3000
Length (mm): 1196
Width (mm): 296
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3000
Length (mm): 1196
Width (mm): 296
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3000
Length (mm): 1196
Width (mm): 296
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 4000
Length (mm): 596
Width (mm): 596
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 4000
Length (mm): 596
Width (mm): 596
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 4000
Length (mm): 596
Width (mm): 596
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 4000
Length (mm): 1196
Width (mm): 296
Dimming DALI: Yes
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 4000
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 4000
Length (mm): 1196
Width (mm): 296
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 4000
Length (mm): 1196
Width (mm): 296
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 4000
Length (mm): 1196
Width (mm): 296
Effective luminous flux (lm): 5900
System power (W): 50
Color temperature (K): 5700
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 5700
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 5700
Length (mm): 596
Width (mm): 596
Effective luminous flux (lm): 4000
System power (W): 50
Color temperature (K): 5700
Length (mm): 1196
Width (mm): 296
