Product series

MODUS ZL

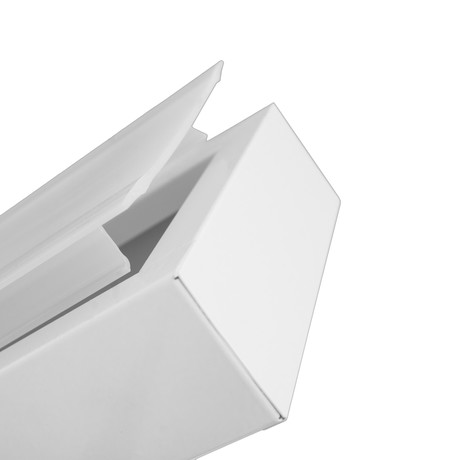

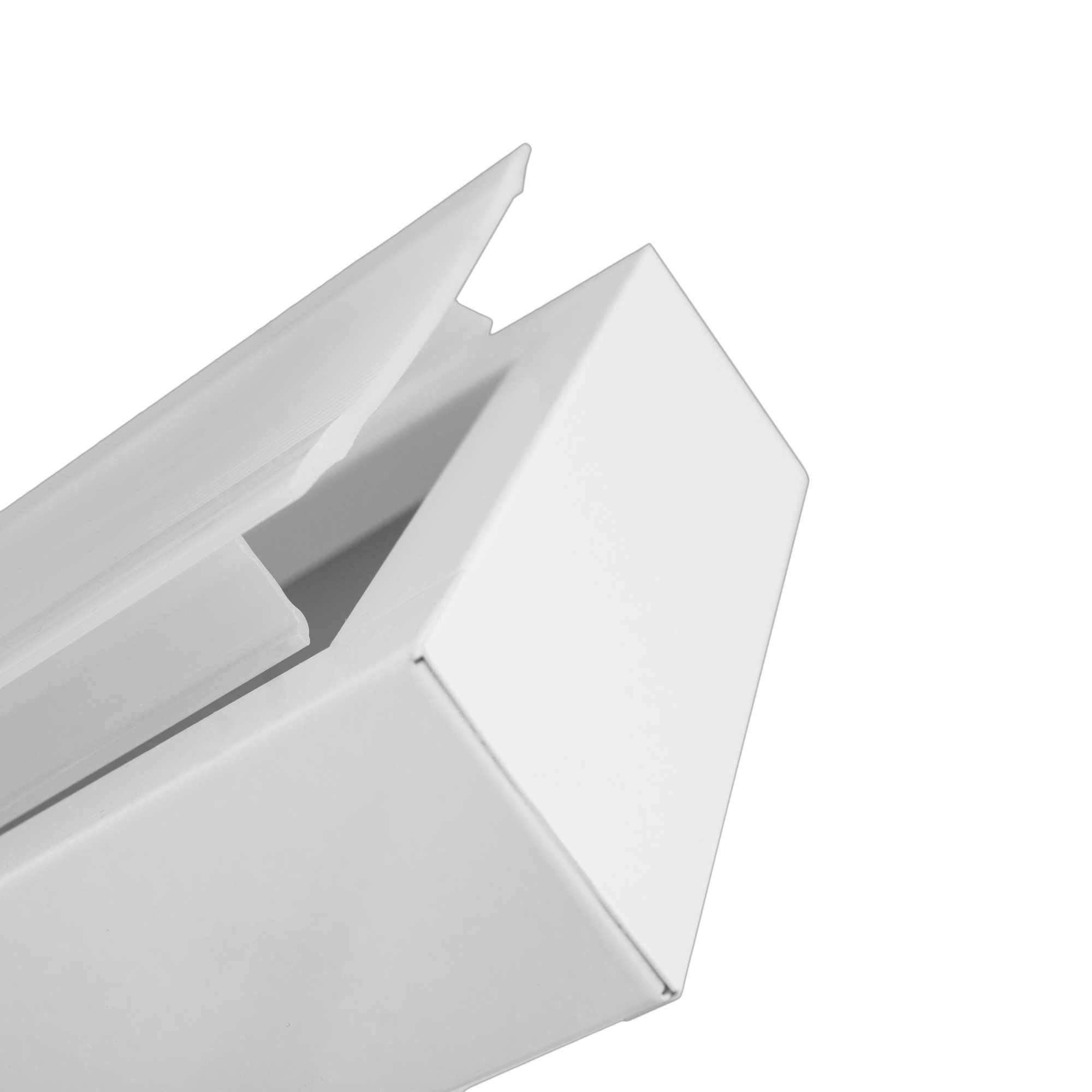

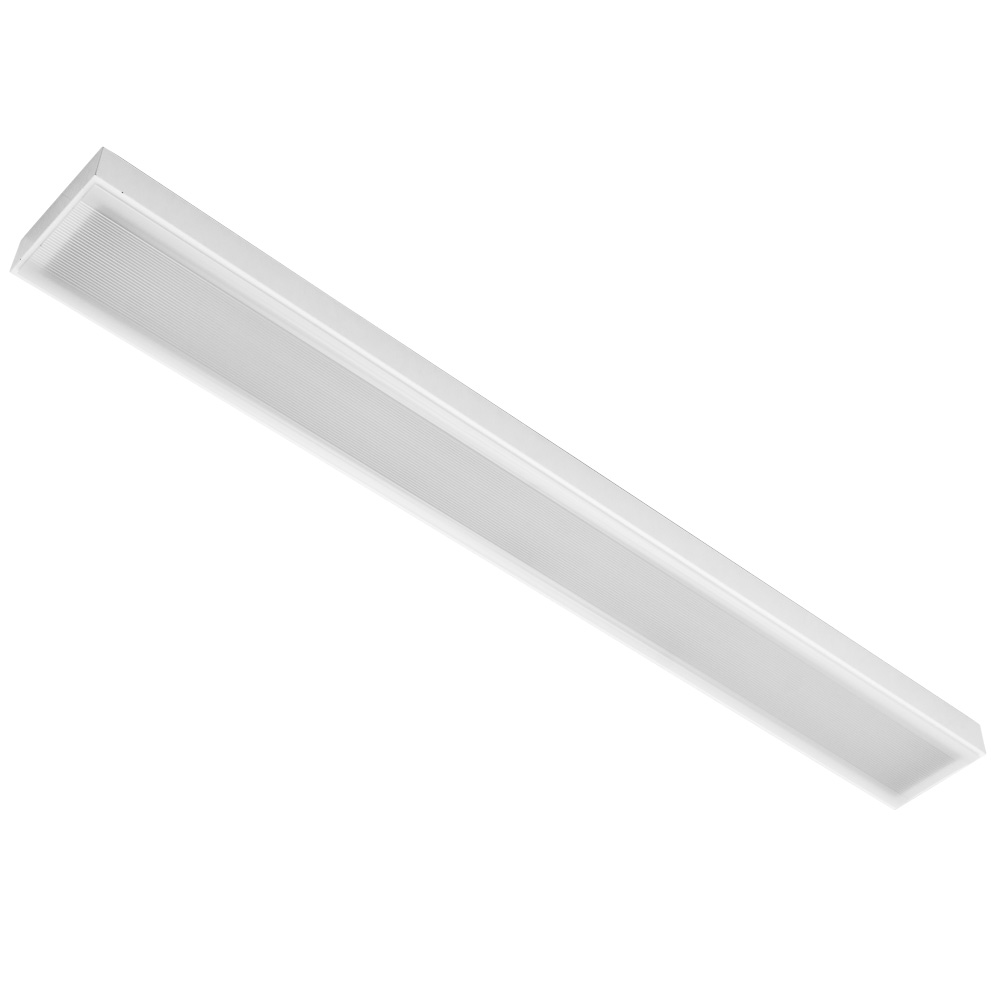

Surface / pendant fitting with cover

MODUS ZL
11 L80_80000_h.jpg

Price from:

2 000 Kč
( 2 420 Kč including VAT )

Body:

White painted (RAL 9016) metal sheet



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Installation:

- surface installation

- pendant installation - need to be ordered ZH11 suspension set



Application:

Surface fitting with LED technology for illumination of shopping and industrial spaces, corridors, ...



Accessories:

ZH11 - suspension set

Lamp type:LEDColor temperature (K):3000, 4000
Color rendering index CRI:80-89, 90-100Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20Optical system:KO

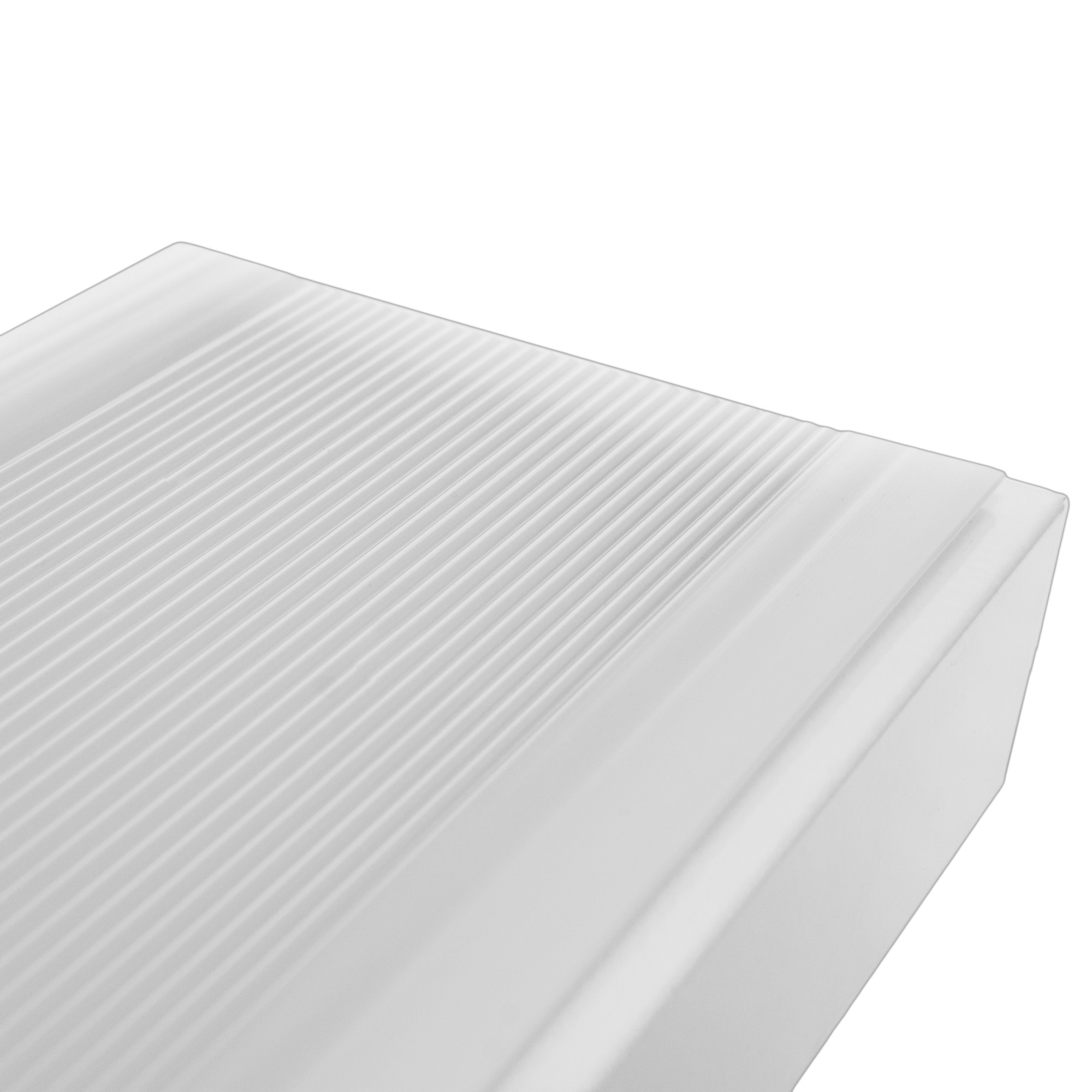

opal cover
Size version:L
1500 mm
M
1200 mm
Body material:White painted steel
Mounting method:Surface mounting, PendantProtection class:I
Type of control gear:LED operating device current-controlledDimming 1-10 V:Yes
Dimming DALI:Yes
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3400
4700

System power (W)

34
53
Product name
ZL11LKO3V1/1050ND
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 3000
Size version: L
ZL11LKO3V1/1400DALI
Effective luminous flux (lm): 4600
System power (W): 50
Color temperature (K): 3000
Size version: L
ZL11LKO3V1/1400DALI/BTC
Effective luminous flux (lm): 4600
System power (W): 50
Color temperature (K): 3000
Size version: L
ZL11LKO3V1/1400ND
Effective luminous flux (lm): 4600
System power (W): 50
Color temperature (K): 3000
Size version: L
ZL11LKO3V1NZ/1400ND
Effective luminous flux (lm): 4600
System power (W): 50
Color temperature (K): 3000
Size version: L
ZL11LKO4V1/1050DALI
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 4000
Size version: L
ZL11LKO4V1/1050DIM
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 4000
Size version: L
ZL11LKO4V1/1050ND
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 4000
Size version: L
ZL11LKO4V1/1400DALI
Effective luminous flux (lm): 4600
System power (W): 50
Color temperature (K): 4000
Size version: L
ZL11LKO4V1/1400ND
Effective luminous flux (lm): 4600
System power (W): 50
Color temperature (K): 4000
Size version: L
ZL11LKO4V1/1400ND/90
Effective luminous flux (lm): 3900
System power (W): 50
Color temperature (K): 4000
Size version: L
ZL11LKO4V1NZ/1400ND
Effective luminous flux (lm): 4600
System power (W): 50
Color temperature (K): 4000
Size version: L
ZL11LKO4V1NZ/1400ND/90
Effective luminous flux (lm): 3900
System power (W): 50
Color temperature (K): 4000
Size version: L
ZL11MKO3V1/1050ND
Effective luminous flux (lm): 4700
System power (W): 53
Color temperature (K): 3000
Size version: M
ZL11MKO3V1/700DALI
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 3000
Size version: M
ZL11MKO3V1/700ND
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 3000
Size version: M
ZL11MKO4V1/1050DALI
Effective luminous flux (lm): 4700
System power (W): 53
Color temperature (K): 4000
Size version: M
ZL11MKO4V1/1050ND
Effective luminous flux (lm): 4700
System power (W): 53
Color temperature (K): 4000
Size version: M
ZL11MKO4V1/700DALI
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 4000
Size version: M
ZL11MKO4V1/700ND
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 4000
Size version: M
ZL11MKO4V1NZ/1050ND
Effective luminous flux (lm): 4700
System power (W): 53
Color temperature (K): 4000
Size version: M
