Product series MODUS HEX D

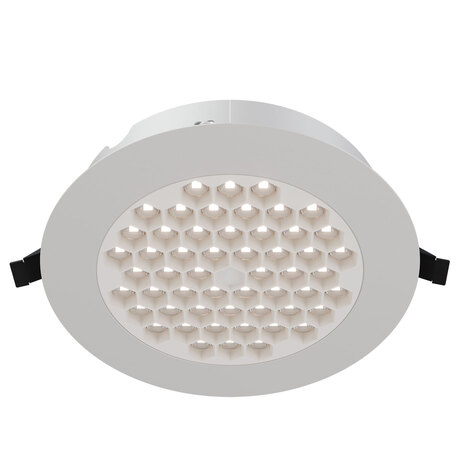

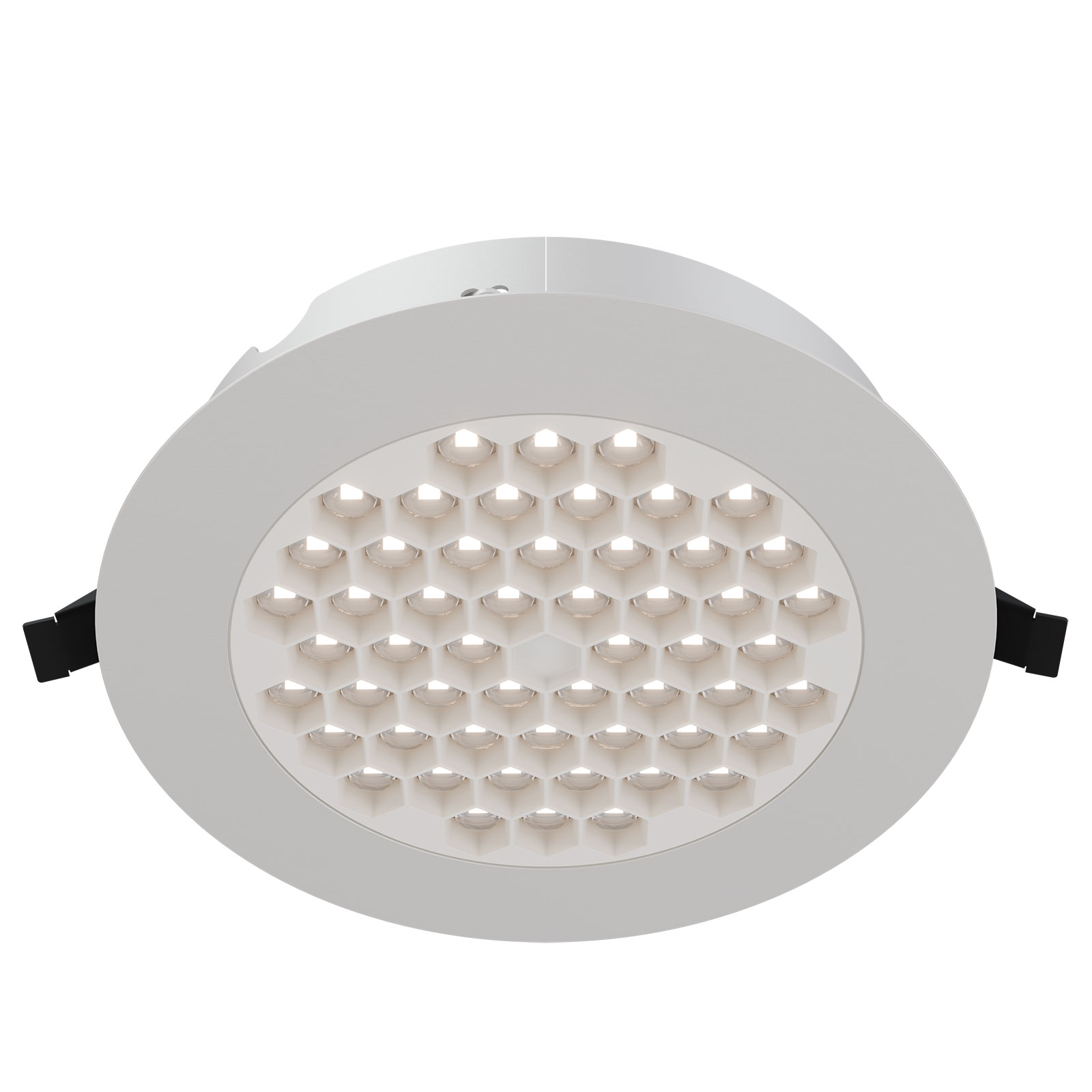

Light fitting HEX 1000, recessed, 190mm, white body, white optic, lenses 60°, LED 840
Recessed round luminaire UGR<19
Code: HEX1000D4BB60/190/ND
EAN: 8596099176624
Luminaire properties
| Product category: | Downlight/spot/floodlight | Effective luminous flux (lm): | 1100 | System power (W): | 7 | Luminaire efficacy (lm/W): | 157 |
| Degree of protection (IP): | IP20 | Color housing: | White | Surface protection: | Lacquered | Material housing: | Steel | Light source included: | Yes |
| Suitable for built-in mounting: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 4000 | Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
Dimensions
| Outer diameter (mm): | 210 | Built-in diameter (mm): | 190 | Weight (kg): | 0,65 |
Electrical values
| Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 | Control gear included: | Yes |
| Type of wiring: | Ending | No dim function: | Yes |
Optical system
| Anti-glare limiting UGR: | 19 | Light sharing: | Symmetric |
LDT files >
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
HEX1000D4BB60/190/ND
Effective luminous flux (lm): 1100
System power (W): 7
Color temperature (K): 4000
HEX1500D3CC60/190/DALI
Effective luminous flux (lm): 1400
Color temperature (K): 3000
HEX1500D4BB60/190/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
HEX1500D4BB60/190/NDPIR
Effective luminous flux (lm): 1500
Color temperature (K): 4000
HEX2000D3CC60/190/ND
Effective luminous flux (lm): 2100
System power (W): 15
HEX2000D4BB60/190/DALI
Effective luminous flux (lm): 2200
System power (W): 15
HEX2000D4BB60/190/ND
Effective luminous flux (lm): 2200
System power (W): 15
Color temperature (K): 4000
