Product series MODUS DM

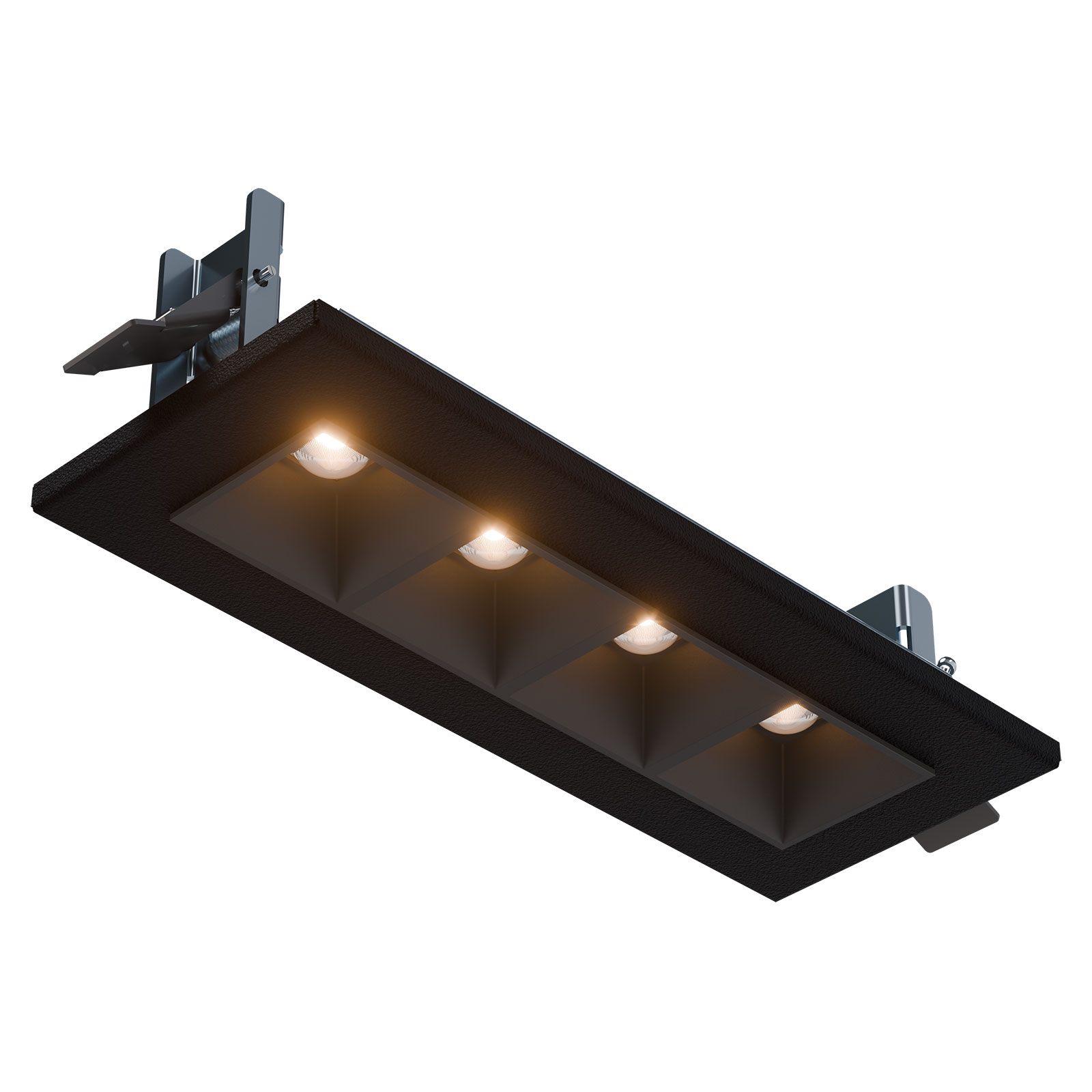

MODUS DM1500, recessed, black body, rectangle 75x195mm, 1x4 black matt optic, lenses 80°, 1x4 LED 840, BT driver
Recessed LED luminaire with optics / cove
Code: DM1500R4CCM80/14/BT
EAN: 8596099174712
Luminaire properties
| Product category: | Downlight/spot/floodlight | Effective luminous flux (lm): | 1450 | System power (W): | 14 | Luminaire efficacy (lm/W): | 104 |
| Rated lifetime L70/B50 (h): | 100000 | Degree of protection (IP): | IP40 | Color housing: | Black | Surface protection: | Powder coating | Material housing: | Steel |
| Light source included: | Yes | Suitable for built-in mounting: | Yes | Made in Czech republic: | Yes | Degree of protection II (IP): | IP20 |
Light source
| Light source type: | LED | Color temperature (K): | 4000 | Color rendering index CRI: | 80-89 | Colour consistency (McAdam ellipse): | SDCM3 |
| Photobiological safety according to EN 62471: | RG0 | Replaceability: | Replaceable light source by professional, replaceable ballast |
Optical system
| Optical system: | CM80 | Light outlet: | Direct | Light sharing: | Symmetric |
Dimensions
| Length (mm): | 195 | Width (mm): | 75 | Height/depth (mm): | 49 | Built-in height/depth (mm): | 49 |
| Weight (kg): | 0,4 |
Electrical values
| Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 | Control gear included: | Yes |
| Dimming manufacturer's proprietary system: | Yes | MODUS SMART: | Bluetooth |
LDT files >
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
DM1000R3BCM80/14/DALI
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 3000
Optical system: CM80
Length (mm): 195
DM1000R4ABM80/14/ND
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 4000
Optical system: BM80
Length (mm): 195
DM1000R4BKO/14/ND
Effective luminous flux (lm): 800
System power (W): 9
Color temperature (K): 4000
Optical system: KO
Length (mm): 195
DM1000S4BKN/22/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 4000
Optical system: KN
Length (mm): 115
DM1000S4BKO/22/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 4000
Optical system: KO
Length (mm): 115
DM1000S4CCM80/22/ND
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 4000
Optical system: CM80
Length (mm): 115
DM1000S4CKO/22/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 4000
Optical system: KO
Length (mm): 115
DM1500R4BBM80/17/ND
Effective luminous flux (lm): 2100
System power (W): 18
Color temperature (K): 4000
Optical system: BM80
Length (mm): 315
DM1500R4BKO/17/ND
Effective luminous flux (lm): 1650
System power (W): 18
Color temperature (K): 4000
Optical system: KO
Length (mm): 395
DM1500R4CCM80/14/BT
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
Optical system: CM80
Length (mm): 195
DM2000R3CCM50/17/DALI
Effective luminous flux (lm): 2400
System power (W): 22
Color temperature (K): 3000
Optical system: CM50
Length (mm): 395
DM2000R4BBM80/17/ND
Effective luminous flux (lm): 2600
System power (W): 22
Color temperature (K): 4000
Optical system: BM80
Length (mm): 315
DM2000R4BKO/17/ND
Effective luminous flux (lm): 2000
System power (W): 22
Color temperature (K): 4000
Optical system: KO
Length (mm): 395
