MODUS EPS

Product series MODUS EPS

12 CCT_4000.jpg
11 L80_80000_h.jpg
220-240 v.png

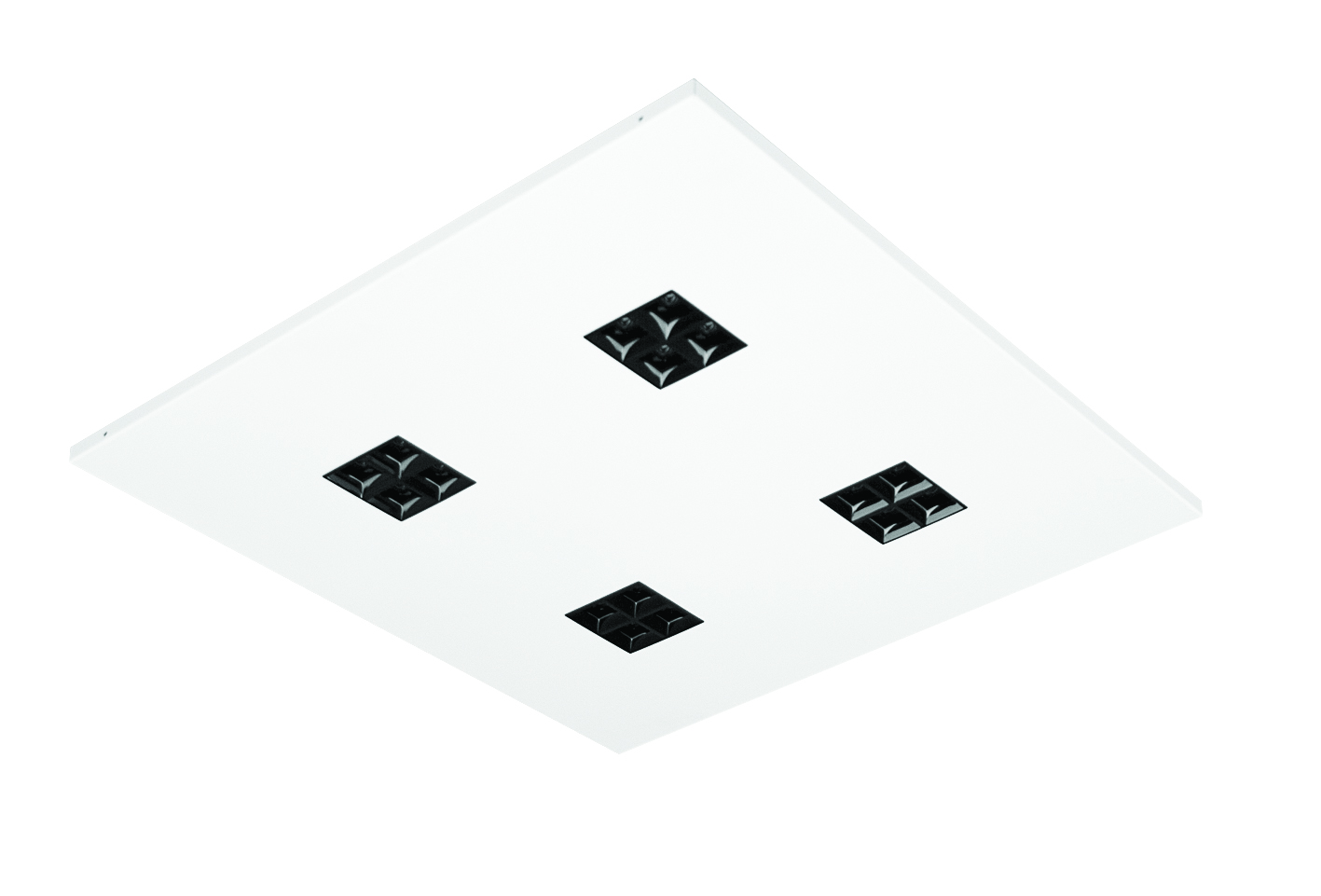

MODUS EPS4000, white square, 4x4 black optics, lenses 80°, LED 840, DALI

Surface luminaire with dark optic

Code: EPS4000SS4BC80/44/DALI
EAN: 8596099109189

This product contains a light source with energy efficiency class D

Luminaire properties

Product category:Ceiling / wall luminairesEffective luminous flux (lm):3500
System power (W):27Luminaire efficacy (lm/W):130
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP20
Color housing:WhiteSuitable for suspended mounting:Yes
Material housing:Steel
Suitable for surface mounting:Yes
Suitable for ceiling mounting:YesMade in Czech republic:Yes

Light source

Light source type:LEDColor temperature (K):4000
Color rendering index CRI:80-89Replaceability:Replaceable light source by professional, replaceable ballast
Light source type:1990040184001Energy efficiency class:D

Optical system

Optical system:C80Anti-glare limiting UGR:16
Light sharing:Symmetric

Dimensions

Length (mm):595Width (mm):595
Height/depth (mm):40Size version:S
Weight (kg):1,8

Electrical values

Protection class:IIVoltage type:AC
Type of control gear:LED operating device current-controlledNominal voltage (V):220...240
Control gear included:YesDimming DALI:Yes
LoadingLoading

Filters

Effective luminous flux (lm)

1450
8400

System power (W)

14
62
Product name
EPS1500S20S4CC80/14/ND
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
Optical system: C80
Length (mm): 200
EPS3000RM4BB50/44/ND
Effective luminous flux (lm): 2750
System power (W): 18
Color temperature (K): 4000
Optical system: B50
Length (mm): 1230
EPS3000RM4BB80/1/ND
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS3000RM4BC50/44/ND/EU
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: C50
Length (mm): 1230
EPS3000SS3CB80/44/ND
Effective luminous flux (lm): 2750
System power (W): 18
Color temperature (K): 3000
Optical system: B80
Length (mm): 595
EPS3000SS4BB80/44/ND
Effective luminous flux (lm): 2750
System power (W): 18
Color temperature (K): 4000
Optical system: B80
Length (mm): 595
EPS3000SS4BC80/44/ND
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS3000SS4CC80/44/BT
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000RM3BB50/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: B50
Length (mm): 1230
EPS4000RM3BB80/1/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 3000
Optical system: B80
Length (mm): 1230
EPS4000RM3BB80/1/ND
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 3000
Optical system: B80
Length (mm): 1230
EPS4000RM3BB80/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: B80
Length (mm): 1230
EPS4000RM3BC80/1/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Length (mm): 1230
EPS4000RM3BC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 1230
EPS4000RM3CC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 1230
EPS4000RM3CC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 1230
EPS4000RM4BB50/44/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: B50
Length (mm): 1230
EPS4000RM4BB50/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: B50
Length (mm): 1230
EPS4000RM4BB80/1/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS4000RM4BB80/1/ND
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS4000RM4BB80/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS4000RM4BC50/44/DALI/90
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: C50
Length (mm): 1230
EPS4000RM4BC80/44/BT
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4BC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4BC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4BC80/44/ND/EU
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4CC80/44/BT
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4CC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4CC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4CC80/44/ND/90
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000SS3BC80/2/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Length (mm): 595
EPS4000SS3BC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 595
EPS4000SS3BC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS3CB80/44/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: B80
Length (mm): 595
EPS4000SS3CC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 595
EPS4000SS4BB80/2/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 595
EPS4000SS4BB80/2/ND
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 595
EPS4000SS4BB80/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: B80
Length (mm): 595
EPS4000SS4BC80/2/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4BC80/2/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4BC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4BC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4CC80/2/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4CC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4CC80/44/ND/90
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS5000RM4BB80/44/DALI/44V
Effective luminous flux (lm): 5400
System power (W): 39
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS5000RM4BC80/44/DALI
Effective luminous flux (lm): 4400
System power (W): 37
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS6000RL3BB80/64/ND
Effective luminous flux (lm): 6400
System power (W): 44
Color temperature (K): 3000
Optical system: B80
Length (mm): 1535
EPS6000RL3BC80/64/DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: C80
Length (mm): 1535
EPS6000RL3BC80/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: C80
Length (mm): 1535
EPS6000RL3CC80/64/DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: C80
Length (mm): 1535
EPS6000RL3CC80/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: C80
Length (mm): 1535
EPS6000RL4BC80/64/DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL4BC80/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL4CC80/64/DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL4CC80/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL4CC80/64/NDNZ
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL5BB50/64/ND/90
Effective luminous flux (lm): 5500
System power (W): 46
Color temperature (K): 5700
Optical system: B50
Length (mm): 1535
EPS6000RM4BB80/1/ND/90
Effective luminous flux (lm): 5500
System power (W): 42
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS6000RM4BC80/1/ND
Effective luminous flux (lm): 5500
System power (W): 42
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS8000RL4BB50/64/ND
Effective luminous flux (lm): 8400
System power (W): 62
Color temperature (K): 4000
Optical system: B50
Length (mm): 1535

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
