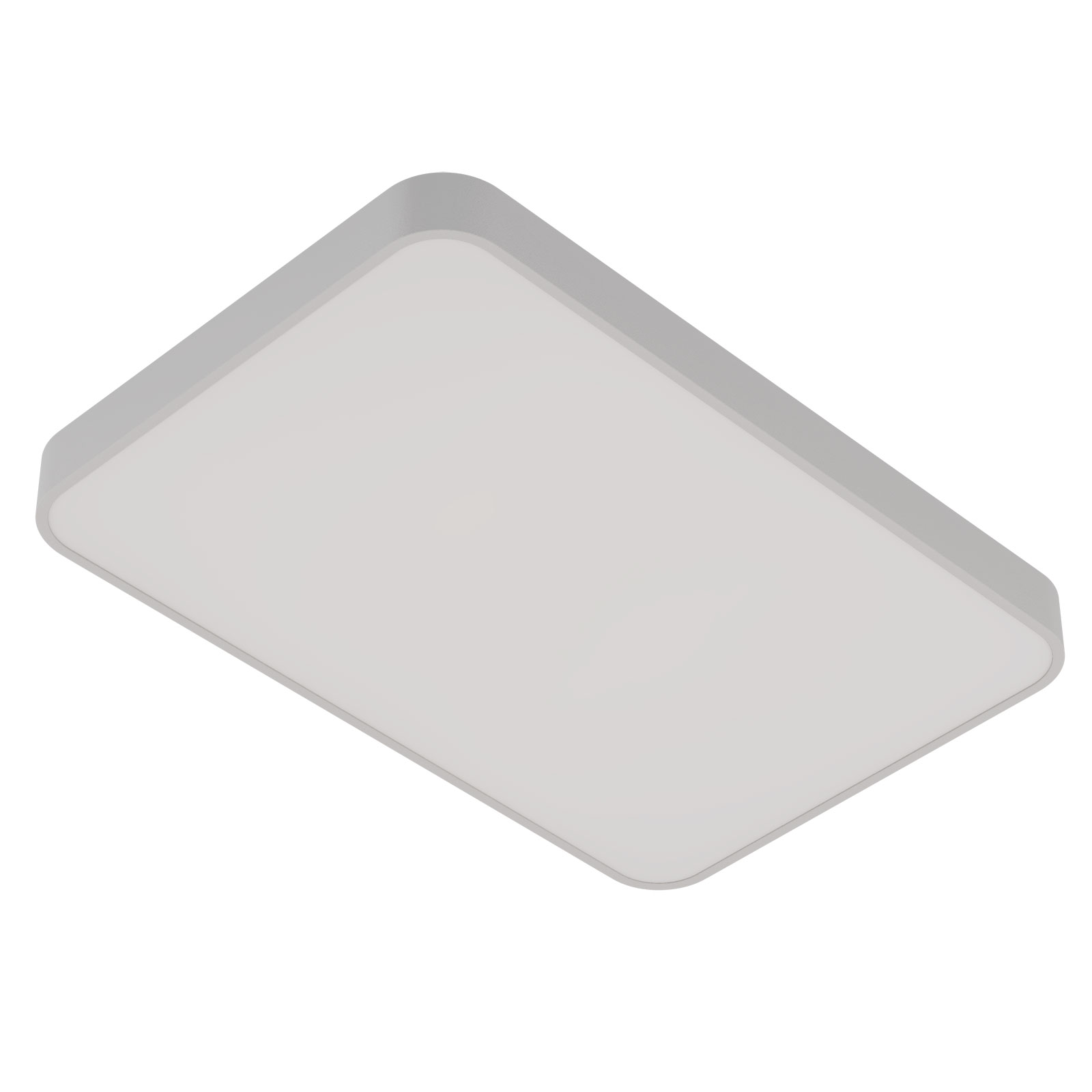

MODUS GEO R
Design rectangle luminaire
Standard price from:
A completely new range of design luminaires. The body of the luminaire is made of solid aluminum - a luxurious look.
Thanks to our own technology for bending aluminum profiles, the luminaire can be supplied in various sizes and shapes.
The luminaire can be made in various colors. From classic white, through gray to, for example, dark brown.
INTO THE SHAPES with new and creative MODUS luminaires.
Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.
Other shape variants are:
GEO T - triangle
GEO S - square
GEO P - ring
GEO O - oval
Basic colors:
| Mounting method: | Pendant, Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | SO SATIN opal cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product page - PDF
CE declaration
LDT files
