Product series New
MODUS HEX P
Surface-mounted round luminaire UGR<19
Standard price from:
On request
Versions:
• HEX P – surface-mounted version
• HEX D – recessed (downlight) version
Optional PIR sensor:
Also available with an integrated PIR sensor (mounted in the centre of the luminaire):
• HEX...P…/PIR
• HEX...D…/PIR
Technical details:
• Luminous flux: 1000 lm / 1500 lm / 2000 lm

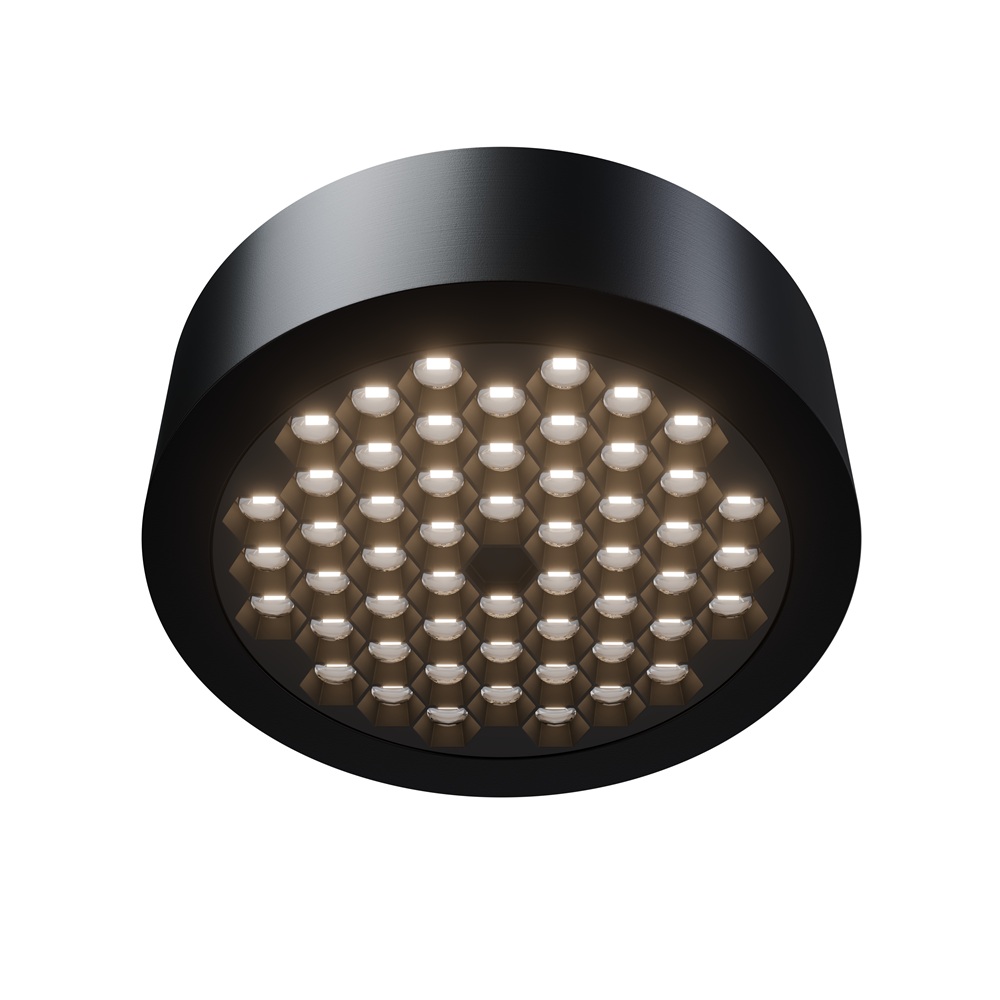

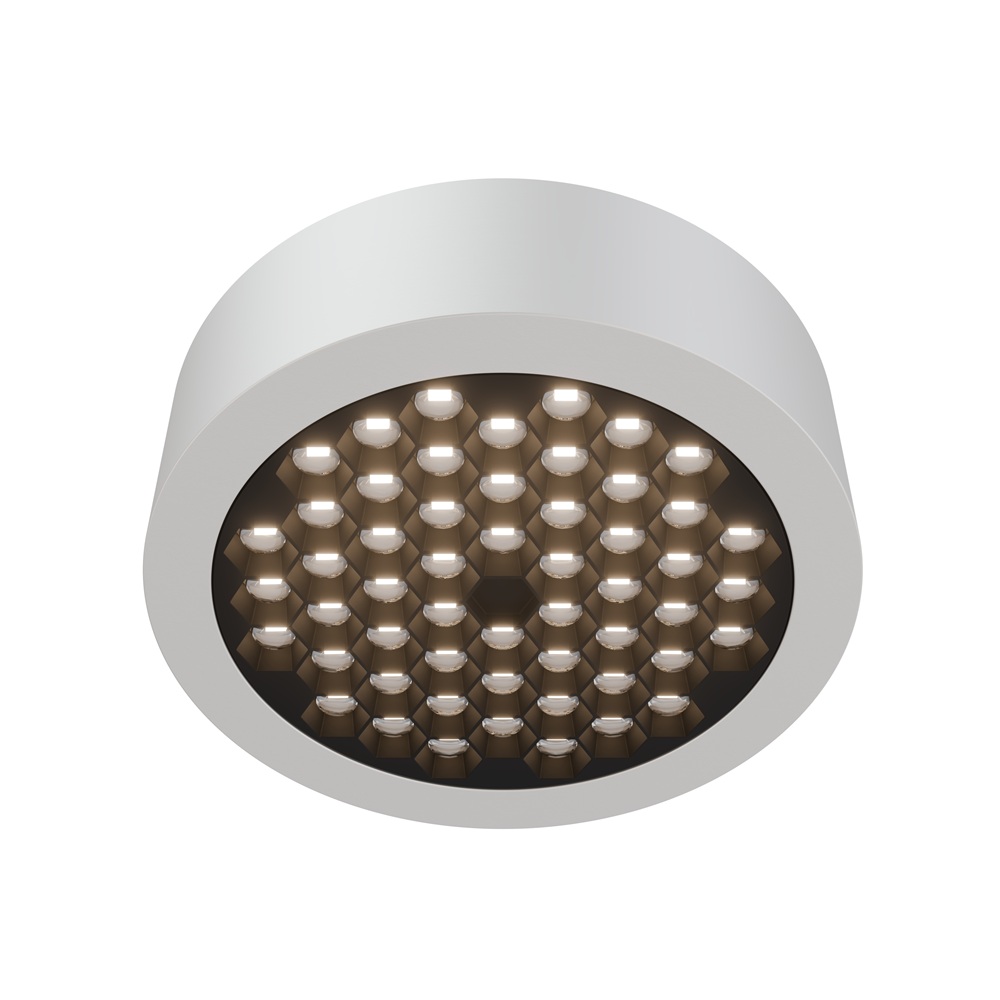

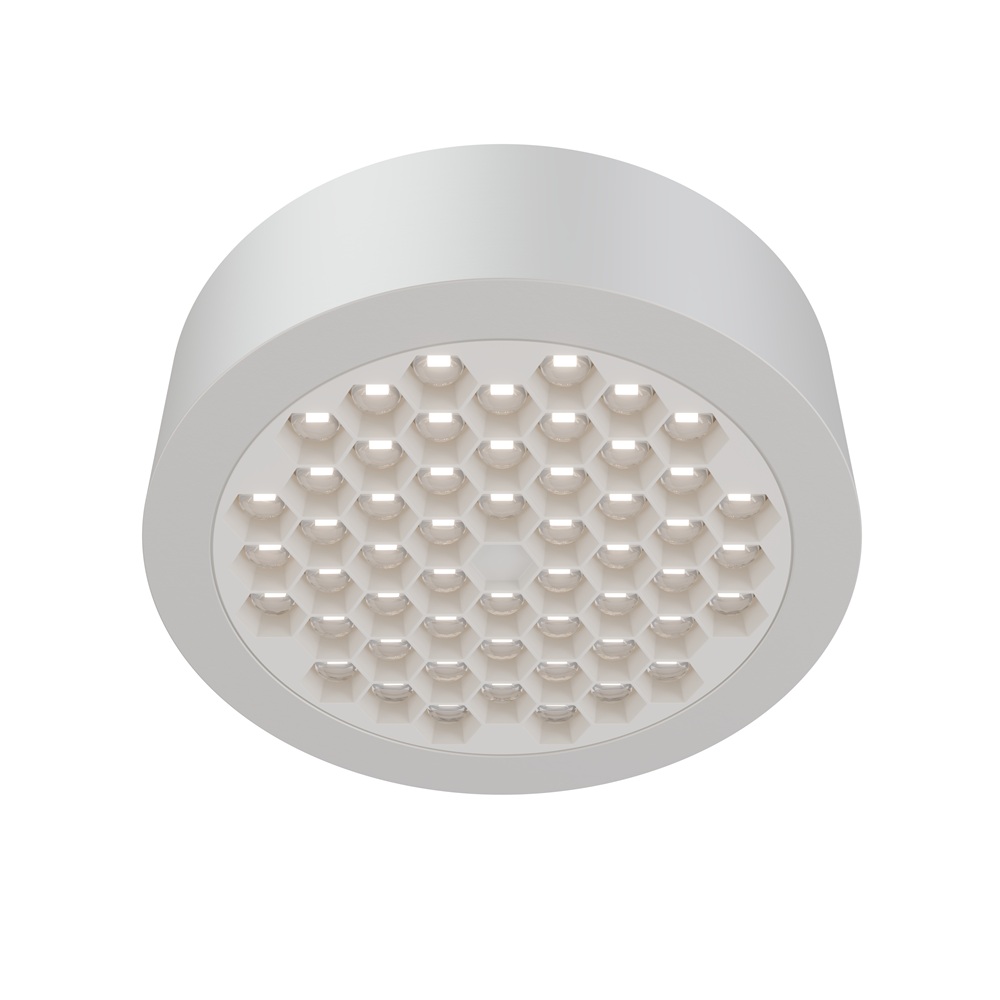

• Standard body colours: white or black (other colours on request)
• Louvre: white or black, matt finish
• Diameter: Ø 190 mm
This luminaire is an excellent choice for the illumination of corridors and similar spaces.
| Mounting method: | Surface mounting | Protection class: | II | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Anti-glare limiting UGR: | 19 | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Fit for monitor workplace: | Yes | Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Product category: | Downlight | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 | MODUS SMART: | Bluetooth Bluetooth |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Suitable for surface mounting
HEX1000P4BB60/190/ND
Effective luminous flux (lm): 1100
System power (W): 7
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX1000P4CC60/190/ND
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX1500P3CC60/190/DALI
Effective luminous flux (lm): 1400
Color temperature (K): 3000
Suitable for surface mounting: Yes
HEX1500P4BC60/190/ND
Effective luminous flux (lm): 1400
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX2000P3BC60/190/DALI
Effective luminous flux (lm): 2100
System power (W): 15
Color temperature (K): 3000
Suitable for surface mounting: Yes
HEX2000P4BB60/190/ND
Effective luminous flux (lm): 2200
System power (W): 15
HEX2000P4CC60/190/ND
Effective luminous flux (lm): 2100
System power (W): 15
Color temperature (K): 4000
Suitable for surface mounting: Yes
