Product series MODUS HEX

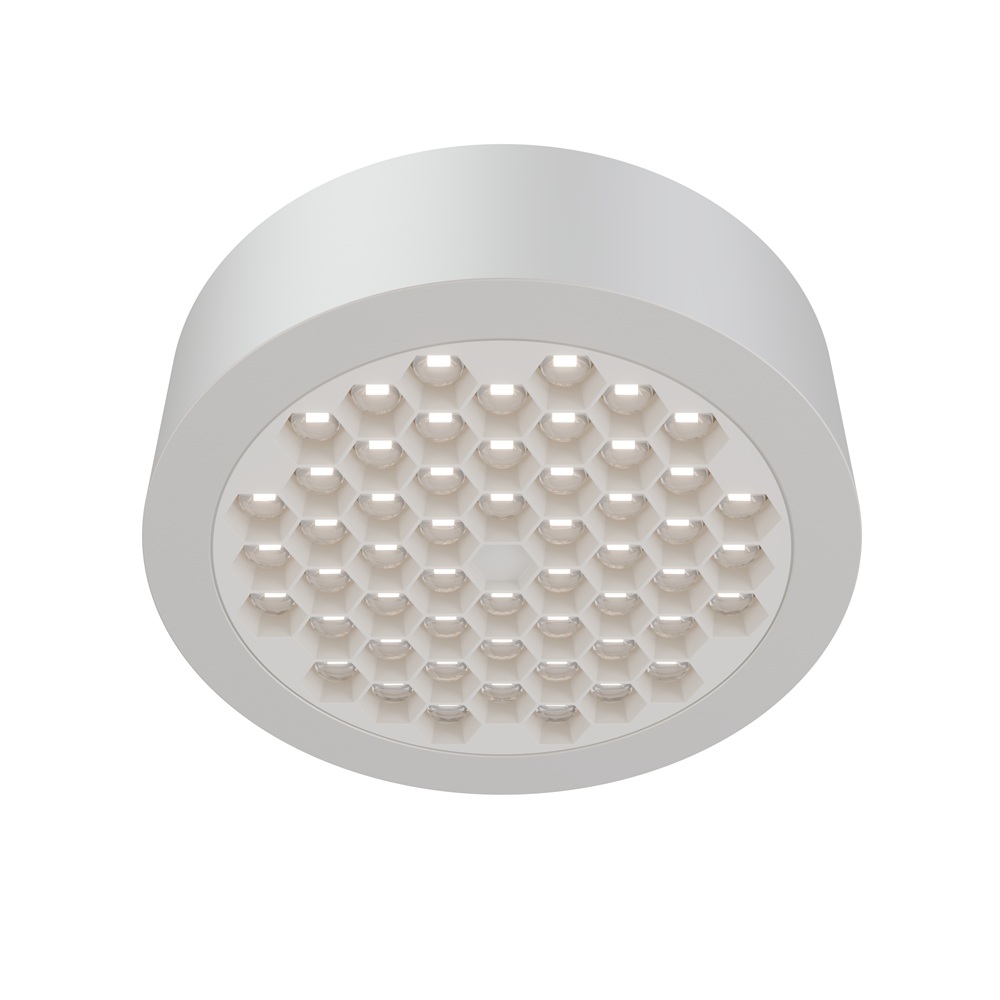

Light fitting HEX 1000, ceiling, 190mm, white body, white optic, lenses 60°, LED 840
Kruhové svítidlo UGR<19
Code: HEX1000P4BB60/190/ND
EAN: 8596099172725
Luminaire properties
| Product category: | Downlight/spot/floodlight | Effective luminous flux (lm): | 1100 | System power (W): | 7 | Luminaire efficacy (lm/W): | 157 |
| Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP20 | Color housing: | White | Surface protection: | Lacquered | Material housing: | Steel |
| Light source included: | Yes | Suitable for surface mounting: | Yes | Suitable for ceiling mounting: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 4000 | Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
Dimensions
| Outer diameter (mm): | 184 | Built-in diameter (mm): | 184 | Weight (kg): | 0,65 |
Electrical values
| Protection class: | II | Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
| Control gear included: | Yes | Type of wiring: | Ending | No dim function: | Yes |
Optical system
| Anti-glare limiting UGR: | 19 | Light sharing: | Symmetric |
LDT data does not exist for this item
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Suitable for surface mounting
HEX1000D4BB60/190/ND
Effective luminous flux (lm): 1100
System power (W): 7
Color temperature (K): 4000
HEX1000P4BB60/190/ND
Effective luminous flux (lm): 1100
System power (W): 7
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX1000P4CC60/190/ND
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX1500D3CC60/190/DALI
Effective luminous flux (lm): 1400
Color temperature (K): 3000
HEX1500D4BB60/190/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
HEX1500D4BB60/190/NDPIR
Effective luminous flux (lm): 1500
Color temperature (K): 4000
HEX1500P3CC60/190/DALI
Effective luminous flux (lm): 1400
Color temperature (K): 3000
Suitable for surface mounting: Yes
HEX1500P4BC60/190/ND
Effective luminous flux (lm): 1400
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX2000D4BB60/190/DALI
Effective luminous flux (lm): 2200
System power (W): 15
HEX2000D4BB60/190/ND
Effective luminous flux (lm): 2200
System power (W): 15
Color temperature (K): 4000
HEX2000P3BC60/190/DALI
Effective luminous flux (lm): 2100
System power (W): 15
HEX2000P4CC60/190/ND
Effective luminous flux (lm): 2100
System power (W): 15
Color temperature (K): 4000
Suitable for surface mounting: Yes
