Product series New

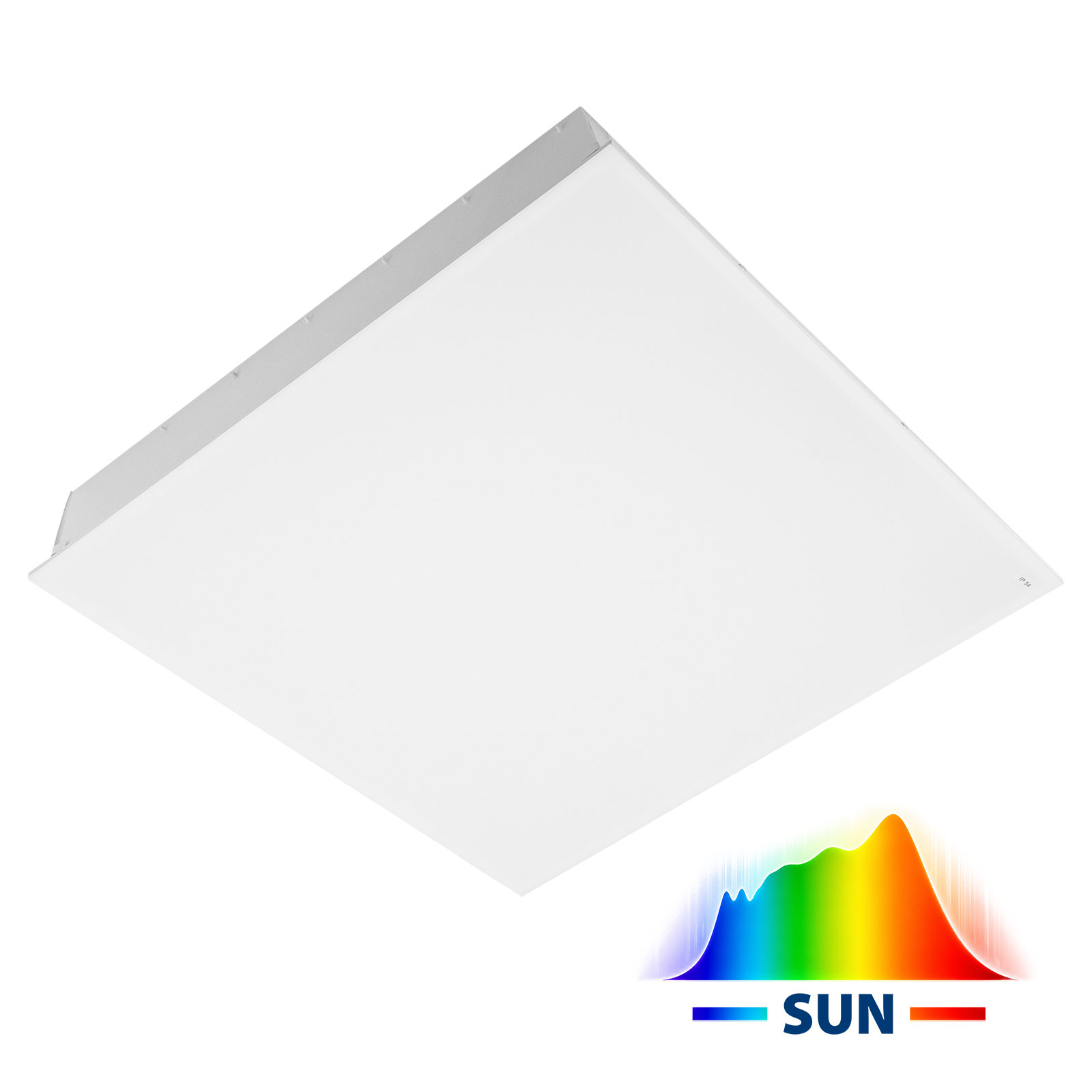

MODUS IBP SUN
Recessed LED luminaire fitted with full-spectrum chips
Standard price from:
On request
| Body material: | White painted steel | Mounting method: | Built-in | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 90-100 | Light source type: | LED | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP54 | Color temperature (K): | 4000, 5000 |
| Rated lifetime L70/B50 (h): | 100000 100000 | Dimming DALI: | Yes | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, removeable ballast Removeable light source, removeable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
IBP4000A4SUNKN600ND
Effective luminous flux (lm): 4150
System power (W): 41
Color temperature (K): 4000
Optical system: KN
Length (mm): 596
IBP4000A5SUNKN600ND
Effective luminous flux (lm): 4350
System power (W): 41
Color temperature (K): 5000
Optical system: KN
Length (mm): 596
IBP4000C4SUNKN600ND
Effective luminous flux (lm): 4000
System power (W): 41
Color temperature (K): 4000
Optical system: KN
Length (mm): 1196
IBP5000A4SUNKN600ND
Effective luminous flux (lm): 5300
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Length (mm): 596
