MODUS IKL

Product series MODUS IKL

12 CCT_4000.jpg
220-240 v.png

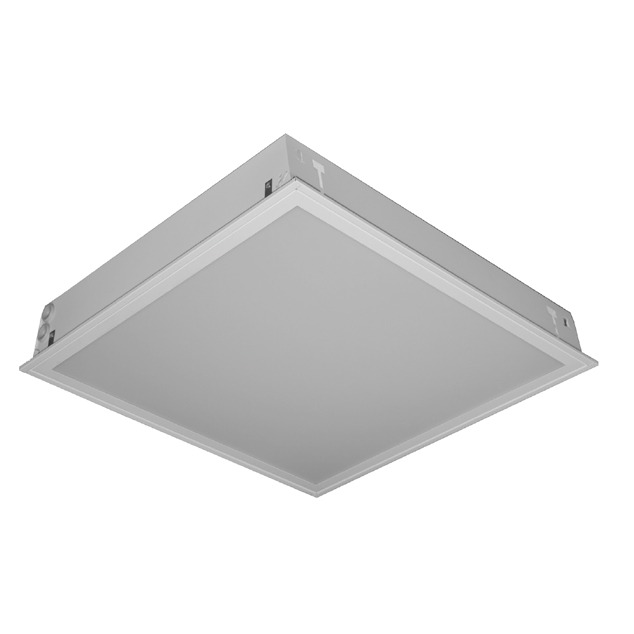

MODUS IKL4000, recessed into plasterboard ceiling, square A 600, prizmatic cover, LED 840

Recessed LED fitting

Code: IKL4000A4KN600ND
EAN: 8596099106744
Distribution network
Contacts

Luminaire properties

Product category:Ceiling / wall luminairesEffective luminous flux (lm):4400
System power (W):32Luminaire efficacy (lm/W):138
Degree of protection (IP):IP40Color housing:White
Material housing:SteelLight source included:Yes
Suitable for built-in mounting:Yes
Made in Czech republic:Yes
Degree of protection II (IP):IP20

Light source

Light source type:LEDColor temperature (K):4000
Color rendering index CRI:80-89Replaceability:Removeable light source, replaceable ballast

Optical system

Optical system:KNLight outlet:Direct
Anti-glare limiting UGR:19Light sharing:Symmetric
Material cover:Plastic, structuredFit for monitor workplace:Yes

Dimensions

Length (mm):596Width (mm):596
Height/depth (mm):90Built-in length (mm):576
Built-in width (mm):576Built-in height/depth (mm):95
Raster (mm):600Weight (kg):3

Electrical values

Voltage type:ACType of control gear:LED operating device current-controlled
Nominal voltage (V):220...240Control gear included:Yes
No dim function:Yes
LDT files >
