Product series New
MODUS OC
Street lighting with aluminium body
Standard price from:
On request

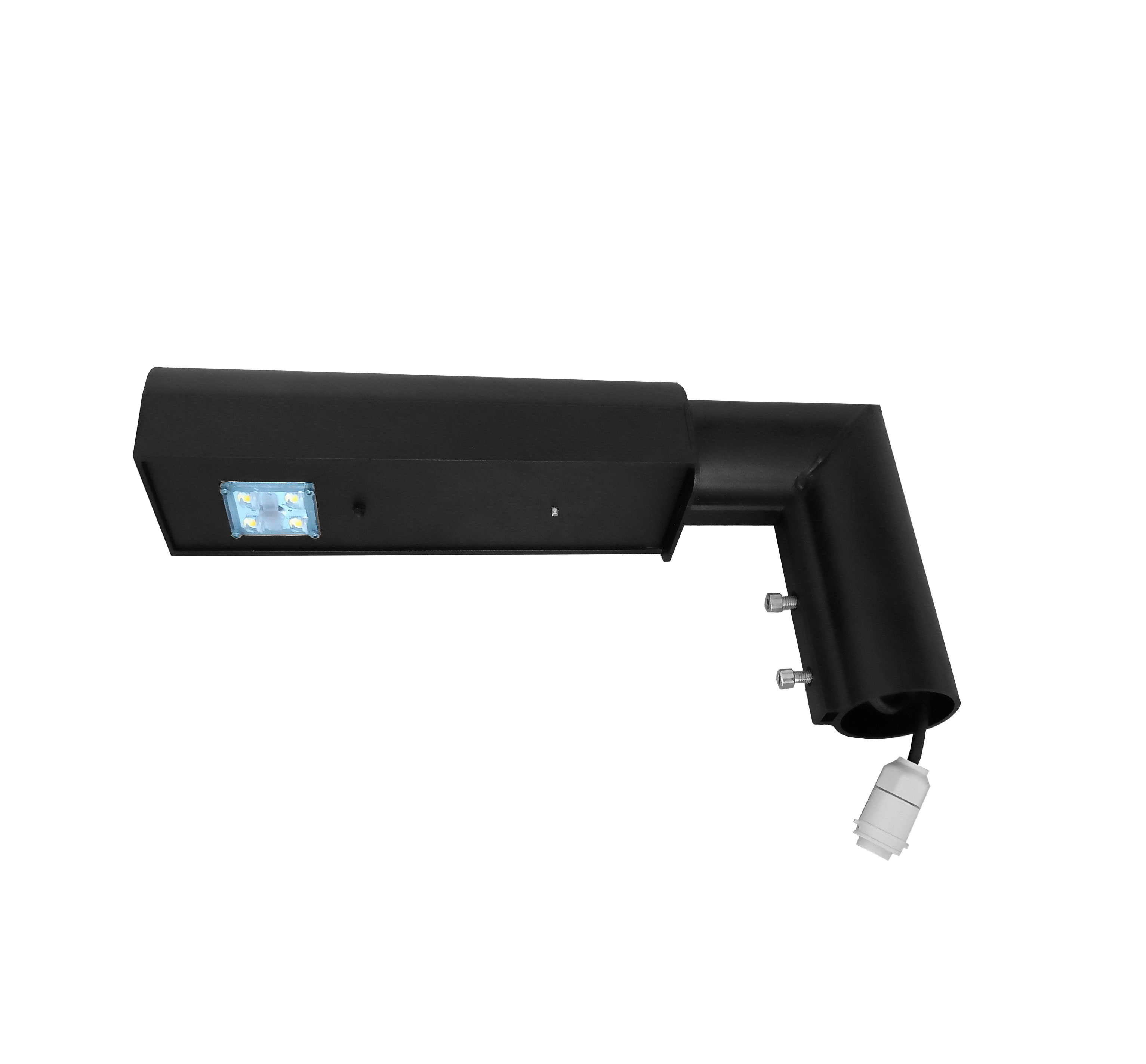

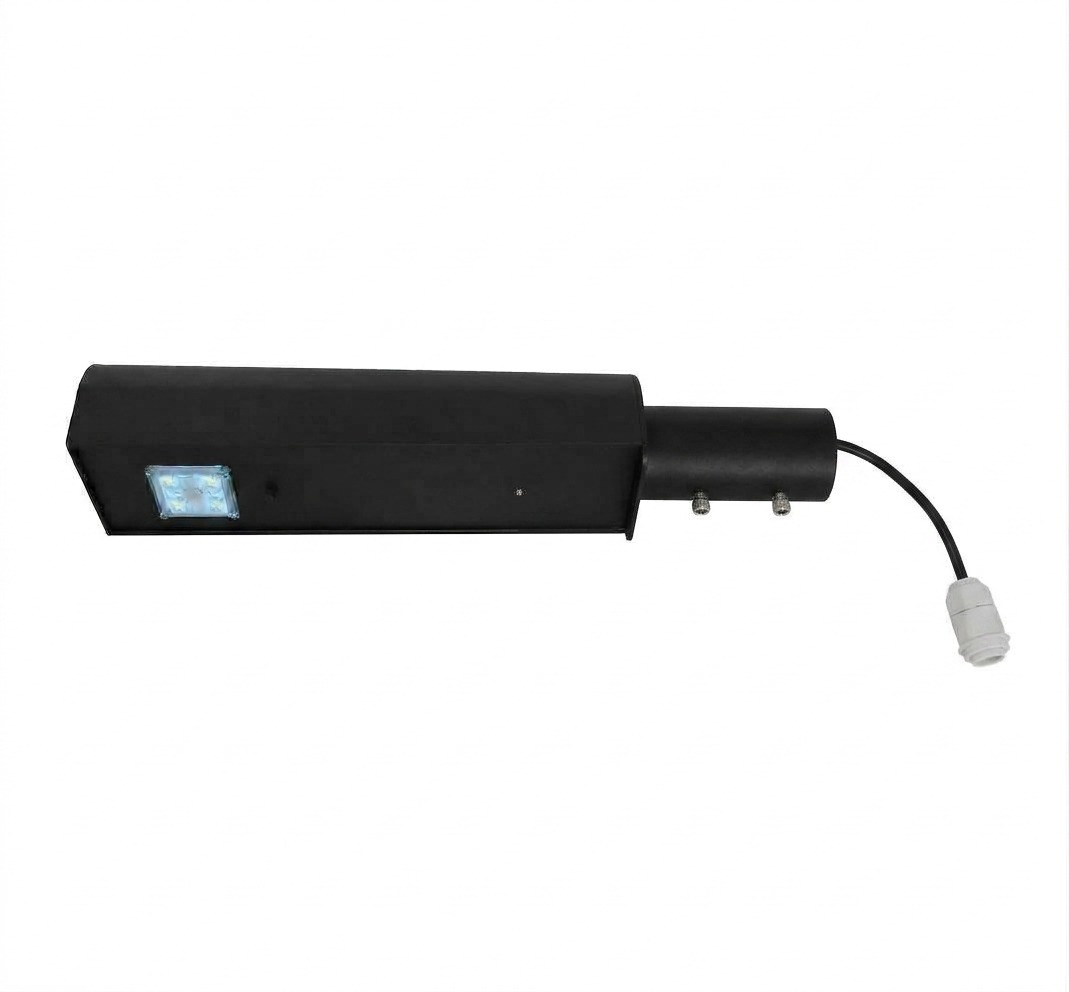

Luminaire with black (optionally in grey) powder-coated aluminum body primarily intended for lighting sidewalks and cycle paths. Mounting on a flange for bracket or flange for post with diameter of 60mm.
Optical system: polycarbonate lenses
R - optics for roads
S150 - symmetrical optics 150°
| Mounting method: | Side-entry, Post-top | Protection class: | II | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 70-79 | Light source type: | LED | Light outlet: | Direct | Impact strength: | IK08 | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 3000, 2700 | Rated lifetime L70/B50 (h): | 100000 | Product category: | Luminaire for streets and places | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
Product name
Effective luminous flux (lm)
Color temperature (K)
Optical system
Length (mm)
OC1000S2RC/NDV60
Effective luminous flux (lm): 1100
Color temperature (K): 2700
Optical system: R
Length (mm): 400
OC2500S2RC/NDS60
Effective luminous flux (lm): 2300
Color temperature (K): 2700
Optical system: R
Length (mm): 400
OC2500S2RC/NDV60
Effective luminous flux (lm): 2300
Color temperature (K): 2700
Optical system: R
Length (mm): 400
OC2500S2S150C/NDS60
Effective luminous flux (lm): 2300
Color temperature (K): 2700
Optical system: S150
Length (mm): 400
OC2500S4RC/NDS60
Effective luminous flux (lm): 2400
Color temperature (K): 4000
Optical system: R
Length (mm): 400
OC2500S4S150C/NDS60
Effective luminous flux (lm): 2400
Color temperature (K): 4000
Optical system: S150
Length (mm): 400
OC5000M3RC/NDV60
Effective luminous flux (lm): 4700
Color temperature (K): 3000
Optical system: R
Length (mm): 450
OC5000M4RC/NDV60
Effective luminous flux (lm): 4800
Color temperature (K): 4000
Optical system: R
Length (mm): 450
Product page - PDF
CE declaration
LDT files
