Product series MODUS OC

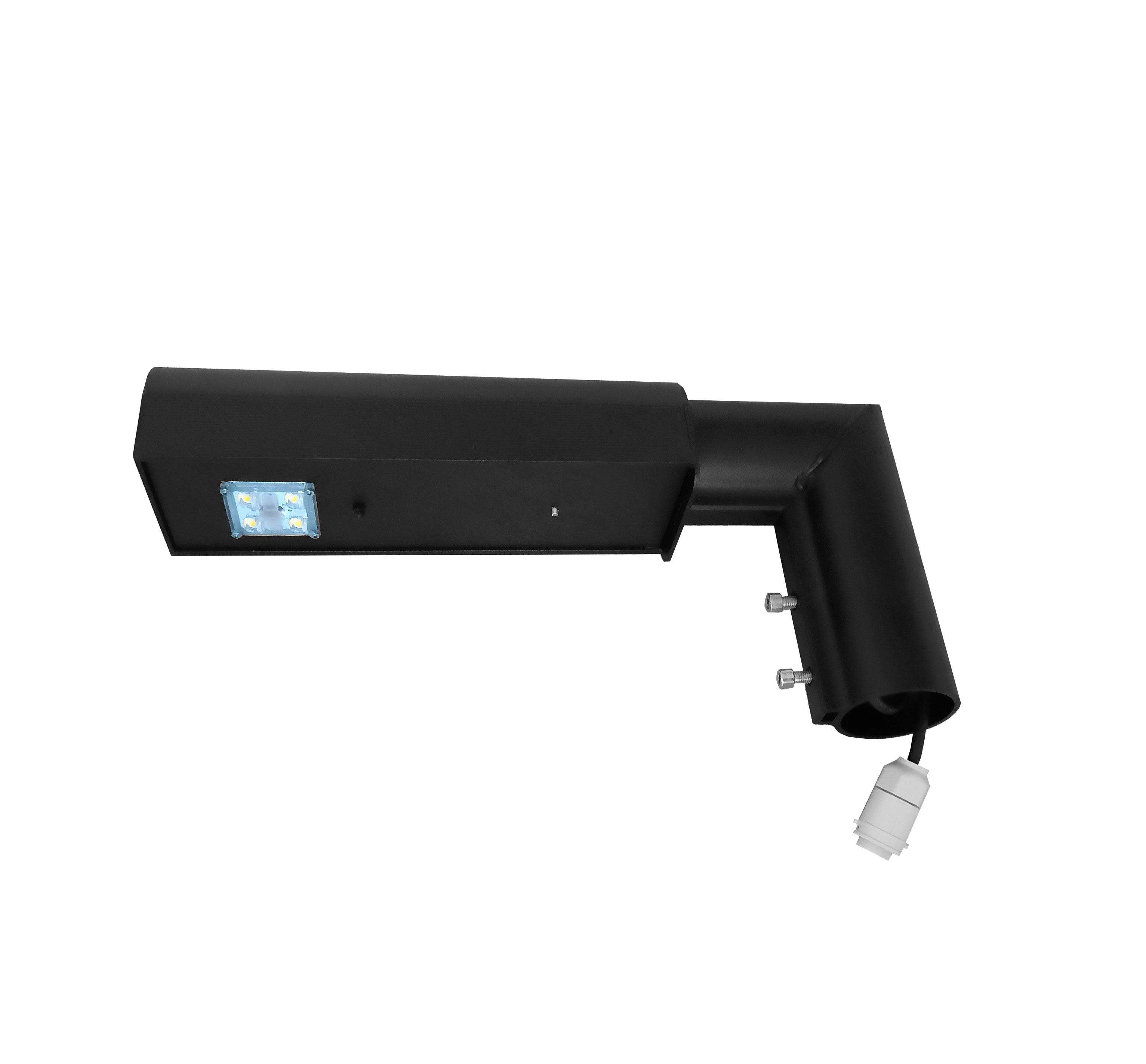

MODUS OC 2500, small black body, LED 727, road optic, fix output, flange for bracket diam. 60
Street lighting with aluminium body
Code: OC2500S2RC/NDV60
EAN: 8596099167448
Luminaire properties
| Product category: | Luminaire for streets and places | Effective luminous flux (lm): | 2300 | System power (W): | 19 | Luminaire efficacy (lm/W): | 121 |
| Degree of protection (IP): | IP65 | Mounting method: | Side-entry | Color housing: | Black | Surface protection: | Powder coating | Impact strength: | IK08 |
| Material housing: | Aluminium | Light source included: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 2700 | Color rendering index CRI: | 70-79 | Replaceability: | Replaceable light source by professional, replaceable ballast |
Optical system
| Optical system: | R |
Dimensions
| Length (mm): | 400 | Width (mm): | 104 | Height/depth (mm): | 88 | Suitable for top end size (mm): | 60 |
| Weight (kg): | 2,8 |
Electrical values
| Protection class: | II | Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
| Control gear included: | Yes |
LDT files >
LoadingFilters
Effective luminous flux (lm)
Product name
Effective luminous flux (lm)
Color temperature (K)
Optical system
Length (mm)
OC1000S2RC/NDV60
Effective luminous flux (lm): 1100
Color temperature (K): 2700
Optical system: R
Length (mm): 400
OC2500S2RC/NDS60
Effective luminous flux (lm): 2300
Color temperature (K): 2700
Optical system: R
Length (mm): 400
OC2500S2RC/NDV60
Effective luminous flux (lm): 2300
Color temperature (K): 2700
Optical system: R
Length (mm): 400
OC2500S2S150C/NDS60
Effective luminous flux (lm): 2300
Color temperature (K): 2700
Optical system: S150
Length (mm): 400
OC2500S4RC/NDS60
Effective luminous flux (lm): 2400
Color temperature (K): 4000
Optical system: R
Length (mm): 400
OC2500S4S150C/NDS60
Effective luminous flux (lm): 2400
Color temperature (K): 4000
Optical system: S150
Length (mm): 400
OC5000M3RC/NDV60
Effective luminous flux (lm): 4700
Color temperature (K): 3000
Optical system: R
Length (mm): 450
OC5000M4RC/NDV60
Effective luminous flux (lm): 4800
Color temperature (K): 4000
Optical system: R
Length (mm): 450
