Product series

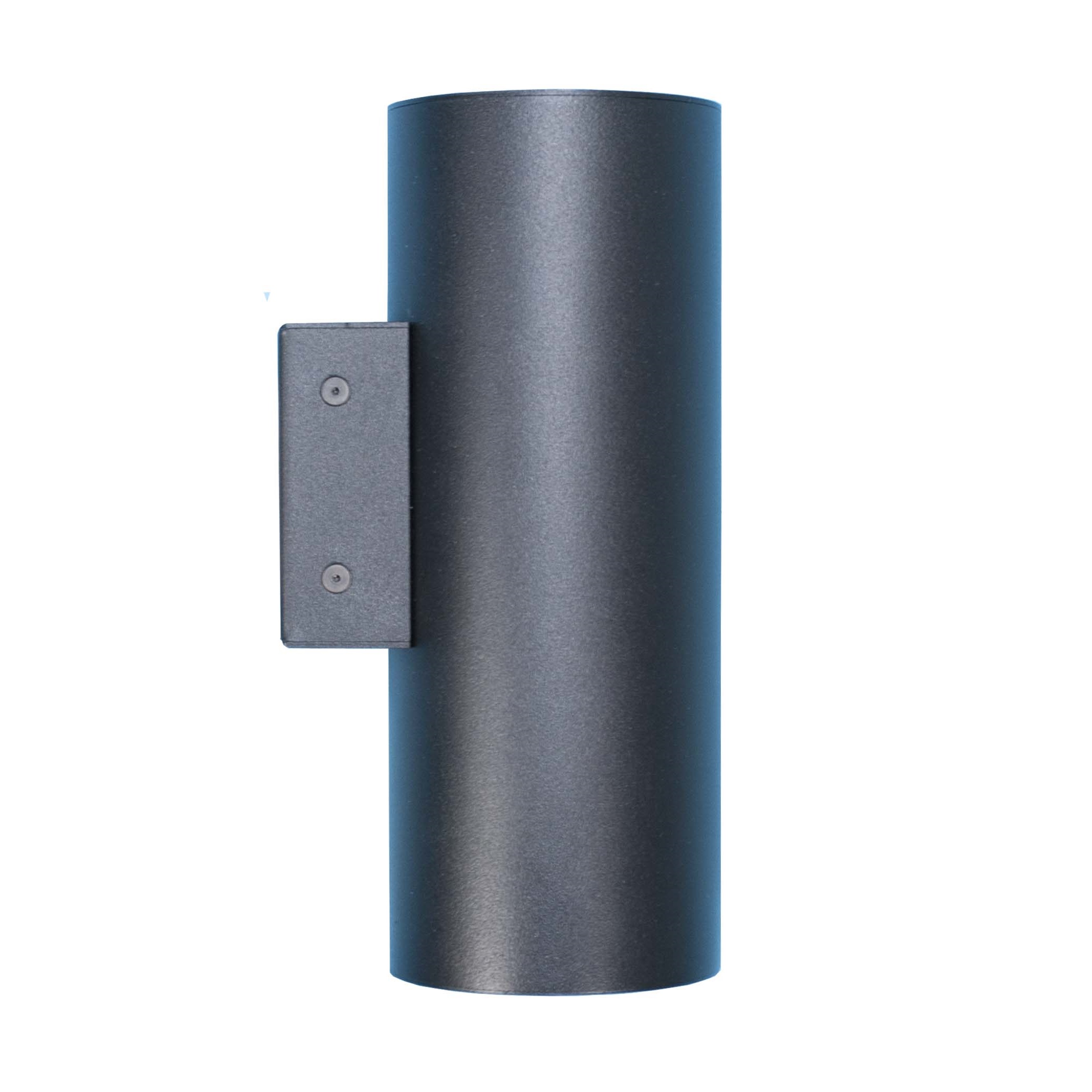

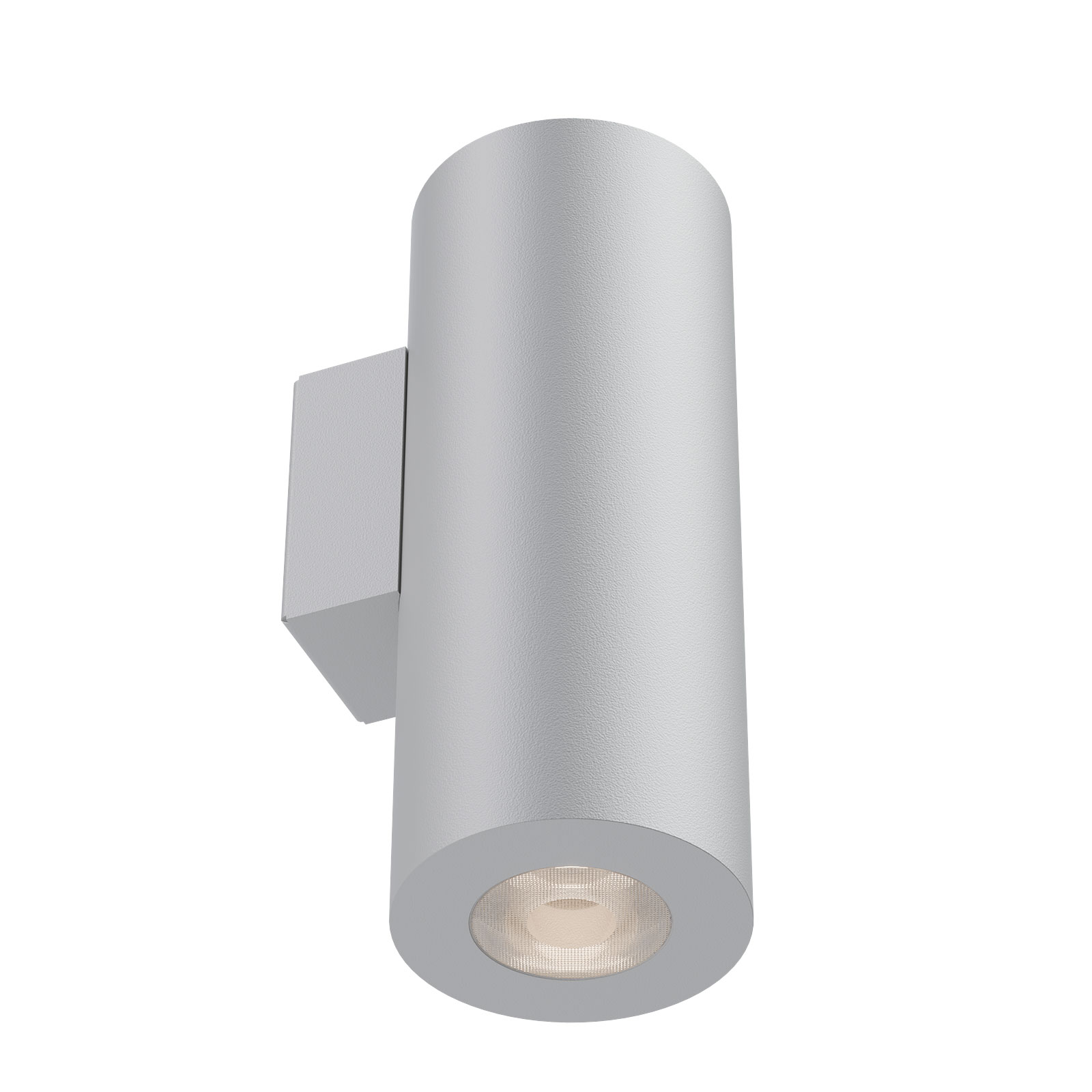

MODUS PAR S
Wall fitting aluminum luminaire
Standard price from:
On request
The body of the lamp is made of an aluminum profile. The standard painting is black, but it can be produced in silver or white, or other colors as required (RAL sample).
PAR Z - pendant fitting - the current supply is a transparent electrical supply with a Kevlar core (also used for hanging)
PAR D - recessed fitting (standard protection IP44, if required, a version with IP54 can be produced)
PAR S - wall fitting (only direct lighting or direct/indirect)
PAR P - ceiling surfaced fitting
PAR V - movable fitting (IP54)
The optical part of the lamp can be chosen from two types - a deep beam or a wide beam.
| Mounting method: | Wall mounted spot light D/I, Wall mounted direct spot light | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct, Direct/indirect | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20, IP40 |
| Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Product category: | Ceiling / wall luminaires | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
Product name
Effective luminous flux (lm)
Color temperature (K)
Color housing
PARS1000N3B/DI/ND
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Color housing: White
PARS1000N3B/ND
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Color housing: White
PARS1000N4C/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Color housing: Black
PARS1000W4/7016/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Color housing: Anthracite
PARS1000W4C/DI/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Color housing: Black
PARS1500N3B/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: White
PARS1500N3B/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: White
PARS1500N3C/DALI
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: Black
PARS1500N3C/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: Black
PARS1500N3C/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: Black
PARS1500W3C/DALI/S54
Effective luminous flux (lm): 1500
PARS1500W3C/DI/DALI/S54
Effective luminous flux (lm): 1500
PARS1500W3C/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Color housing: Black
PARS1500W4B/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Color housing: White
PARS1500W4B/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Color housing: White
PARS1500W4C/DI/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Color housing: Black
PARS1500W4C/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Color housing: Black
PARS3000W3C/DI/ND
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Color housing: Black
PARS700N3B/DI/ND
Effective luminous flux (lm): 750
Color temperature (K): 3000
Color housing: White
PARS700N3C/DI/ND
Effective luminous flux (lm): 750
Color temperature (K): 3000
Color housing: Black
PARS700N3C/ND
Effective luminous flux (lm): 750
Color temperature (K): 3000
Color housing: Black
PARS700W4/7016/ND
Effective luminous flux (lm): 750
Color temperature (K): 4000
Color housing: Anthracite
PARS700W4C/ND
Effective luminous flux (lm): 750
Color temperature (K): 4000
Color housing: Black
