MODUS TOP IP23

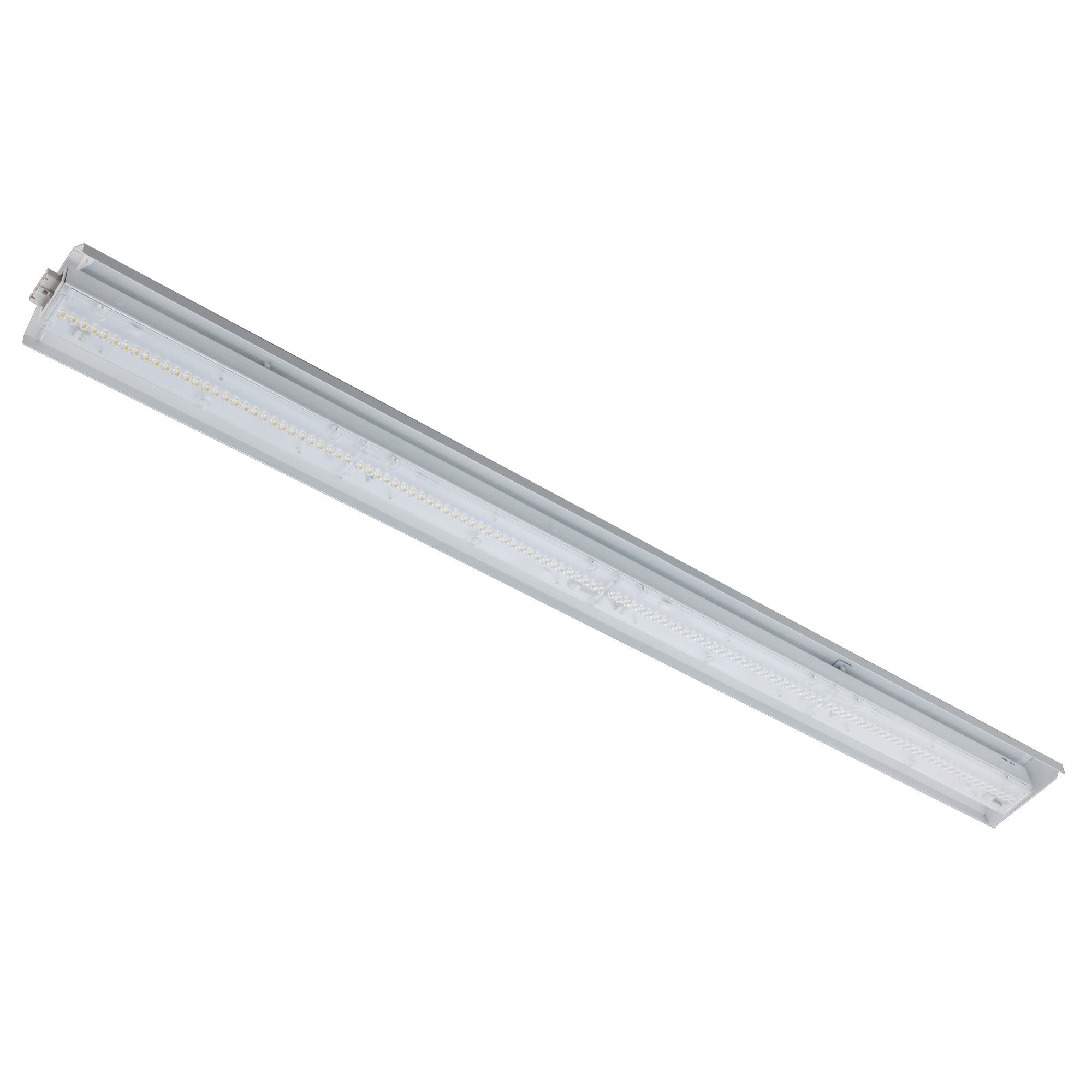

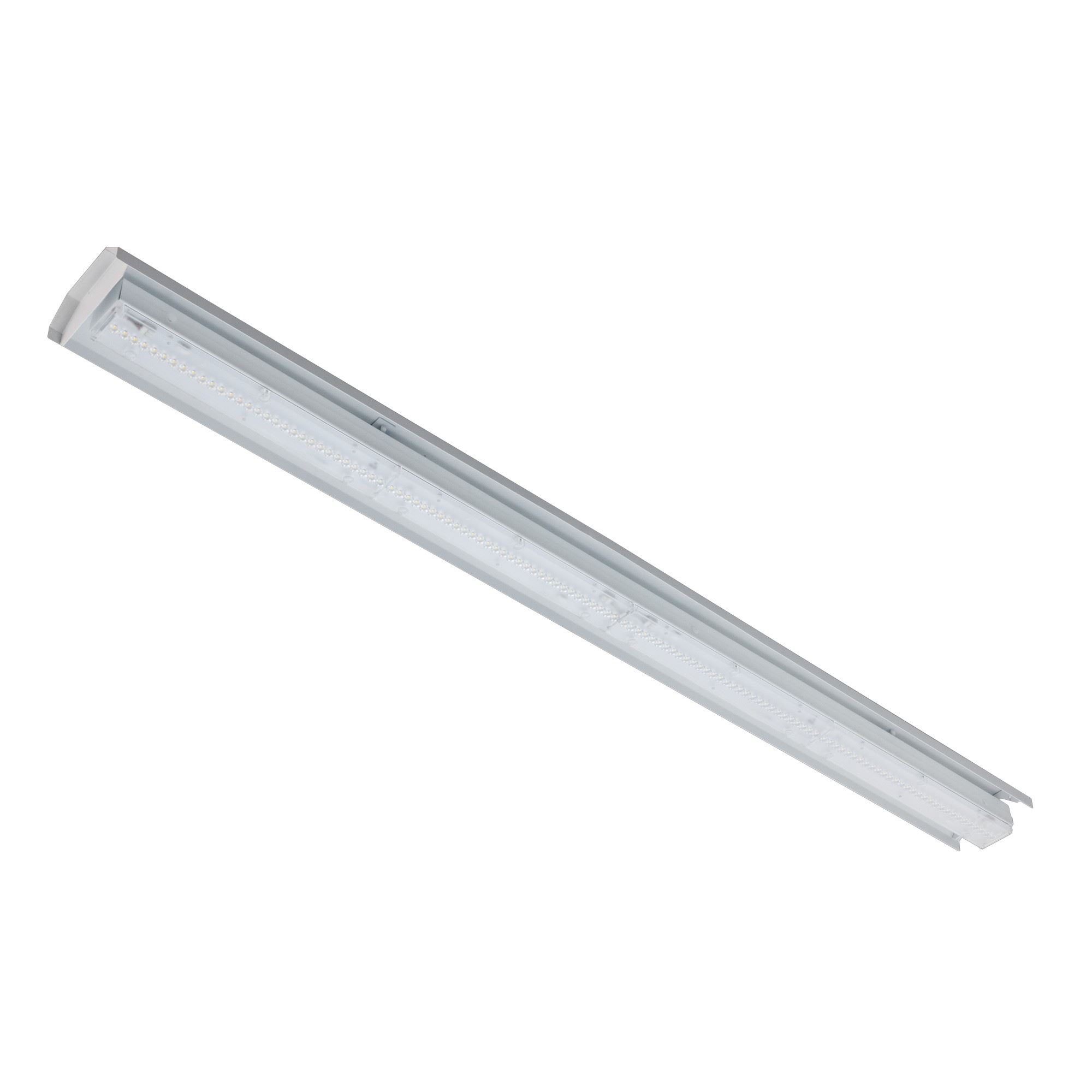

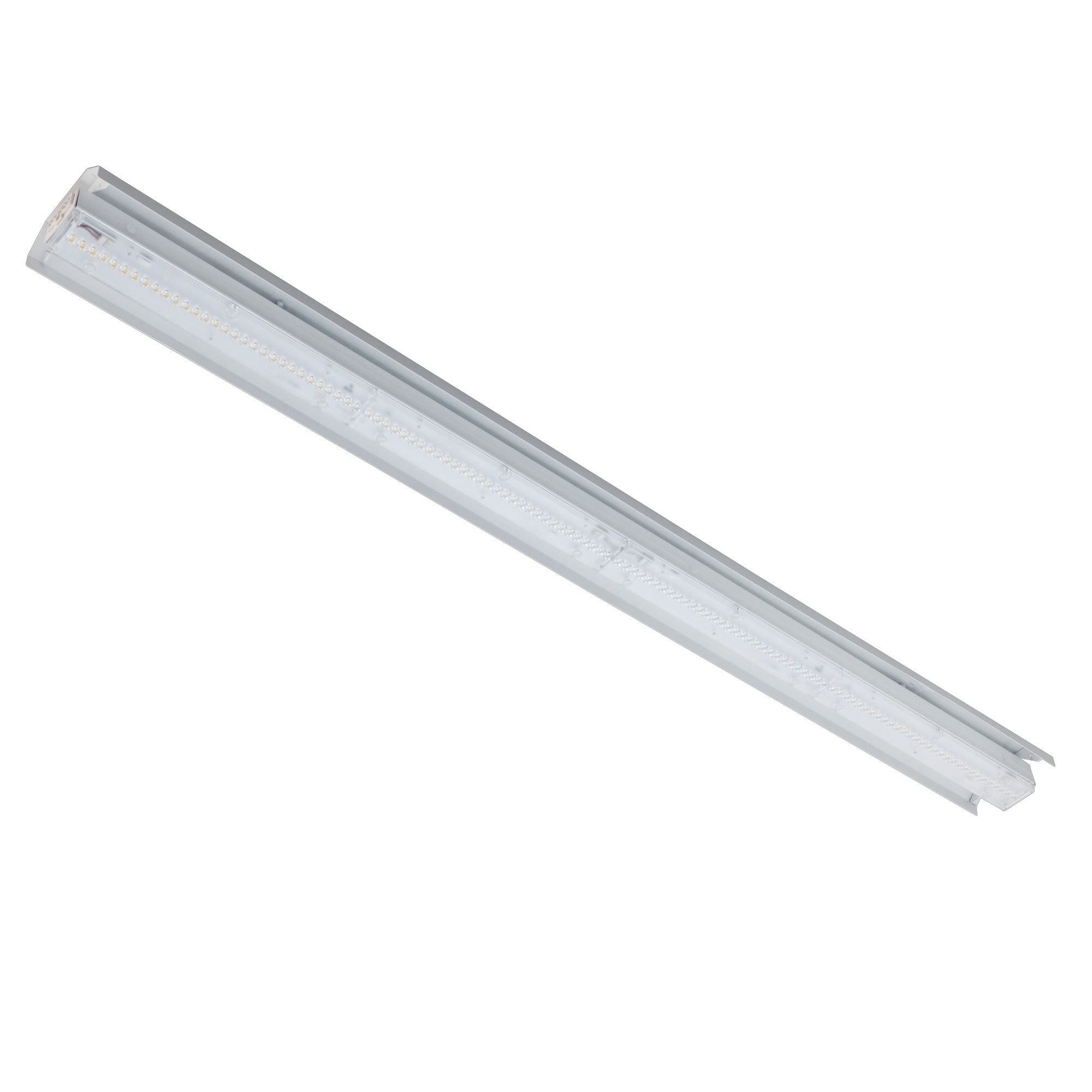

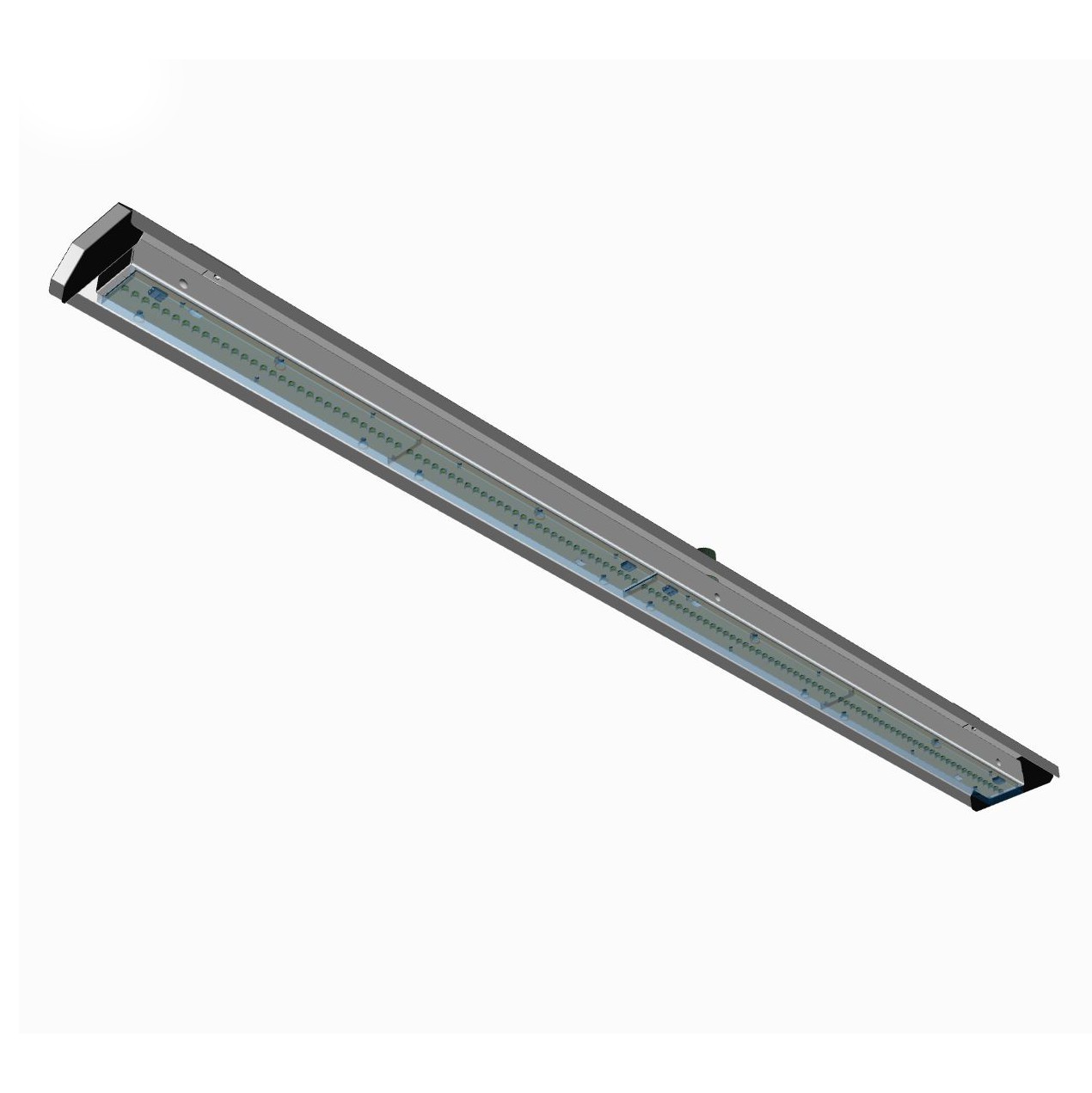

Linear luminaire with higher IP

MODUS TOP IP23
přisazené asymetrické.PNG
závěesné asymetrické.PNG
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

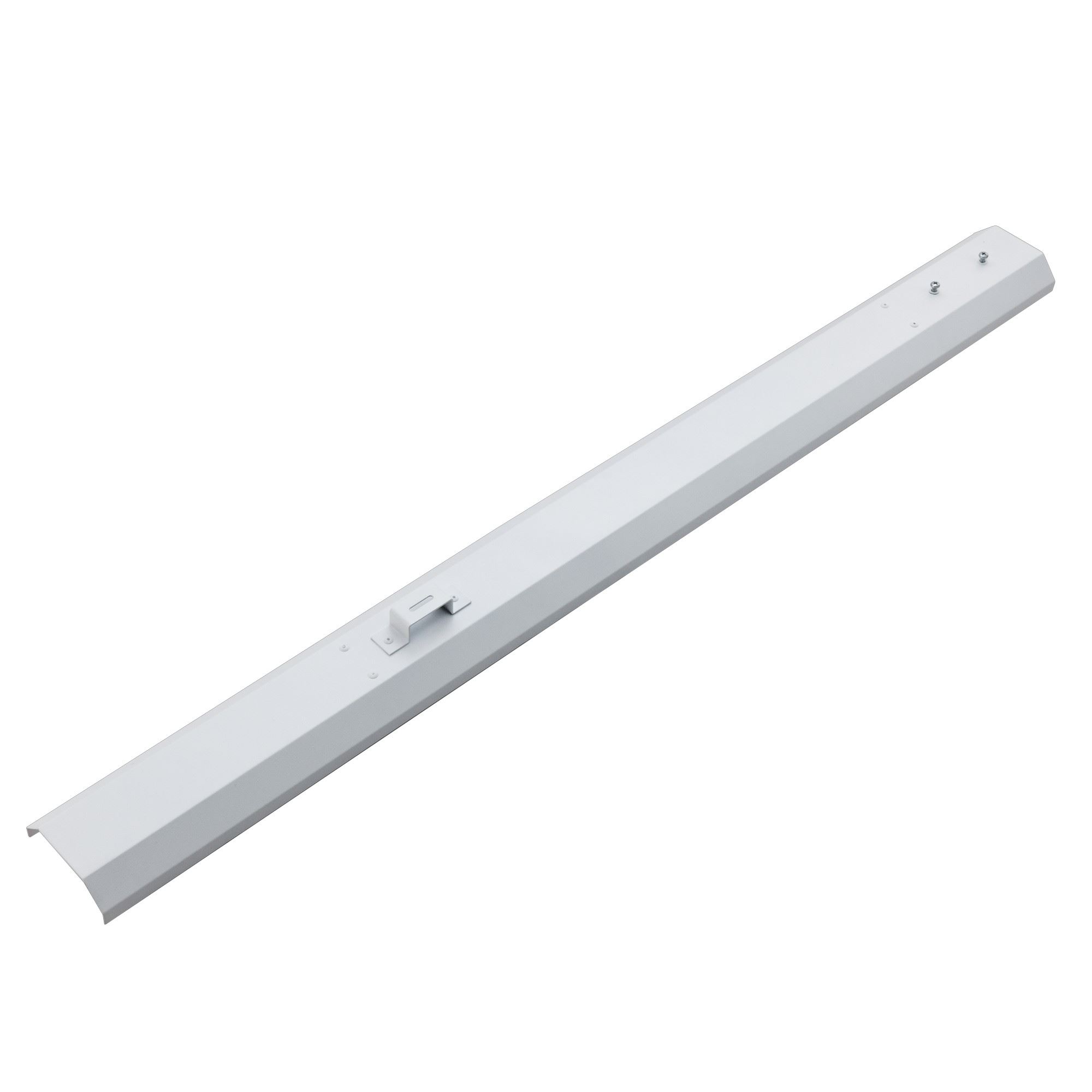

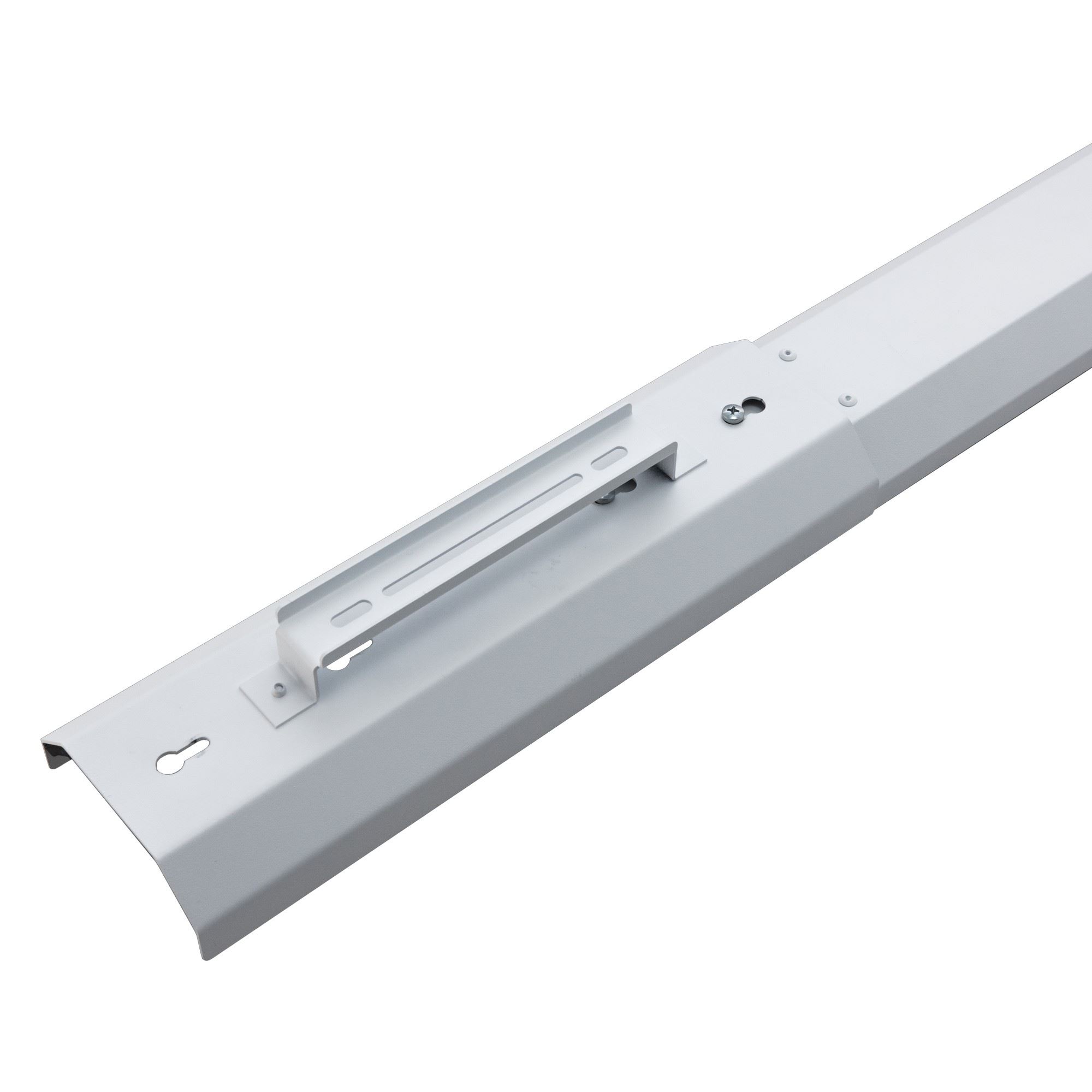

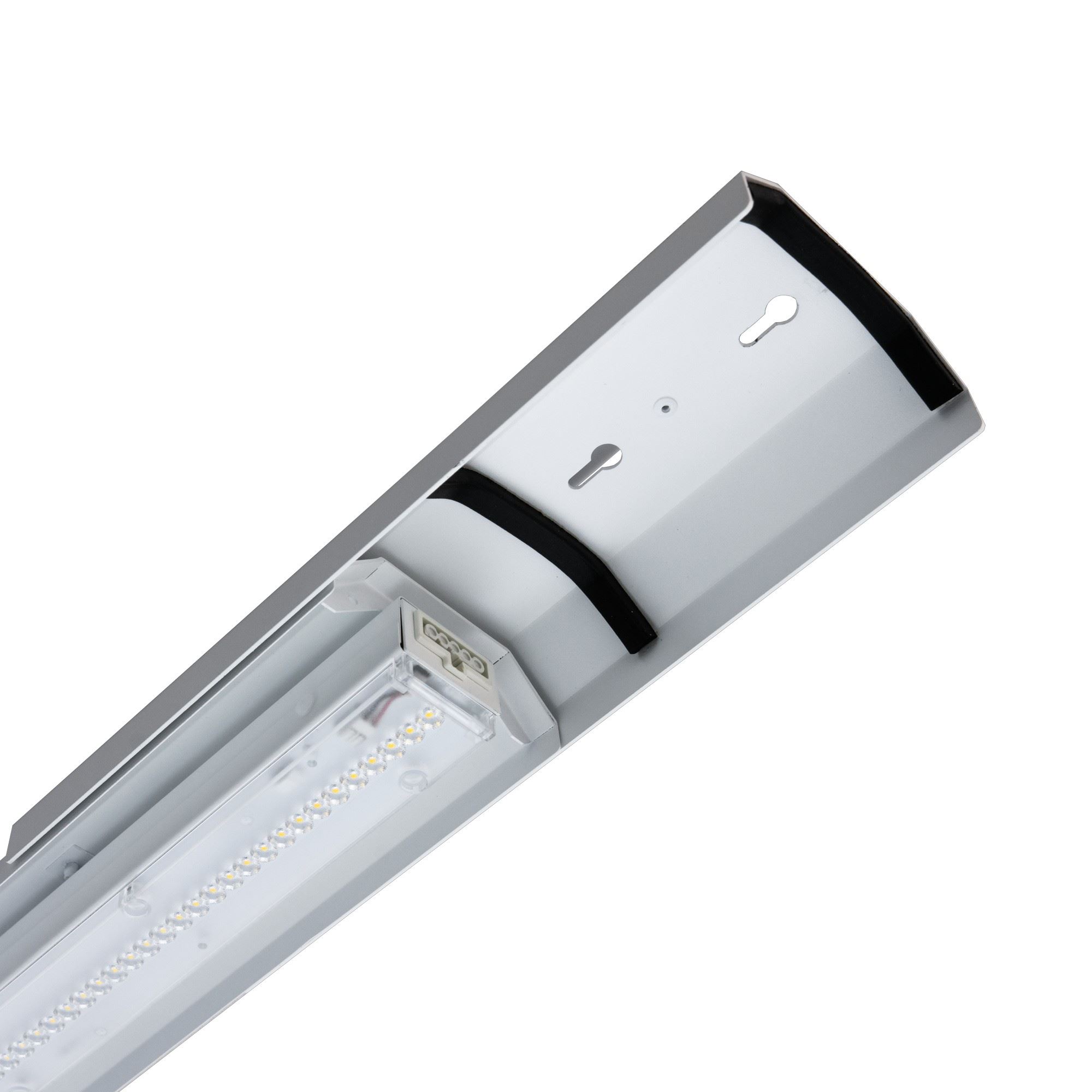

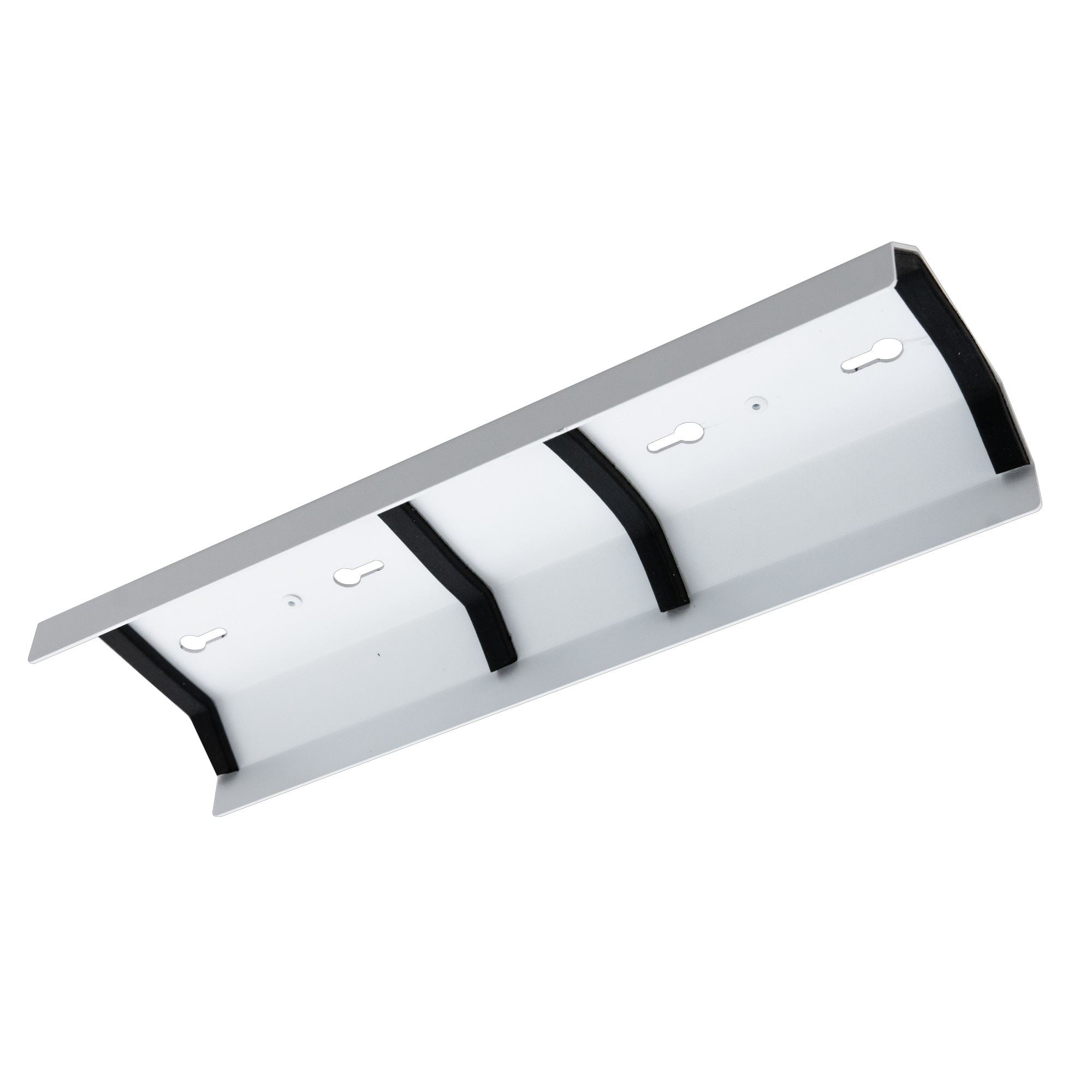

Luminaire is based on standard MODUS TOP model. Innovation is made by added the upper reflector, which is making IP protection from upper part, practially it is ideal when springlers are installed above luminaires.

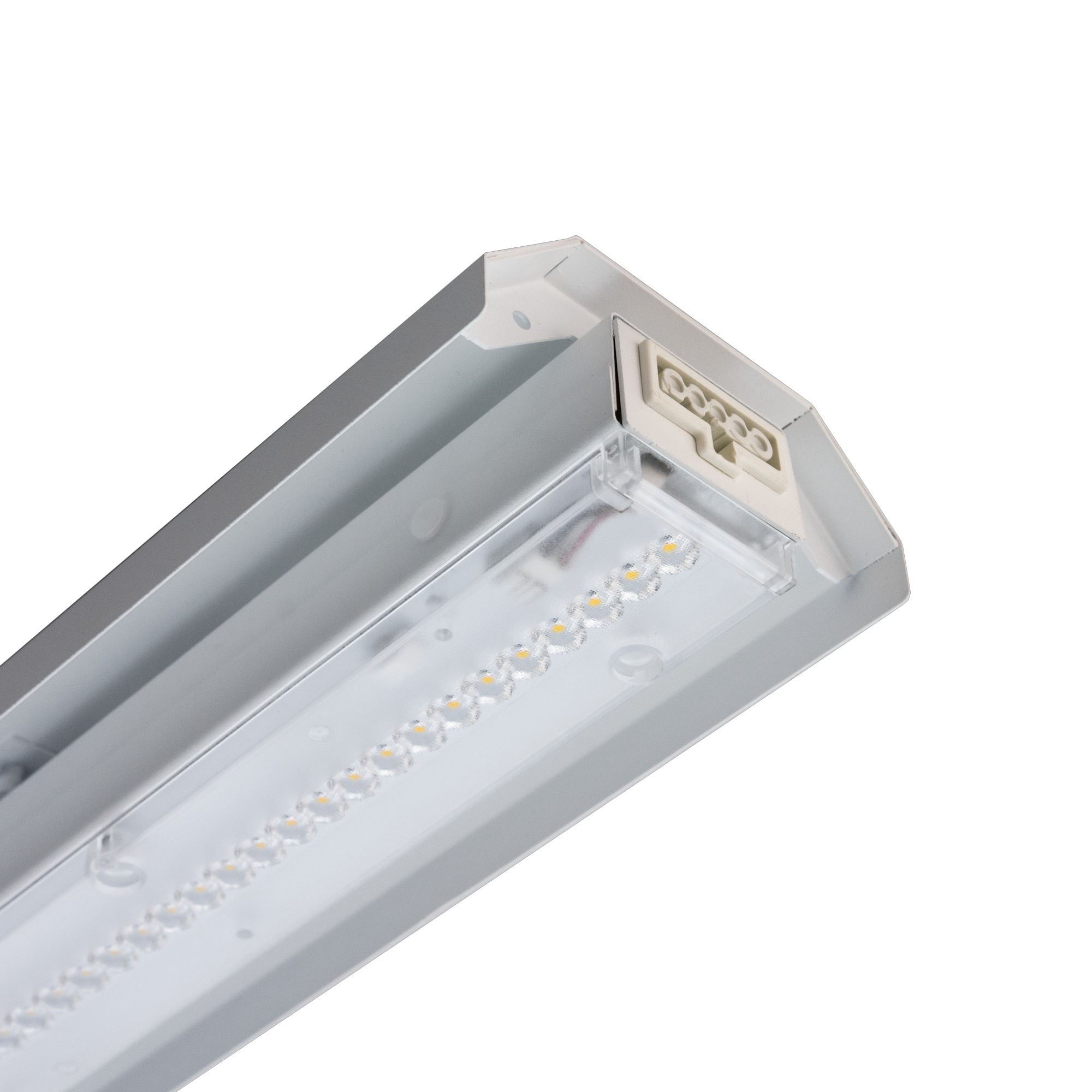

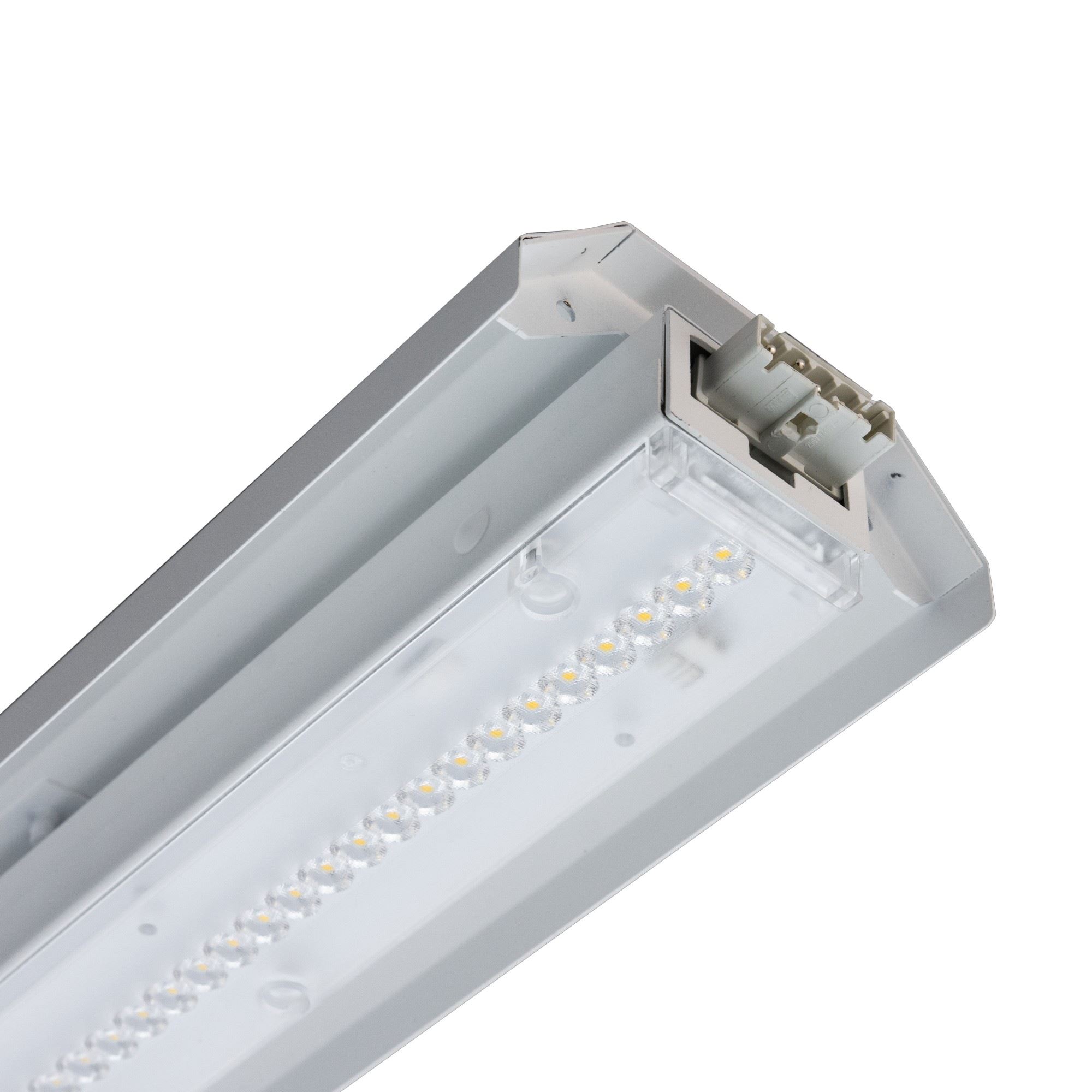

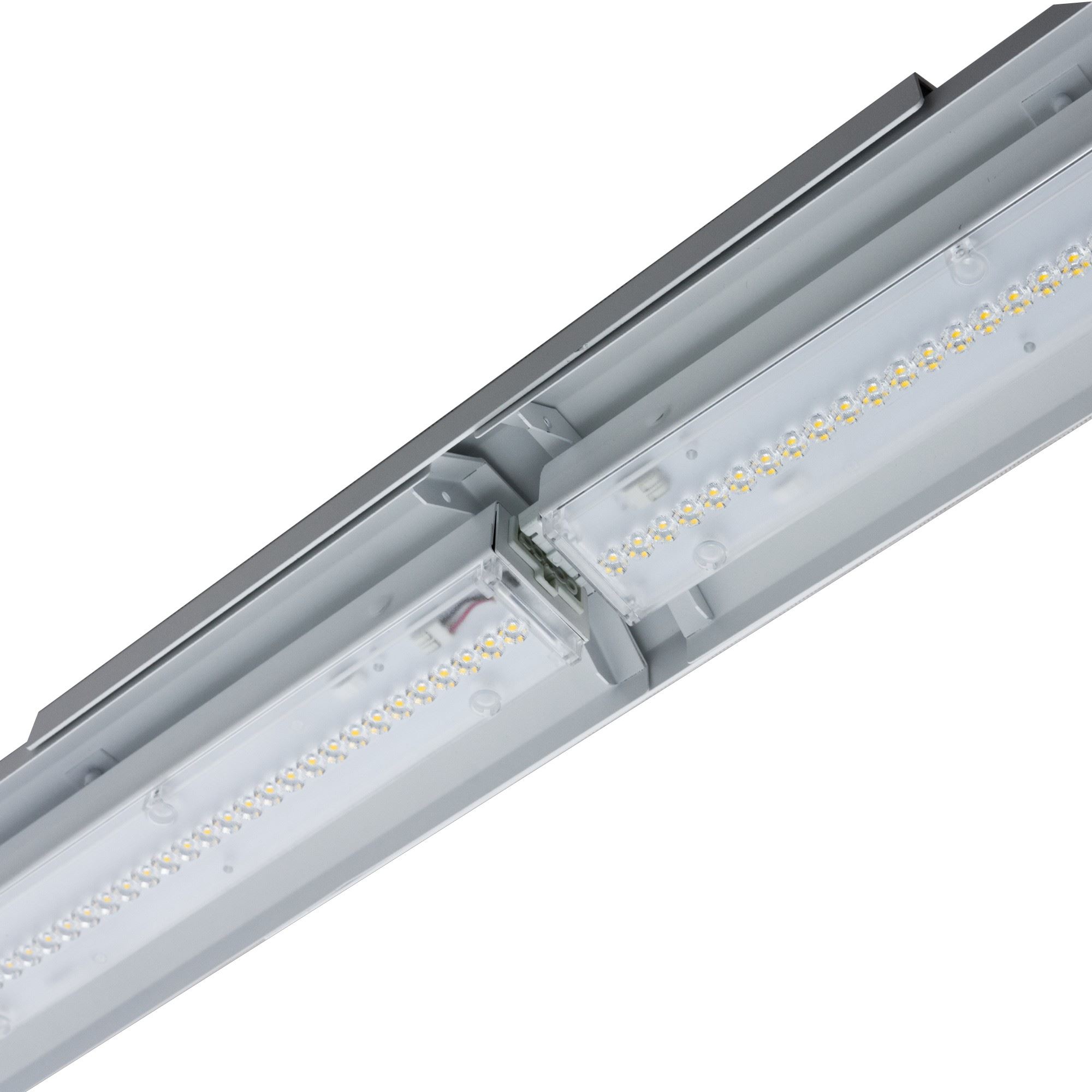

Optical system is the same as in normal model, there is possible to choose from different lighting characteristic (high rack, wide, extra wide, asymetric optics).

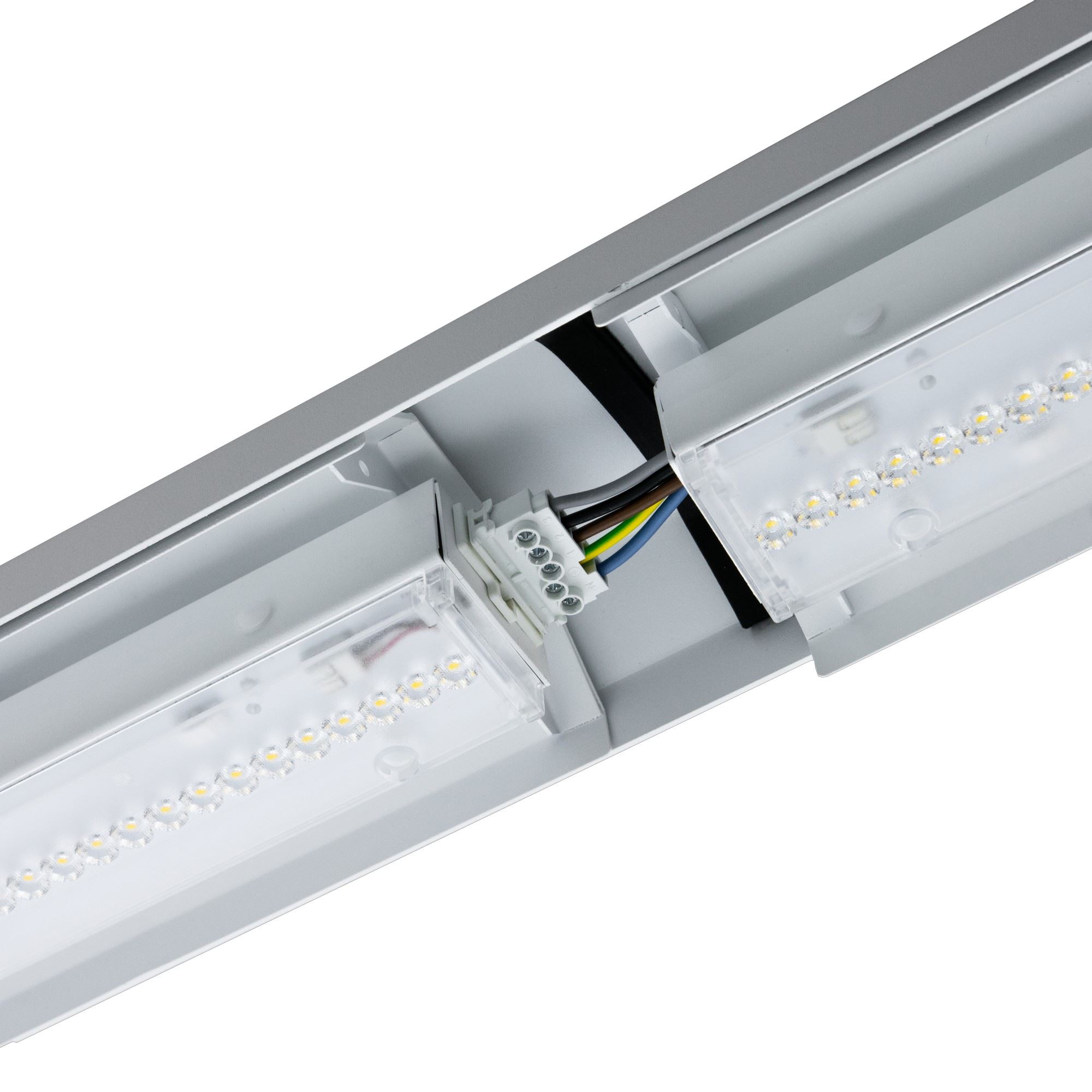

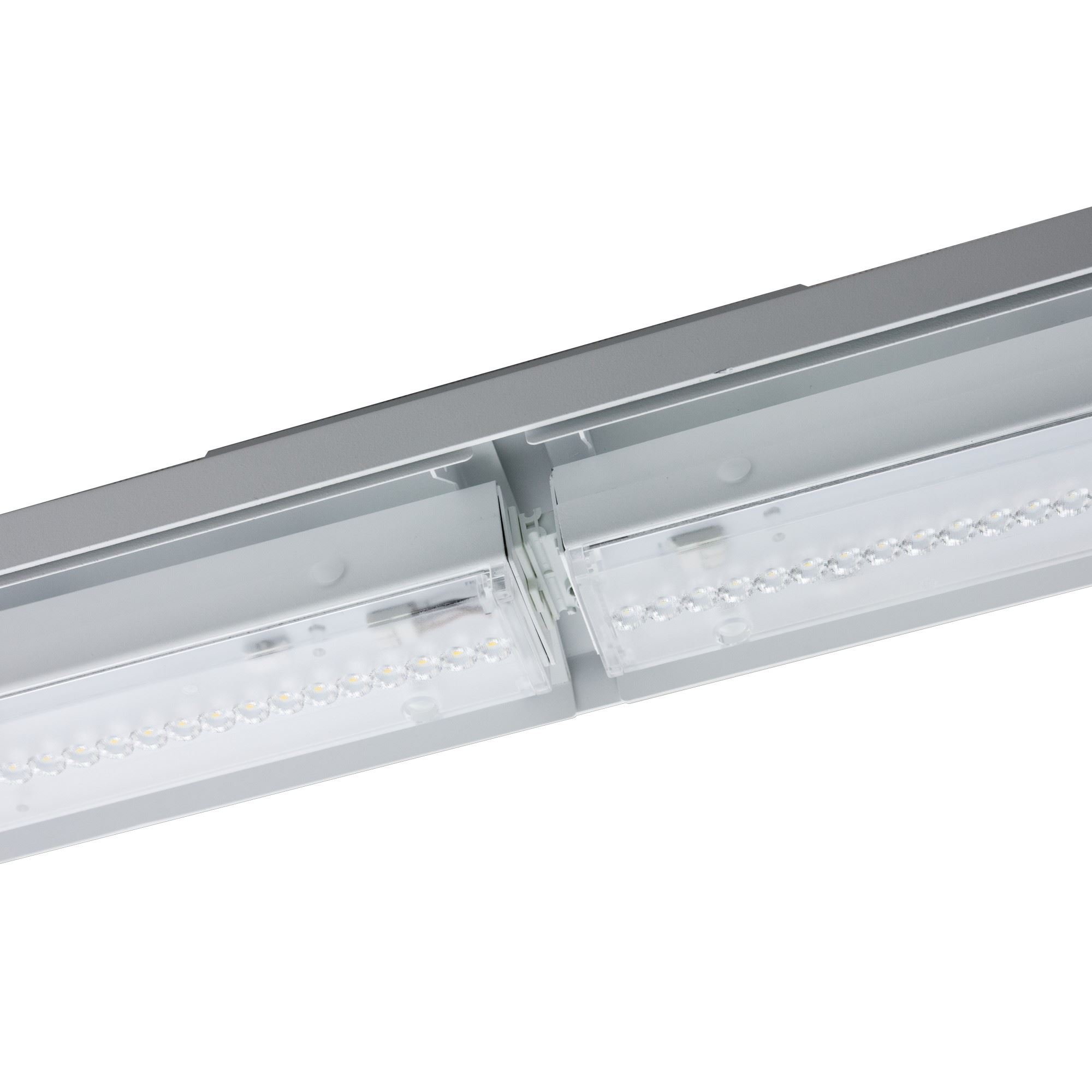

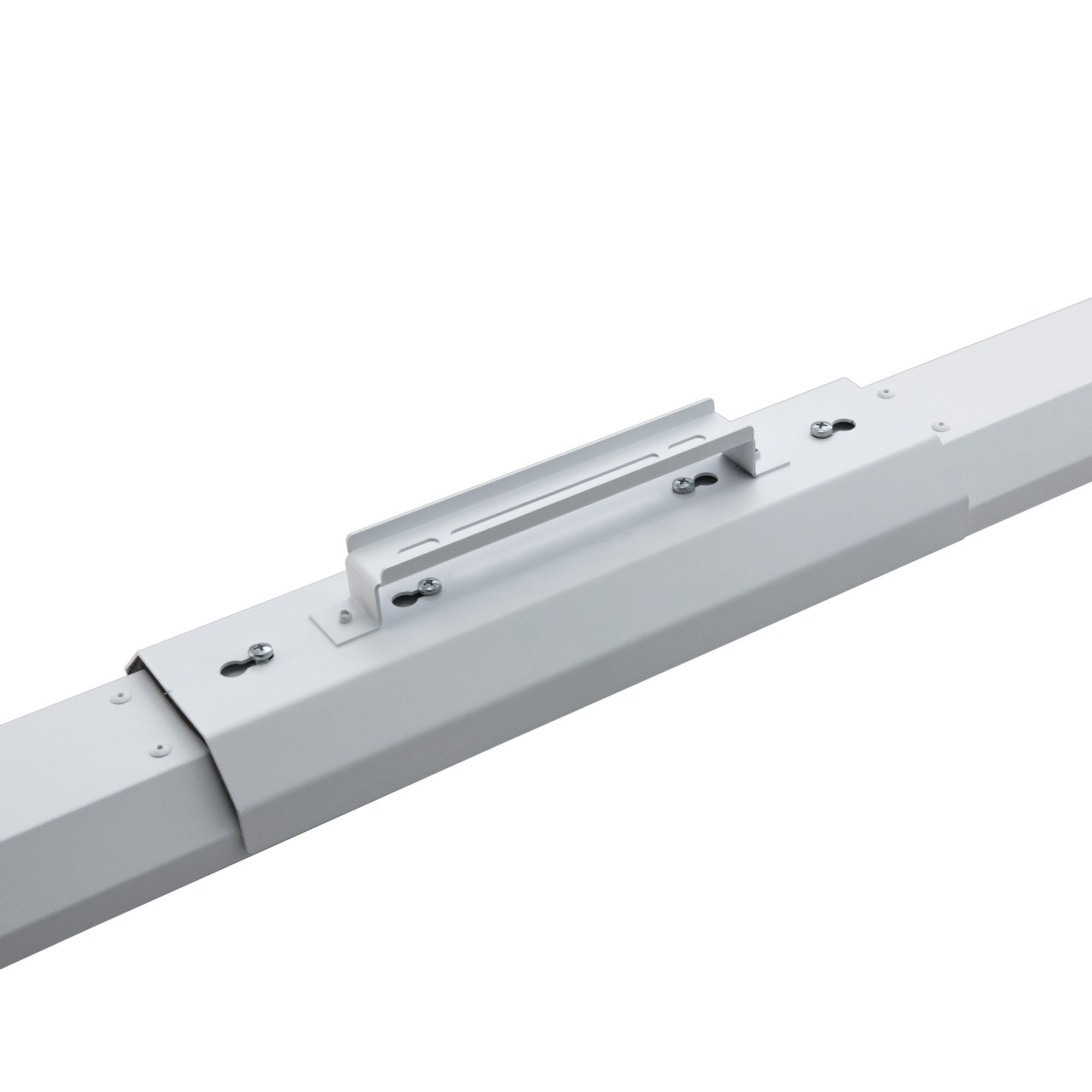

Luminaire can be made for solo installation or for continous assembly. When installed like continous assembly we recommend to use product "TOP IP23 SPOJ", which makes physical connection and electrical connection, also by this connection part the pending can be done.

Luminaire can be supplied with wireless Bluetooth control - more information here.

Size version:L
1500 mm
M
1200 mm
S
600 mm
XM
800 mm
Body material:White painted steel

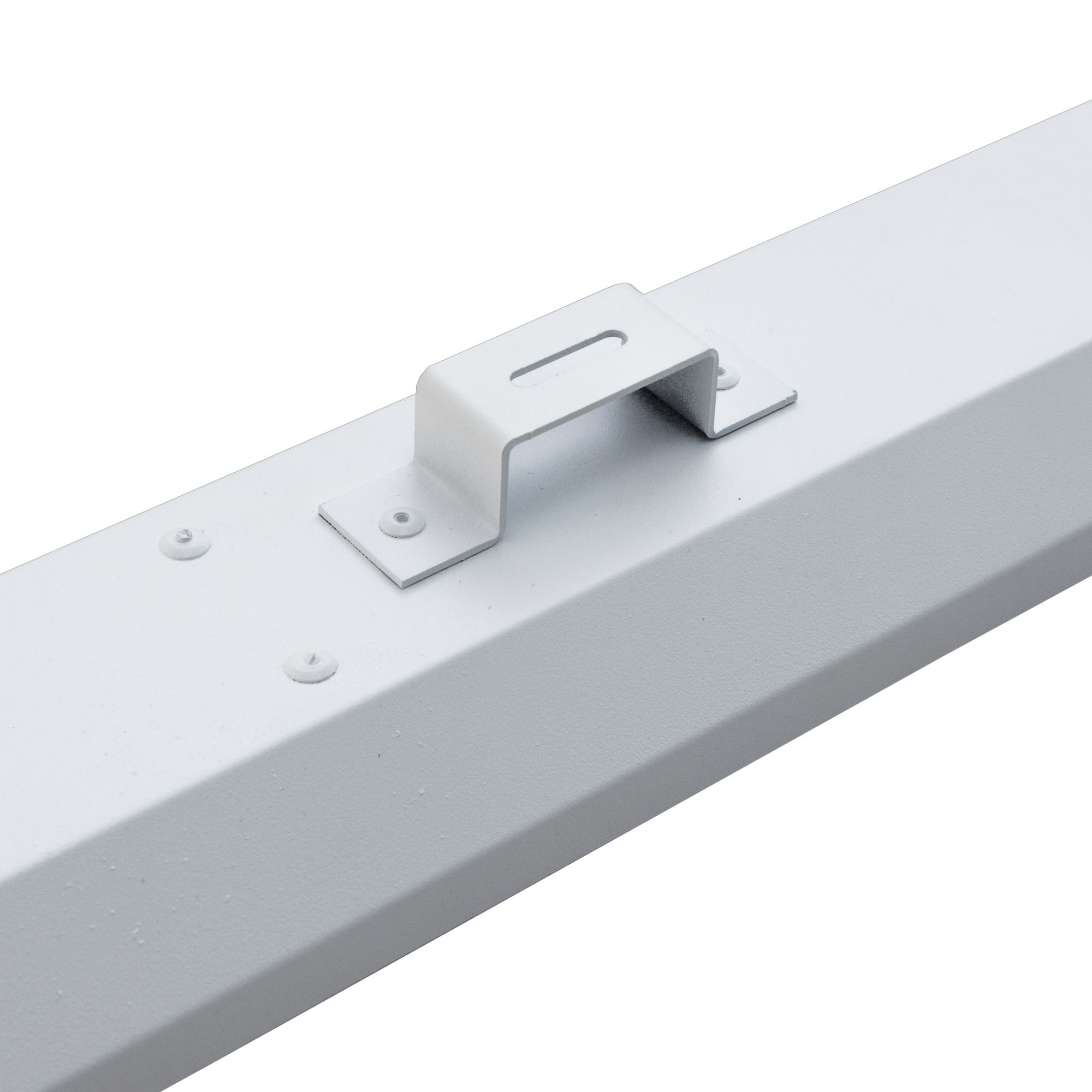

Mounting method:Surface mounting, Suspended, Surface mounting asymmetric, Pendant asymmetricProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LEDSuitable for light line configuration:Yes
Light outlet:DirectLight sharing:Symmetric, Asymmetric
Nominal voltage (V):220...240
Degree of protection (IP):IP23
Color temperature (K):4000, 6500, 3000, 2700, 5700Rated lifetime L80/B50 (h):80000
Dimming DALI:YesOptical system:CEW
Extra wide 90°
CRA
Retail asymetric optics
CHR
High rack
CW
Wide
Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
