MODUS VLO

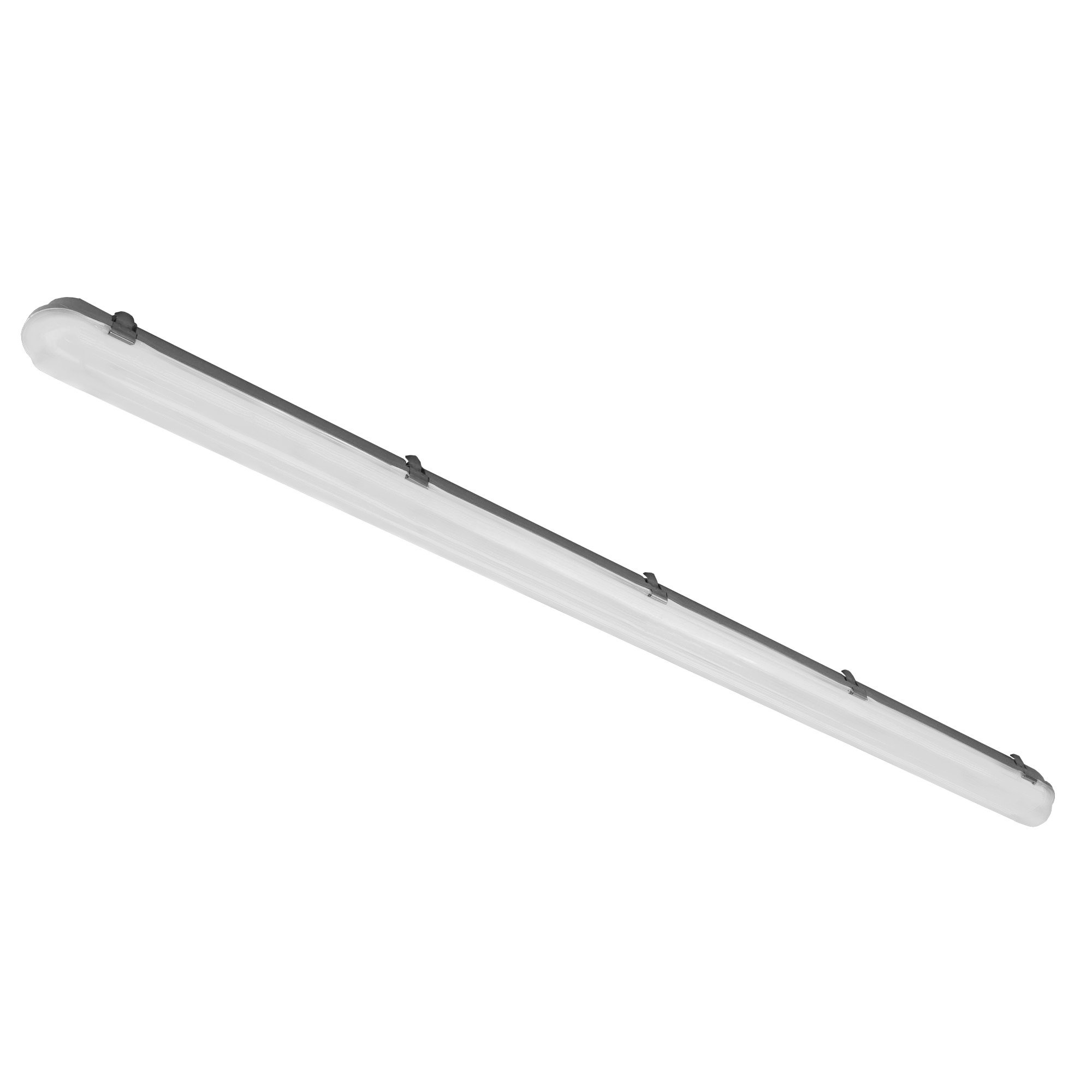

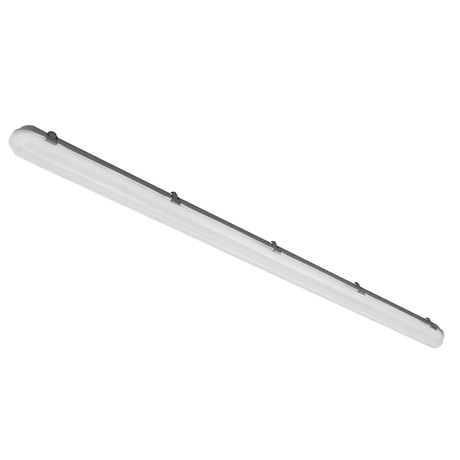

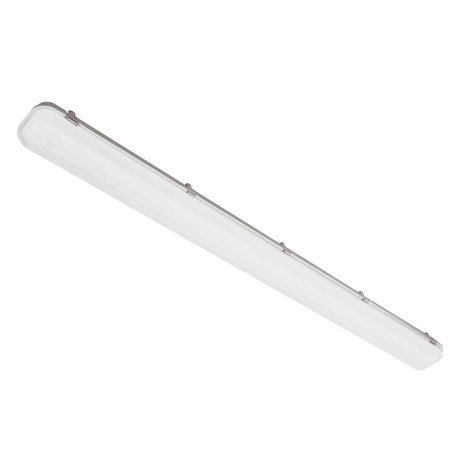

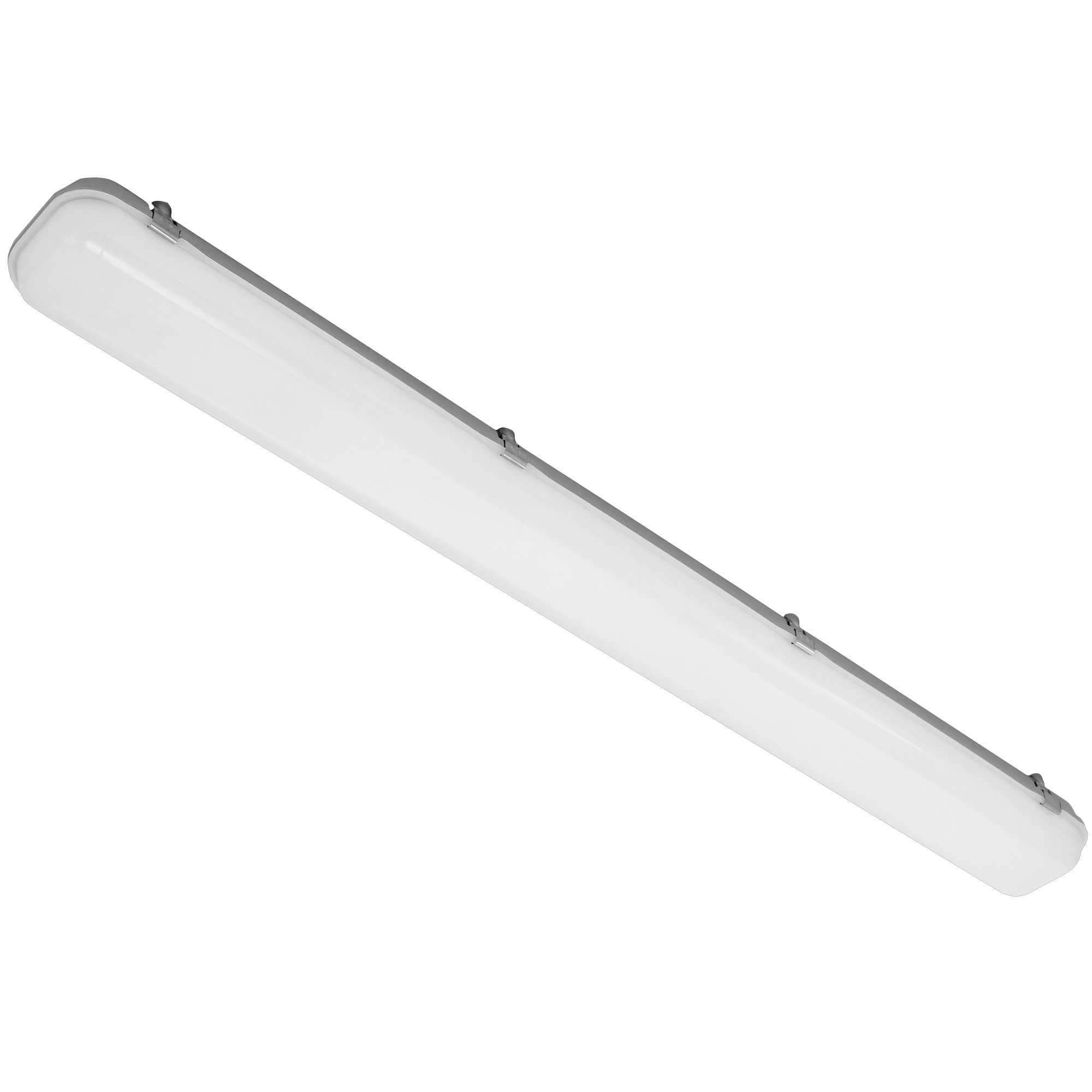

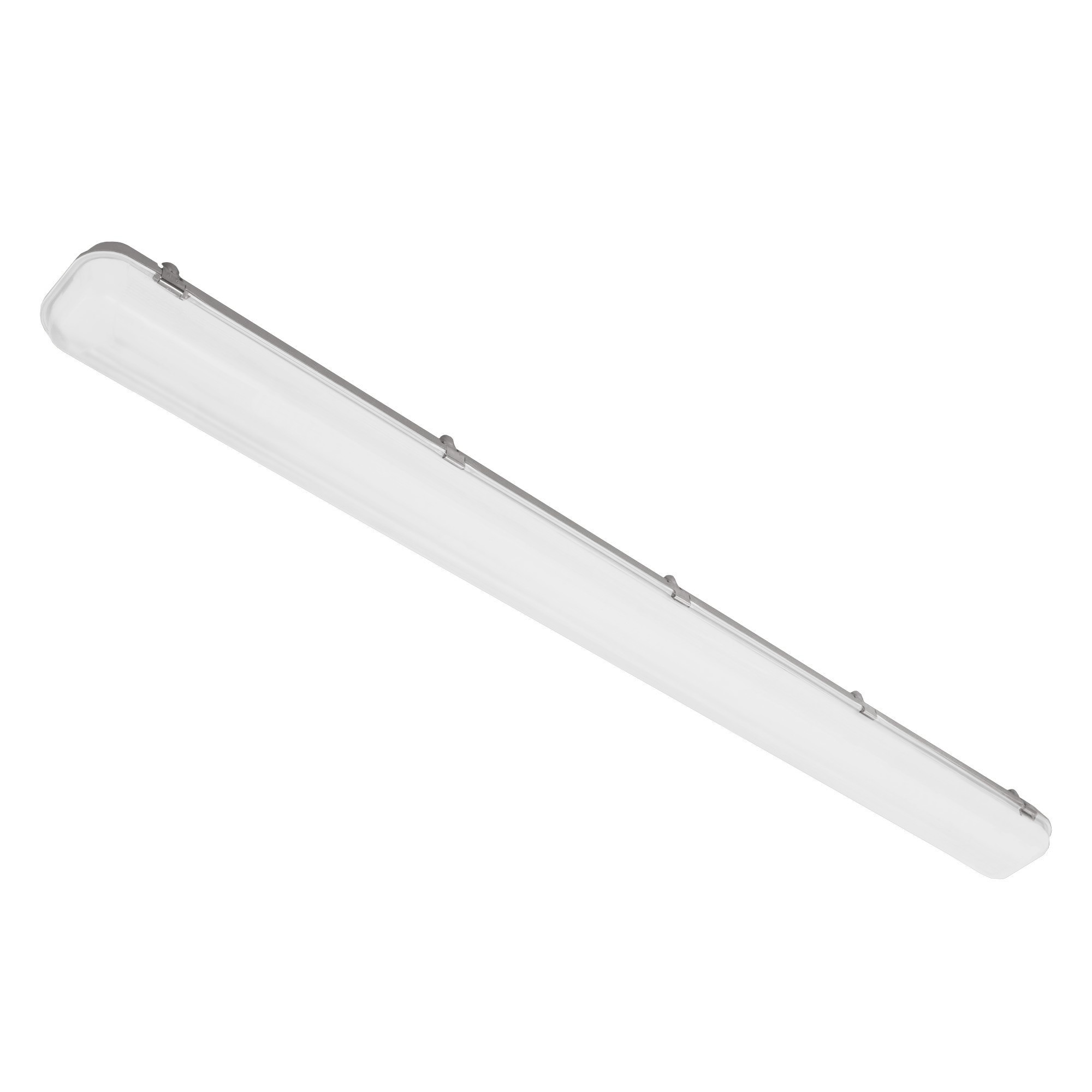

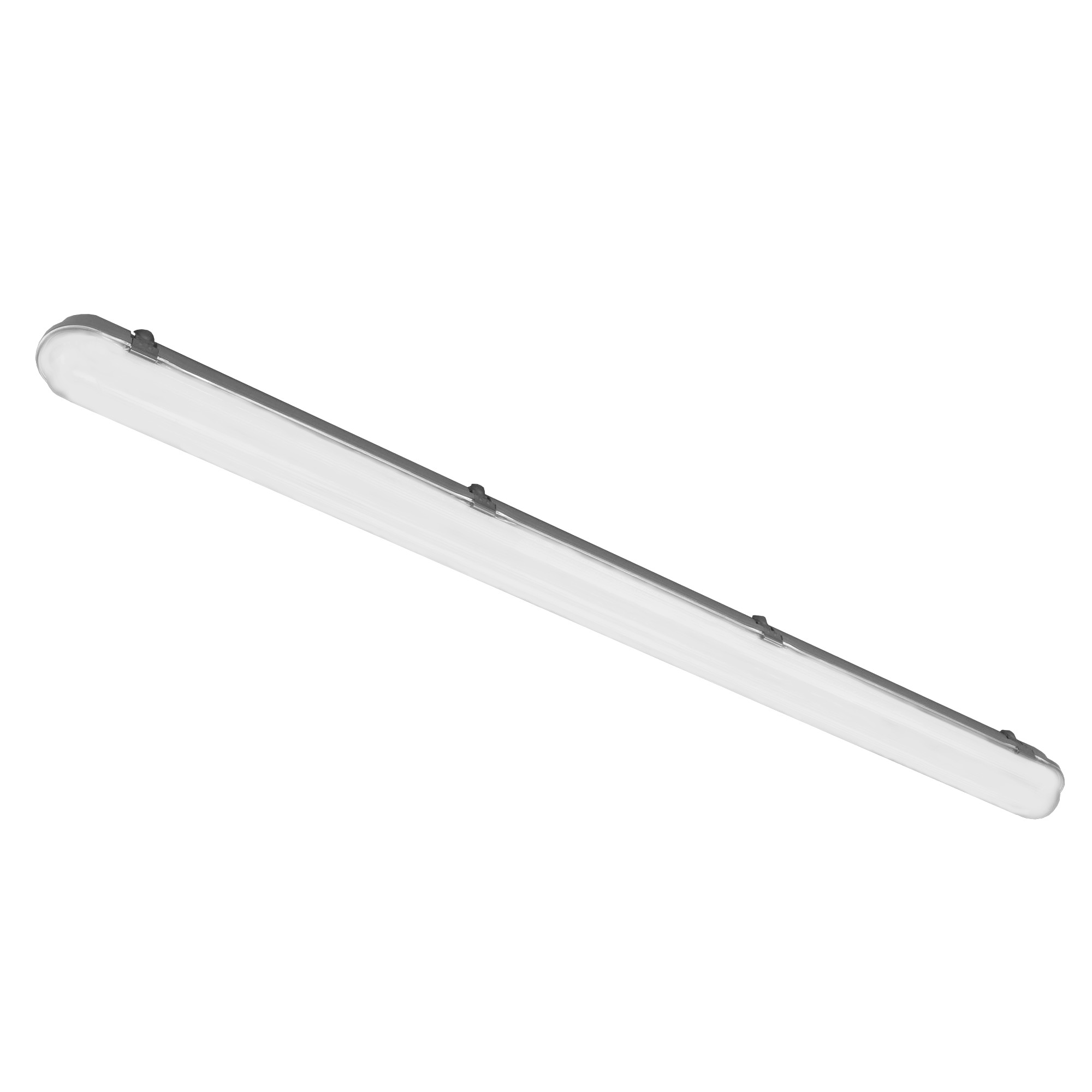

Industrial weatherproof luminaire

MODUS VLO
třída ochrany I.PNG
220-240 v.png
odolnost D.jpg
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Classical design IP65 plastic luminaire with opal cover.

Luminaire has IK08 mechanical resistance - complete polycarbonate body and optical part. Luminaire is delivered with non-corrosive metal holders.

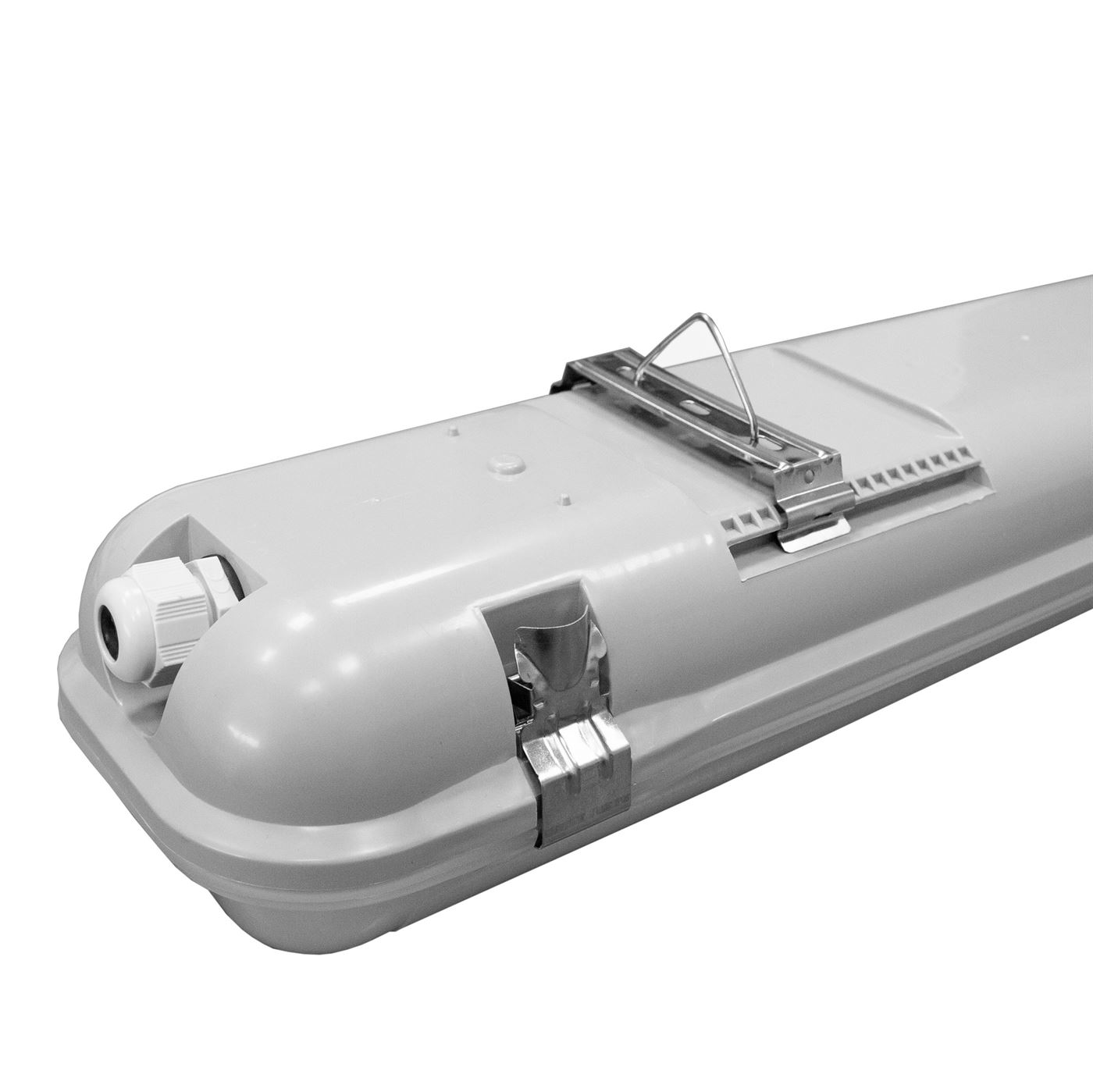

Installation is possible like pendant or surface.

Luminaire can be supplied with wireless Bluetooth control - more information here.

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:ABS or PC
Mounting method:Pendant, Surface mountingProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Light source type:LEDImpact strength:IK07
Nominal voltage (V):220...240Degree of protection (IP):IP65
Fire resistance D:Yes
Color temperature (K):4000, 6500, 3000, 5700
Rated lifetime L80/B50 (h):80000Rated ambient temperature (°C):0...+40
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:PCO
polycarbonate opal cover
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1300
13000

System power (W)

16
95
Product name
VLO10000L2W3DALI/P1
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 3000
Length (mm): 1570
Size version: L
VLO10000L2W4DALI/P1
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO10000L2W4ND
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO10000L2W4ND/NZ
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO10000L2W4ND/P
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO10000L2W4ND/P1/NZ
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO10000L2W5ND
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO10000L2W5ND/90
Effective luminous flux (lm): 8500
System power (W): 75
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO10000L2W6ND
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 6500
Length (mm): 1570
Size version: L
VLO1000S1N4ND
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Length (mm): 660
Size version: S
VLO1000S1W3NDSM/S12
Effective luminous flux (lm): 1300
Color temperature (K): 3000
Length (mm): 660
Size version: S
VLO1000S1W4DALI
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Length (mm): 660
Size version: S
VLO1000S1W4ND
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Length (mm): 660
Size version: S
VLO1000S1W4ND/NZ
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Length (mm): 660
Size version: S
VLO1000S1W4NDSM/S12
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Length (mm): 660
Size version: S
VLO1000S1W6ND
Effective luminous flux (lm): 1300
Color temperature (K): 6500
Length (mm): 660
Size version: S
VLO14000L2W4ND
Effective luminous flux (lm): 13000
System power (W): 95
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO14000L2W4ND/90
Effective luminous flux (lm): 11100
System power (W): 95
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO14000L2W4ND/P
Effective luminous flux (lm): 13000
System power (W): 95
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO14000L2W5ND
Effective luminous flux (lm): 13000
System power (W): 95
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO14000L2W6ND/90
Effective luminous flux (lm): 11100
System power (W): 95
Color temperature (K): 6500
Length (mm): 1570
Size version: L
VLO14000L2W6ND/90/P
Effective luminous flux (lm): 11100
System power (W): 95
Color temperature (K): 6500
Length (mm): 1570
Size version: L
VLO14000L2W6ND/P
Effective luminous flux (lm): 13000
System power (W): 95
Color temperature (K): 6500
Length (mm): 1570
Size version: L
VLO2500M1N2ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 2700
Length (mm): 1270
Size version: M
VLO2500M1N3DALI/P1
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO2500M1N3ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO2500M1N4DALI
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO2500M1N4DALI/P1
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO2500M1N4ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO2500M1N4ND/P
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO2500M1N5ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 5700
Length (mm): 1270
Size version: M
VLO2500M1N6ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 6500
Length (mm): 1270
Size version: M
VLO2500M1W3ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO2500M1W3ND/NZ
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO2500M1W4ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO2500M1W4ND/NZ
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO2500M1W4NDSM/P/S12
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO2500M1W4NDSM/S12
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO2500M1W5ND/NZ
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 5700
Length (mm): 1270
Size version: M
VLO2500S2W3ND
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 3000
Length (mm): 660
Size version: S
VLO2500S2W4DALI
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Length (mm): 660
Size version: S
VLO2500S2W4ND
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Length (mm): 660
Size version: S
VLO2500S2W4ND/NZ
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Length (mm): 660
Size version: S
VLO2500S2W5DALI
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 5700
Length (mm): 660
Size version: S
VLO3500L1N3ND
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 3000
Length (mm): 1570
Size version: L
VLO3500L1N4DALI
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1N4ND
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1N4ND/P
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1N4ND/PIR
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1N5ND
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO3500L1N5ND/90
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO3500L1N6ND
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 6500
Length (mm): 1570
Size version: L
VLO3500L1W4DALI
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1W4DALI/NZ3
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1W4ND
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1W4ND/NZ
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1W4ND/NZ3
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO3500L1W5ND/NZ
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO5000M2W3DALI
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO5000M2W3DALI/P1/S150
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO5000M2W3ND
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO5000M2W3ND/NZ
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO5000M2W3ND/P
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO5000M2W3NDSM/S12
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
Size version: M
VLO5000M2W4DALI
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W4DALI/NZ
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W4DALI/P1
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W4ND
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W4ND/NZ
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W4ND/NZ3
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W4ND/P
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W4ND/PIR
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W4NDSM/S12
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO5000M2W5DALI
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 5700
Length (mm): 1270
Size version: M
VLO5000M2W5ND
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 5700
Length (mm): 1270
Size version: M
VLO5000M2W5ND/NZ
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 5700
Length (mm): 1270
Size version: M
VLO5000M2W5ND/P
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 5700
Length (mm): 1270
Size version: M
VLO5000M2W6ND
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 6500
Length (mm): 1270
Size version: M
VLO7000L2W2ND
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 2700
Length (mm): 1570
Size version: L
VLO7000L2W2ND/NZ
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 2700
Length (mm): 1570
Size version: L
VLO7000L2W3DALI
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 3000
Length (mm): 1570
Size version: L
VLO7000L2W3DALI/P1
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 3000
Length (mm): 1570
Size version: L
VLO7000L2W3ND
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 3000
Length (mm): 1570
Size version: L
VLO7000L2W3ND/P
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 3000
Length (mm): 1570
Size version: L
VLO7000L2W3NDSMM/P1/S12
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 3000
Length (mm): 1570
Size version: L
VLO7000L2W4DALI
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4DALI/COR
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4DALI/P1
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4ND
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4ND/NZ
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4ND/NZ3
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4ND/P
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4ND/P1/NZ
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4ND/P2,5
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4NDSM/NZ/S12
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4NDSM/P/S12
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4NDSM/S12
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W4NDSMM/P1/S12
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 4000
Length (mm): 1570
Size version: L
VLO7000L2W5DALI
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO7000L2W5ND
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO7000L2W5ND/NZ
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO7000L2W5ND/P
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO7000L2W5ND/P2,5
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1570
Size version: L
VLO7000L2W6ND
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 6500
Length (mm): 1570
Size version: L
VLO7000L2W6ND/NZ
Effective luminous flux (lm): 7200
System power (W): 50
Color temperature (K): 6500
Length (mm): 1570
Size version: L
VLO7000M2W4ND
Effective luminous flux (lm): 7400
System power (W): 49
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO7000M2W4ND/NZ3
Effective luminous flux (lm): 7400
System power (W): 49
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO7000M2W4ND/P
Effective luminous flux (lm): 7400
System power (W): 49
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO7000M2W4NDMULTI
Effective luminous flux (lm): 8000
System power (W): 54
Color temperature (K): 4000
Length (mm): 1270
Size version: M
VLO7000M2W5ND
Effective luminous flux (lm): 7400
System power (W): 49
Color temperature (K): 5700
Length (mm): 1270
Size version: M
VLO7000M2W5ND/90
Effective luminous flux (lm): 6300
System power (W): 49
Color temperature (K): 5700
Length (mm): 1270
Size version: M
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
Pendant mounting of luminaires

Pendant mounting of luminaires

Wire suspensions sets

 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
