Product series New

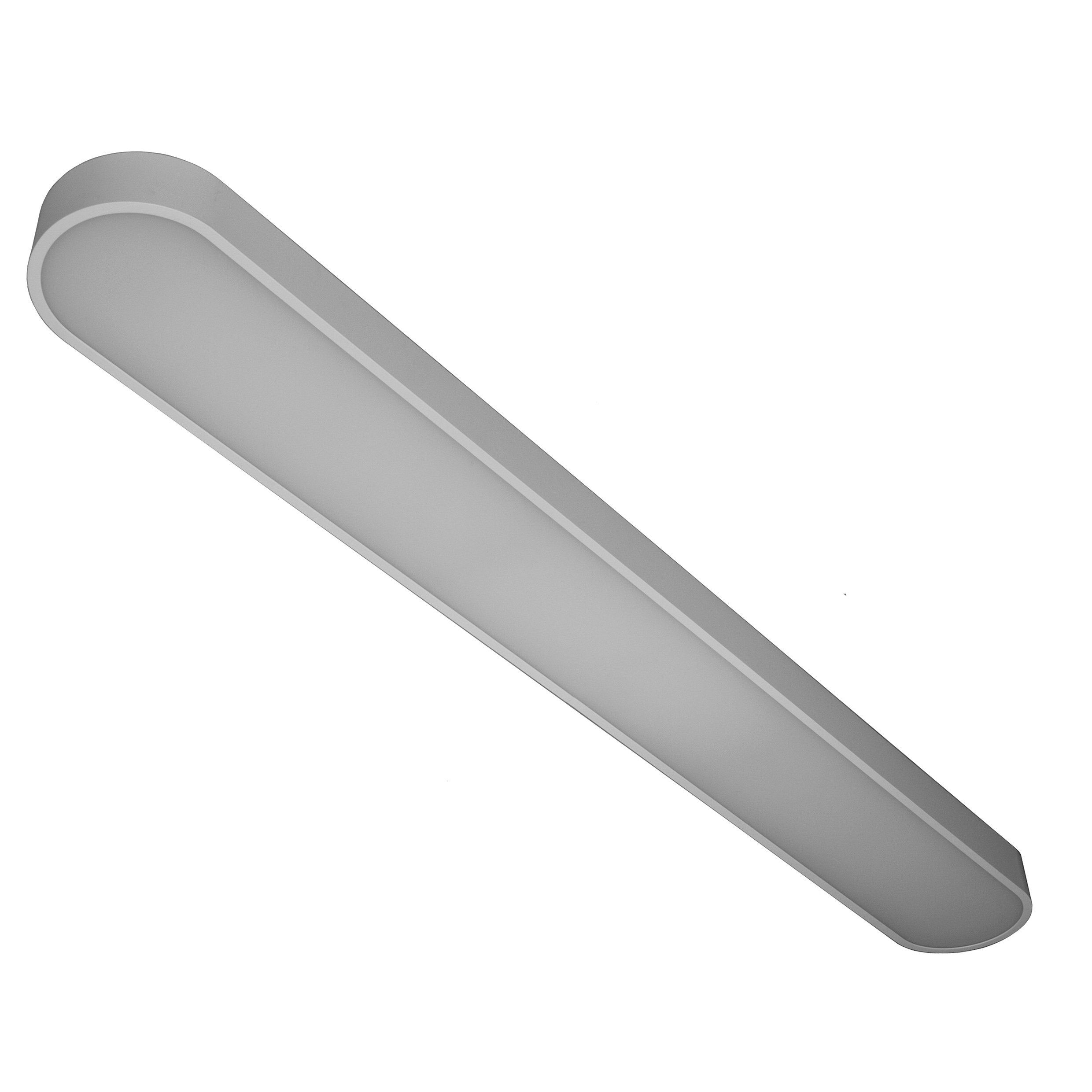

MODUS GEO O
Design oval luminaire
Standard price from:
On request
A completely new range of design luminaires. The body of the luminaire is made of solid aluminum - a luxurious look.
Thanks to our own technology for bending aluminum profiles, the luminaire can be supplied in various sizes and shapes.
The luminaire can be made in various colors. From classic white, through gray to, for example, dark brown.
INTO THE SHAPES with new and creative MODUS luminaires.
Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.
Other shape variants are:
GEO T - triangle
GEO R - rectangle
GEO P - ring
GEO S - square
Basic colors:
| Mounting method: | Pendant, Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | SO SATIN opal cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Length (mm)
Color housing
GEOOL5000SO4/9003/ND
Effective luminous flux (lm): 4600
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL5000SO4/9003/ND/90
Effective luminous flux (lm): 3950
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL5000SO4/9005/ND
Effective luminous flux (lm): 4600
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: Black
GEOOL7000SO4/9003/ND
Effective luminous flux (lm): 6600
System power (W): 51
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL7000SO4/9006/ND
Effective luminous flux (lm): 6600
System power (W): 51
Color temperature (K): 4000
Length (mm): 1700
Color housing: Silver
GEOOL8000SO4/9003/DALI
Effective luminous flux (lm): 8100
System power (W): 63
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL8000SO4/9003/ND
Effective luminous flux (lm): 8100
System power (W): 63
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL8000SO4/9005/ND
Effective luminous flux (lm): 8100
System power (W): 63
Color temperature (K): 4000
Length (mm): 1700
Color housing: Black
GEOOL8000SO4Z/9007/ND
Color temperature (K): 4000
Length (mm): 1700
Color housing: Grey
GEOOM6000SO4Z/9007/ND
Effective luminous flux (lm): 6750
System power (W): 53
Color temperature (K): 4000
Length (mm): 1200
Color housing: Grey
GEOOS3000SO3/9003/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 3000
Length (mm): 700
Color housing: White
GEOOS3000SO3/9006/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 3000
Length (mm): 700
Color housing: Silver
GEOOS3000SO4/9003/DALI
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: White
GEOOS3000SO4/9003/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: White
GEOOS3000SO4/9003/ND/90
Effective luminous flux (lm): 2400
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: White
GEOOS3000SO4/9006/DALI
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: Silver
GEOOS3000SO4/9006/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: Silver
GEOOS3000SOMIXW/355
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 2700...6500
Length (mm): 700
Color housing: Brown
Product page - PDF
CE declaration
LDT files
