Product series MODUS GEO O

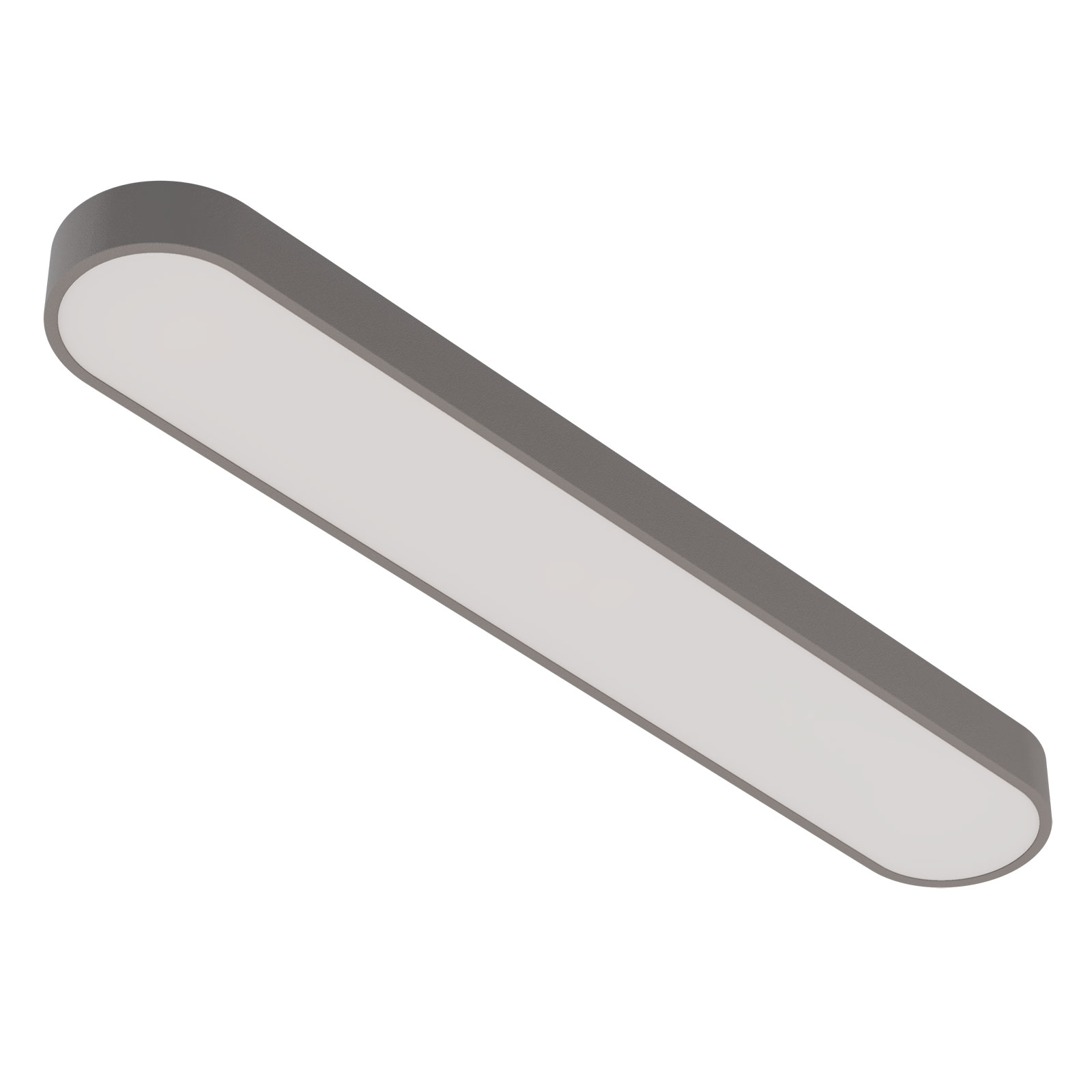

MODUS GEO6000, pendant oval 1200mm, LED 840, SATIN opal cover, grey RAL9007
Design oval luminaire
Code: GEOOM6000SO4Z/9007/ND
EAN: 8596099166793
Luminaire properties
| Product category: | Ceiling / wall luminaires | Effective luminous flux (lm): | 6750 | System power (W): | 53 | Luminaire efficacy (lm/W): | 127 |
| Degree of protection (IP): | IP20 | Color housing: | Grey | Suitable for suspended mounting: | Yes | Material housing: | Aluminium | Light source included: | Yes |
| Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 4000 | Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
Optical system
| Optical system: | SO | Light outlet: | Direct | Light sharing: | Symmetric | Material cover: | Plastic, opal |
Dimensions
| Length (mm): | 1200 | Height/depth (mm): | 72 | Weight (kg): | 6 |
Electrical values
| Protection class: | I | Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
| Control gear included: | Yes | Type of wiring: | Ending | No dim function: | Yes |
LDT files >
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Length (mm)
Color housing
GEOOL5000SO4/9003/ND
Effective luminous flux (lm): 4600
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL5000SO4/9003/ND/90
Effective luminous flux (lm): 3950
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL5000SO4/9005/ND
Effective luminous flux (lm): 4600
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: Black
GEOOL7000SO4/9003/ND
Effective luminous flux (lm): 6600
System power (W): 51
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL7000SO4/9006/ND
Effective luminous flux (lm): 6600
System power (W): 51
Color temperature (K): 4000
Length (mm): 1700
Color housing: Silver
GEOOL8000SO4/9003/DALI
Effective luminous flux (lm): 8100
System power (W): 63
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL8000SO4/9003/ND
Effective luminous flux (lm): 8100
System power (W): 63
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL8000SO4/9005/ND
Effective luminous flux (lm): 8100
System power (W): 63
Color temperature (K): 4000
Length (mm): 1700
Color housing: Black
GEOOL8000SO4Z/9007/ND
Color temperature (K): 4000
Length (mm): 1700
Color housing: Grey
GEOOM6000SO4Z/9007/ND
Effective luminous flux (lm): 6750
System power (W): 53
Color temperature (K): 4000
Length (mm): 1200
Color housing: Grey
GEOOS3000SO3/9003/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 3000
Length (mm): 700
Color housing: White
GEOOS3000SO3/9006/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 3000
Length (mm): 700
Color housing: Silver
GEOOS3000SO4/9003/DALI
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: White
GEOOS3000SO4/9003/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: White
GEOOS3000SO4/9003/ND/90
Effective luminous flux (lm): 2400
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: White
GEOOS3000SO4/9006/DALI
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: Silver
GEOOS3000SO4/9006/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: Silver
GEOOS3000SOMIXW/355
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 2700...6500
Length (mm): 700
Color housing: Brown
