Product series New
MODUS GEO P

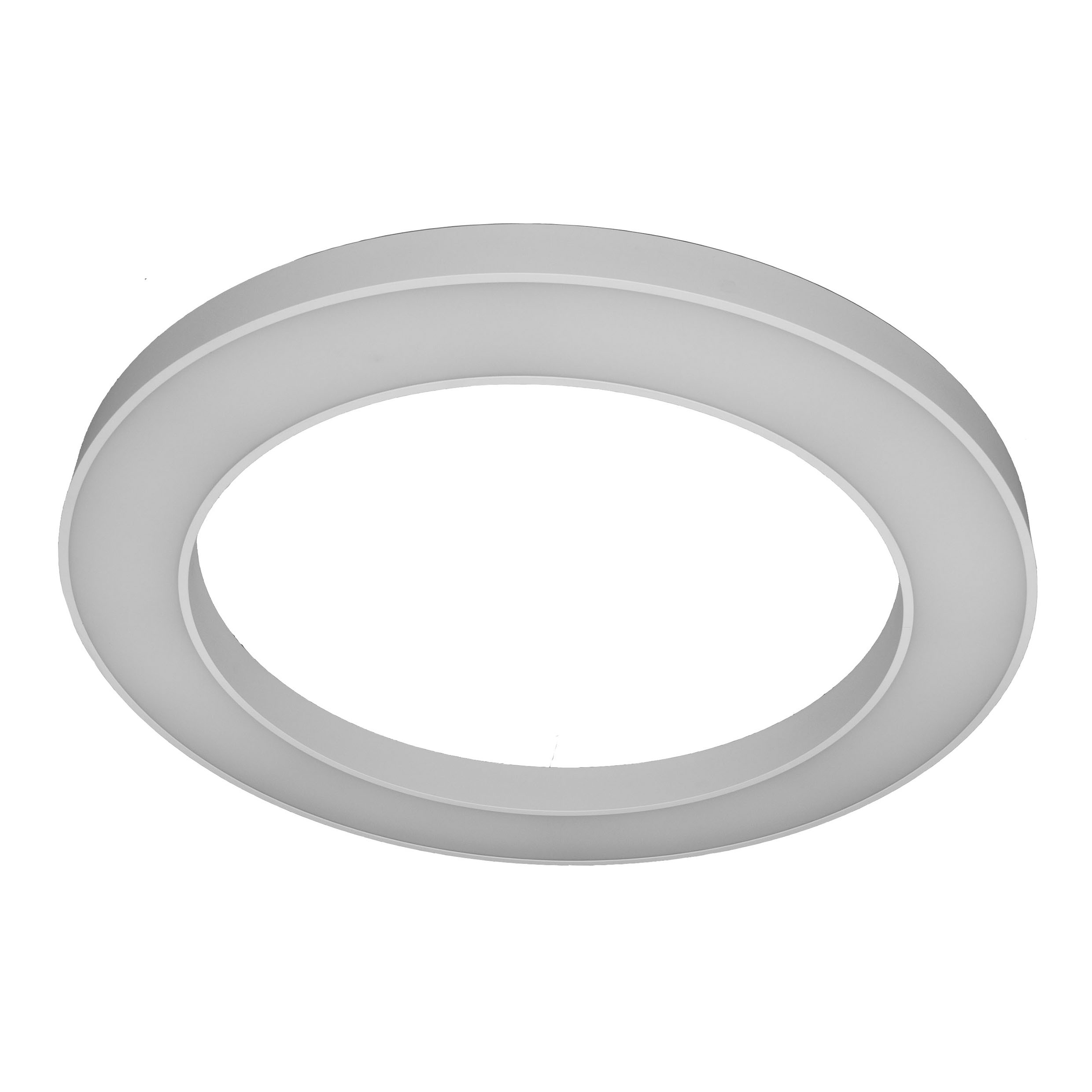

Design ring luminaire
Standard price from:
On request
A completely new range of design luminaires. The body of the luminaire is made of solid aluminum - a luxurious look.
Thanks to our own technology for bending aluminum profiles, the luminaire can be supplied in various sizes and shapes.
The luminaire can be made in various colors. From classic white, through gray to, for example, dark brown.
INTO THE SHAPES with new and creative MODUS luminaires.
Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.
Other shape variants are:
GEO T - triangle
GEO R - rectangle
GEO S - square
GEO O - oval
Basic colors:
| Mounting method: | Pendant, Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | SO SATIN opal cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Outer diameter (mm)
Color housing
GEOPL12000SO4Z/355/DALI
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SO4Z/9005/NDOK
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL12000SO4Z/9005/NDOK/5
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL12000SO4Z/9007/NDOK
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Grey
GEOPL12000SO4ZM/9005/DALIT
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SO4ZM/9005/NDOK
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL12000SOMIXWZ/9003
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SOMIXWZ/9003/BTC
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SOMIXWZ/9005/BTC
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: Black
GEOPL12000SOMIXWZD/9003
Effective luminous flux (lm): 12000
System power (W): 93
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SOMIXWZM/9003
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL12000SOMIXWZMD/9003
Effective luminous flux (lm): 12000
System power (W): 93
Color temperature (K): 2700...6500
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO3Z/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 3000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4Z/7016/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Anthracite
GEOPL8000SO4Z/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4Z/9003/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4Z/9005/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL8000SO4Z/9005/DALIBTC
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL8000SO4Z/9005/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: Black
GEOPL8000SO4Z/9010/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4ZM/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4ZM/9003/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
GEOPL8000SO4ZM/9005/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Outer diameter (mm): 1150
Color housing: White
