Product series New

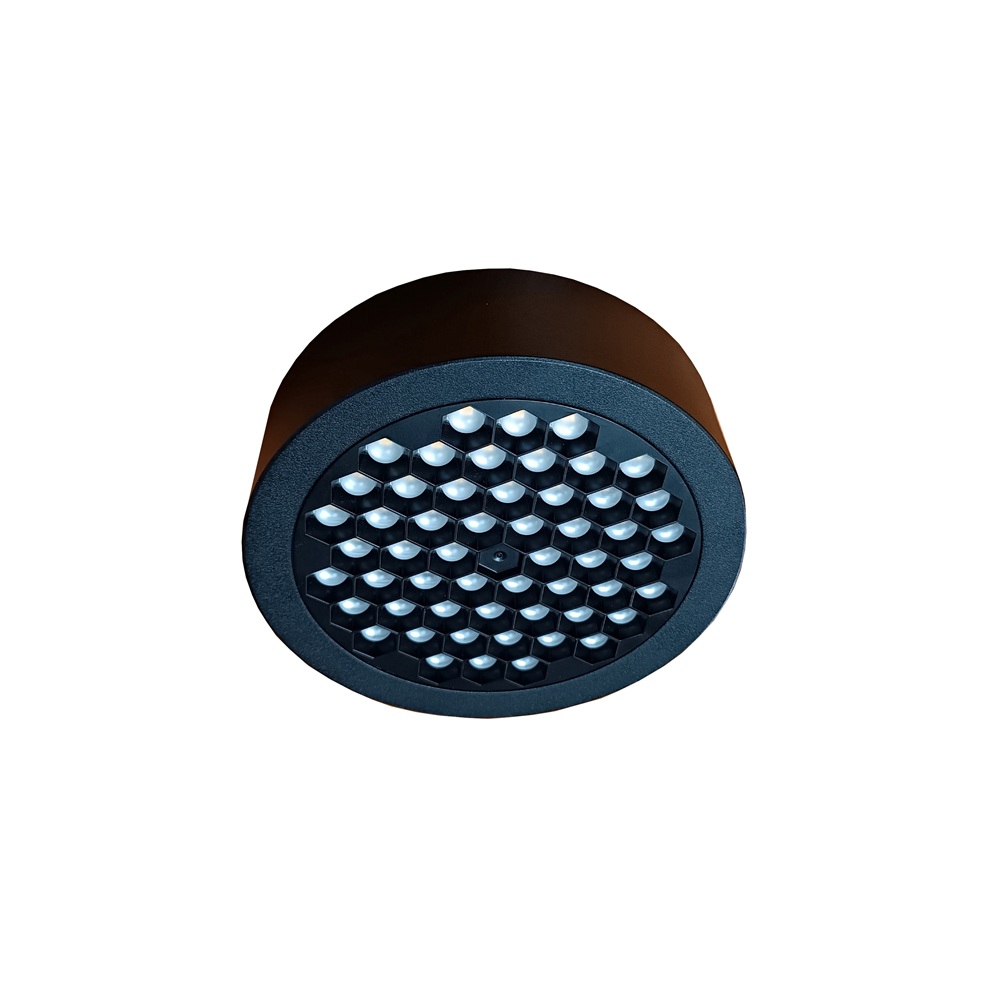

MODUS HEX

Kruhové svítidlo UGR<19

MODUS HEX
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Versions:

• HEX P – surface-mounted version
• HEX D – recessed (downlight) version

Optional PIR sensor:
Also available with an integrated PIR sensor (mounted in the centre of the luminaire):
• HEX...P…/PIR
• HEX...D…/PIR

Technical details:
• Luminous flux: 1000 lm / 1500 lm / 2000 lm
• Standard body colours: white or black (other colours on request)
• Louvre: white or black, matt finish
• Diameter: Ø 190 mm

This luminaire is an excellent choice for the illumination of corridors and similar spaces.

Protection class:IIWith movement sensor:No, Yes
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Light source type:LEDAnti-glare limiting UGR:19
Light outlet:DirectLight sharing:Symmetric
Nominal voltage (V):220...240Degree of protection (IP):IP20
Fit for monitor workplace:YesColor temperature (K):4000, 3000, 2700, 5700
Rated lifetime L80/B50 (h):80000Dimming DALI:Yes
Product category:DownlightMade in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1000
2200

System power (W)

7
15
Product name
HEX1000D4BB60/190/ND
Effective luminous flux (lm): 1100
System power (W): 7
Color temperature (K): 4000
HEX1000P4BB60/190/ND
Effective luminous flux (lm): 1100
System power (W): 7
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX1000P4CC60/190/ND
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX1500D3CC60/190/DALI
Effective luminous flux (lm): 1400
Color temperature (K): 3000
HEX1500D4BB60/190/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
HEX1500D4BB60/190/NDPIR
Effective luminous flux (lm): 1500
Color temperature (K): 4000
HEX1500P3CC60/190/DALI
Effective luminous flux (lm): 1400
Color temperature (K): 3000
Suitable for surface mounting: Yes
HEX1500P4BC60/190/ND
Effective luminous flux (lm): 1400
Color temperature (K): 4000
Suitable for surface mounting: Yes
HEX2000D4BB60/190/DALI
Effective luminous flux (lm): 2200
System power (W): 15
HEX2000D4BB60/190/ND
Effective luminous flux (lm): 2200
System power (W): 15
Color temperature (K): 4000
HEX2000P3BC60/190/DALI
Effective luminous flux (lm): 2100
System power (W): 15
HEX2000P4CC60/190/ND
Effective luminous flux (lm): 2100
System power (W): 15
Color temperature (K): 4000
Suitable for surface mounting: Yes
Show all versions
