Product series ECONOMIC

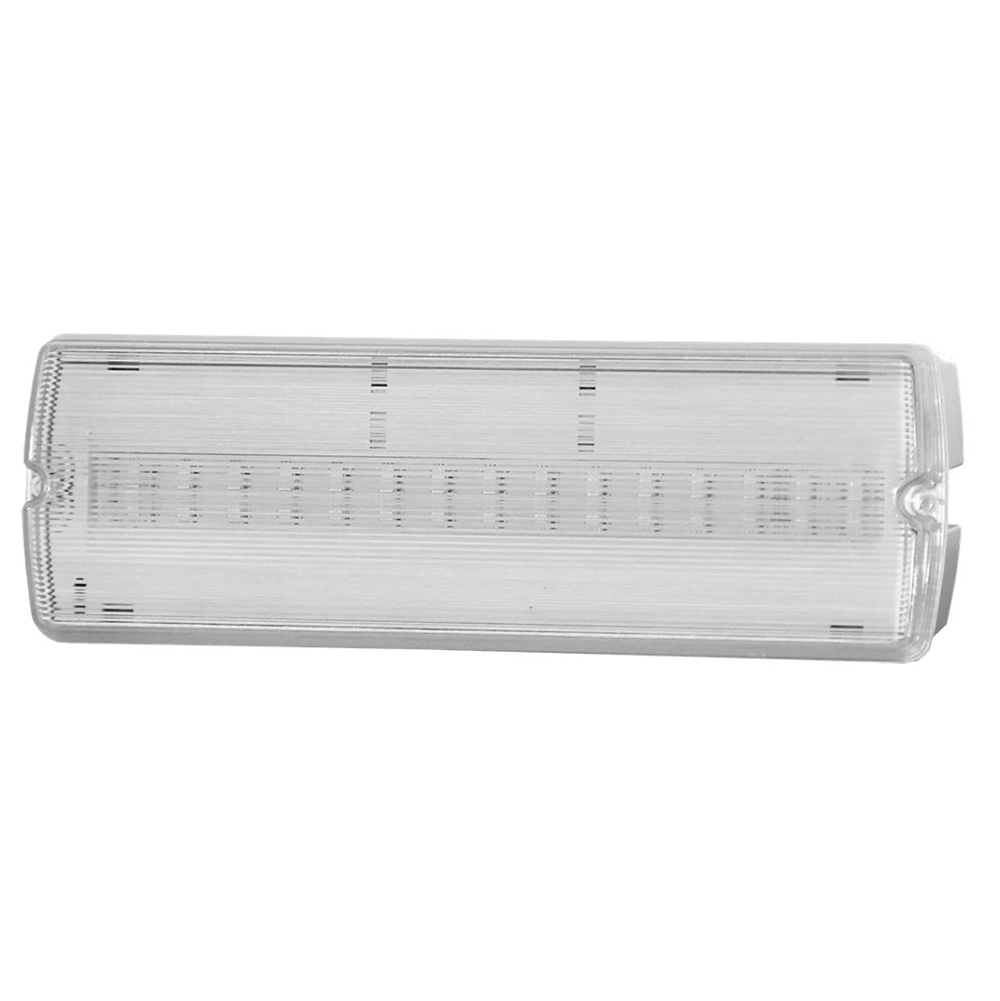

ECONOMIC LED, SA, IP65, 3 h
Code: OZN/ECL/1W/C/3/SA/X/CL
EAN: 5901821238588
Luminaire properties
| Product category: | Emergency luminaires | Effective luminous flux (lm): | 110 | Degree of protection (IP): | IP65 | Mounting method: | Ceiling surface mounting |
| Color housing: | White | Light source included: | Yes |
Light source
| Light source type: | LED |
Dimensions
| Length (mm): | 350 | Width (mm): | 120 | Height/depth (mm): | 75 | Weight (kg): | 1 |
Electrical values
| Protection class: | II | Voltage type: | AC | Power supply system: | Individual baterry | Battery quality: | NiCd |
| Nominal voltage (V): | 220...240 | Monitoring equipment: | None | Nominal operation time (h): | 3 |
Optical system
| Function: | Escape route lighting/signage | Recognition distance (m): | 20 | Pictogram included: | Yes |
LDT data does not exist for this item
